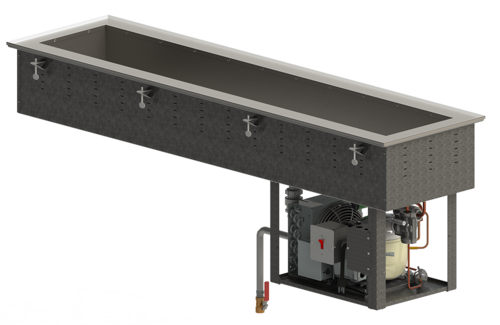

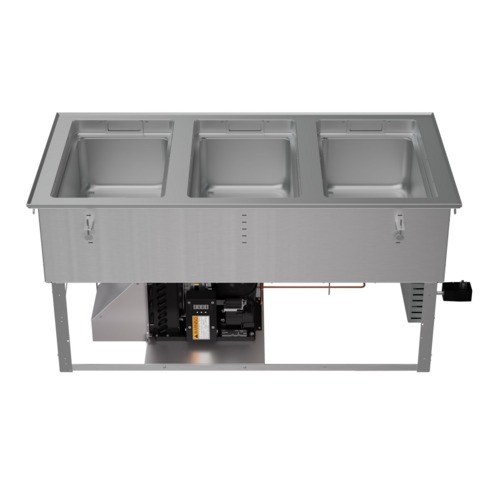

Vollrath Standard Refrigerated Short-Side Drop-In Cold Pan, 3-Well, Full-Size Pan Capacity, Self-Contained, 120V

SKU: FC-4CSP-03120-R
$5,603.76
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath Standard Refrigerated Short-Side Drop-In Cold Pan, 3-Well, Full-Size Pan Capacity, Self-Contained, 120V

Top-Mount Installation, R290 Refrigerant, Galvanized Steel Exterior

Keep chilled ingredients organized and within easy reach with a 3-well drop-in cold pan built for top-mount installation and full-size pan service.

  • 3-well refrigerated cold pan designed for top-mount, drop-in installation.
  • Accommodates standard full-size 12" x 20" pans up to 6" deep with adapter bars.
  • Self-contained R290 refrigeration with a 1/5 HP compressor and 120V power.
  • 300-series stainless steel fabricated well with insulated construction for efficient cooling.
  • Includes a 1" integral drain, under-drip-edge gasket, and full-perimeter drip edge.
  • Remote on/off switch, 6-foot power cord, and NEMA 5-15P plug are included.

Top-Mount Drop-In Design

Engineered for top-mount installation with standard mounting clips included for counters up to 3 inches thick.

Three-Well Capacity

Provides refrigerated storage for three pan wells in a compact short-side layout.

Full-Size Pan Compatibility

Accommodates standard 12" x 20" pans up to 6 inches deep when used with adapter bars.

Self-Contained R290 Refrigeration

Uses R290 refrigerant and a suspended condensing unit below the well for self-contained operation.

Stainless Steel Fabricated Well

Flange, fabricated well, and optional false bottoms are made from 300-series stainless steel.

Insulated Well Assembly

Foamed-in-place polyurethane insulation helps improve efficiency and overall cooling performance.

Integral Drain and Drip Control

Includes a 1-inch integral drain, under-drip-edge gasket, and full-perimeter drip edge to help contain spills and condensation.

Galvanized Steel Exterior Housing

Built with a 20-gauge galvanized steel exterior housing for the cabinet body.

Remote Switch and Power Cord

Remote on/off switch with a 4-foot cord can be mounted to a cabinet side, and a 6-foot power cord with plug is included.

Type Cold Pan
Style Short-Side
Installation Type Drop-In
Refrigeration Type Self-Contained
Pan Capacity 3 Pans
Pan Size Full-Size (12" x 20")
Material Stainless Steel
Finish Galvanized Steel
Controls Remote On/Off Switch
Voltage 120 Volts
Hertz 60 Hz
Amps 3.2 Amps
Plug Type NEMA 5-15P
Cord Length 6 Feet
Horsepower 1/5 HP
Refrigerant Type R290
Drain Connection Size 1 Inch
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Weight 225 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship, plus 4 additional years on the compressor.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates standard full-size 12" x 20" pans up to 6 inches deep when used with adapter bars.
Yes. The unit uses self-contained refrigeration with the condensing unit suspended below the well.
It uses R290 refrigerant.
The unit needs zero side clearance, 3 inches at the condenser air inlet and outlet, and 1.5 inches at the bottom. At least 80 square inches of fresh-air intake and exhaust are also required.
It comes with the standard warranty against defects in materials and workmanship, plus an additional four years on the compressor.
