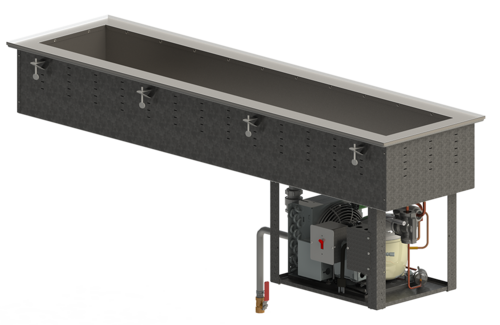

Vollrath Standard Refrigerated Short-Side Drop-In Cold Pan, 2-Well, Self-Contained, 120V

Top-Mount Installation, Fits Standard 12 x 20 x 6 Inch Pans, R290 Refrigerant

This 2-well drop-in cold pan combines stainless steel food-contact surfaces, self-contained R290 refrigeration, and included installation hardware for dependable buffet cooling.

  • 2-well short-side refrigerated cold pan designed for top-mount drop-in installation.
  • Self-contained R290 refrigeration system with insulated well for efficient holding performance.
  • 300-series stainless steel fabricated well and 20-gauge galvanized steel exterior housing.
  • Accommodates standard 12 x 20 x 6 inch pans when used with adapter bars.
  • Includes under-drip-edge gasket, standard mounting clips, remote on/off switch, and plug-in power cord.
  • Features a standard 1-inch integral drain and full-perimeter drip edge to help contain spills and condensation.

Top-Mount Drop-In Design

Designed for top-mount installation in a countertop opening for a clean buffet or serving-line presentation.

Two-Well Short-Side Layout

Provides a 2-pan configuration with short-side access for food bars and cold serving lines.

300-Series Stainless Steel Well Components

The flange, fabricated well, and optional false bottoms are made from 300-series stainless steel for durability in foodservice use.

Self-Contained R290 Refrigeration

Uses R290 refrigerant and a condensing unit suspended below the well for independent refrigeration.

Insulated Inner Well

Foamed-in-place polyurethane insulation helps improve cooling efficiency and performance.

Standard Pan Compatibility

Accommodates standard 12 x 20 x 6 inch pans when used with adapter bars.

Integral Drain and Drip Edge

Includes a standard 1-inch integral drain and a full-perimeter drip edge to help manage spills and condensation.

Included Installation and Power Accessories

Includes under-drip-edge gasket, standard mounting clips, a remote on/off switch with 4-foot cord, and a 6-foot power cord with plug.

Durable Exterior Housing

Built with a 20-gauge galvanized steel exterior housing for lasting service.

Type Refrigerated Cold Pan
Style Short-Side
Installation Type Drop-In
Refrigeration Type Self-Contained
Pan Capacity 2 Full-Size Pans
Pan Size Full-Size (12 x 20 Inches)
Controls Remote On/Off Switch
Material Galvanized Steel
Interior Finish 300-Series Stainless Steel
Refrigerant Type R290
Horsepower 1/5 HP
Voltage 120 Volts
Amps 3.2 Amps
Hertz 60 Hz
Plug Type NEMA 5-15P
Cord Length 6 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship, plus an additional 4 years on the compressor.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates standard 12 x 20 x 6 inch pans when used with adapter bars.
Yes. It uses self-contained refrigeration with the condensing unit suspended below the well.
The unit requires 120V, 60Hz power at 3.2 amps and uses a NEMA 5-15P plug with a 6-foot cord.
The flange, fabricated well, and optional false bottoms are 300-series stainless steel, and the exterior housing is 20-gauge galvanized steel.
It includes an under-drip-edge gasket, standard mounting clips, a remote on/off switch with a 4-foot cord, and a 6-foot power cord with plug.
