Vollrath

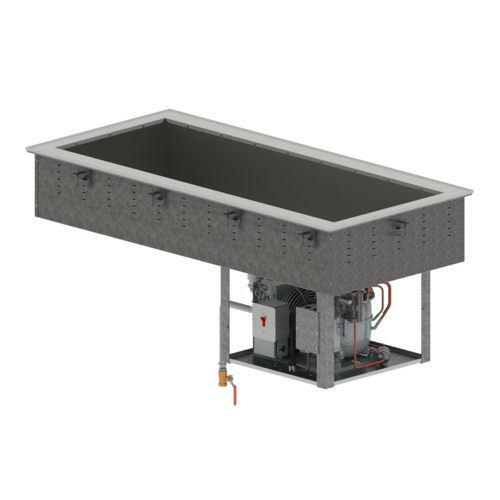

Vollrath 5-Well Full-Size Drop-In Refrigerated Cold Pan, Top-Mount, Self-Contained, 120V

SKU: FC-4CP-05120-R
$5,085.96
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath 5-Well Full-Size Drop-In Refrigerated Cold Pan, Top-Mount, Self-Contained, 120V

Flanged fabricated well with remote on/off switch, integral drain, and galvanized steel exterior housing.

Keep chilled ingredients ready at the serving line with a durable 5-well drop-in cold pan that combines self-contained refrigeration and easy top-mount installation.

  • Holds five full-size pans, making it ideal for salad bars, buffets, and cold ingredient stations.
  • Top-mount drop-in design with flanged construction simplifies installation into compatible cutouts.
  • Self-contained refrigeration with R290 refrigerant helps maintain chilled holding temperatures.
  • Durable 20-gauge galvanized steel exterior housing is built for commercial foodservice use.
  • Includes a 1-inch integral drain, under-drip-edge gasket, and remote on/off switch with a 4-foot cord.

Overall Dimensions:

26.0"W x 68.0"D

Product Weight:

254.0 lb

Top-Mount Drop-In Design

Designed for straightforward installation in food bars and serving lines.

Five Full-Size Well Capacity

Accommodates standard full-size pans up to 6 inches deep.

Self-Contained R290 Refrigeration

Built-in refrigeration system uses R290 refrigerant for chilled holding without a remote system.

Flanged Fabricated Well

Flanged construction supports a secure top-mount fit and finished look.

Galvanized Steel Exterior Housing

20-gauge galvanized steel exterior adds durability for high-use commercial environments.

Integral Drain and Gasket

Includes a 1-inch integral drain and under-drip-edge gasket to help manage moisture.

Remote On/Off Switch

Remote switch with a 4-foot cord provides convenient operation.

Type Refrigerated Cold Pan
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 5 Wells
Pan Size Full-Size (12 Inches x 20 Inches)
Material Galvanized Steel
Finish Galvanized Steel Outer Liner
Refrigerant Type R290
Horsepower 1/3 HP
Voltage 120 Volts
Amps 5.2 Amps
Plug Type NEMA 5-15P
Cord Length 4 Feet
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 26 Inches
Shipping Depth 68 Inches
Shipping Weight 254 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates standard full-size pans up to 6 inches deep.
Yes. The unit uses self-contained refrigeration with R290 refrigerant.
It is designed for drop-in, top-mount installation.
It operates on 120V, draws 5.2 amps, and includes a NEMA 5-15P plug with a 4-foot cord.
Yes. The unit includes a 1-inch integral drain.
Optional 300-series stainless steel false bottoms are available.
