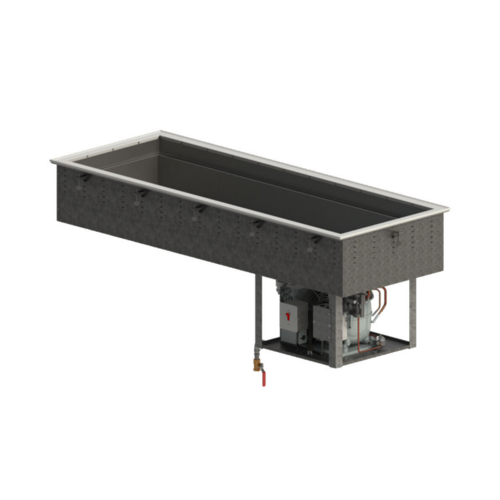

Vollrath NSF7 5-Well Self-Contained Refrigerated Cold-Pan Drop-In

Top-Mount Installation, Full-Size Pans, R290 Refrigerant

This top-mount 5-well cold pan combines self-contained R290 refrigeration, stainless-steel food-contact components, and a durable galvanized exterior for reliable buffet display cooling.

  • Five-well drop-in cold pan for buffet, salad bar, and serving line applications.
  • Self-contained refrigeration with R290 refrigerant and a 1/3 HP compressor.
  • Top-mount installation with included mounting clips and under-drip-edge gasket.
  • Accepts standard full-size 12" x 20" pans up to 6" deep with adapter bars.
  • Durable 20-gauge galvanized steel exterior with insulated stainless-steel well.
  • 1" integral drain and remote on/off switch help simplify operation and cleanup.

Overall Dimensions:

26.0"W x 68.0"D x 23.93"H

Product Weight:

180.0 lb

Top-Mount Drop-In Design

Designed for top-mount installation and includes standard mounting clips for easy counter installation.

Five-Well Capacity

Holds five full-size food pans for chilled presentation on buffet and serving lines.

300-Series Stainless Steel Food Zone

Flange, fabricated well, and optional false bottoms are 300-series stainless steel for durability and food-service use.

Self-Contained R290 Refrigeration

Uses R290 refrigerant and a suspended condensing unit for efficient refrigerated performance.

Insulated Well Assembly

Foamed-in-place polyurethane insulation helps improve holding performance and energy efficiency.

Durable Galvanized Housing

The exterior housing is made from 20-gauge galvanized steel for long-lasting countertop service.

Built-In Drain and Gasket

Includes a 1" integral drain and under-drip-edge gasket to help manage moisture and spills.

Convenient Controls and Power Cord

Includes a remote on/off switch with a 4 ft. cord and a 6 ft. cord with plug.

Type Cold Pan
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 5 Full-Size Pans
Pan Size Full-Size (12" x 20")
Controls Remote On/Off Switch
Material Galvanized Steel
Interior Finish 300-Series Stainless Steel
Finish Galvanized Steel
Refrigerant Type R290
Horsepower 1/3 HP
Voltage 120 Volts
Amps 5.2 Amps
Hertz 60 Hz
Plug Type NEMA 5-15P
Cord Length 6 Feet
Shipping Width 26 Inches
Shipping Depth 68 Inches
Shipping Height 24 Inches
Shipping Weight 180 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship, plus an additional four years on the compressor.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates standard full-size 12" x 20" pans up to 6" deep when used with adapter bars.
It uses self-contained refrigeration with R290 refrigerant and a suspended condensing unit.
The unit is rated for 120V/60Hz, draws 5.2 amps, and includes a NEMA 5-15P plug.
Yes, it is designed for top-mount drop-in installation and includes standard mounting clips.
Yes, it includes a 1" integral drain.
No. It is intended for indoor use only in ambient temperatures below 86°F (30°C).
