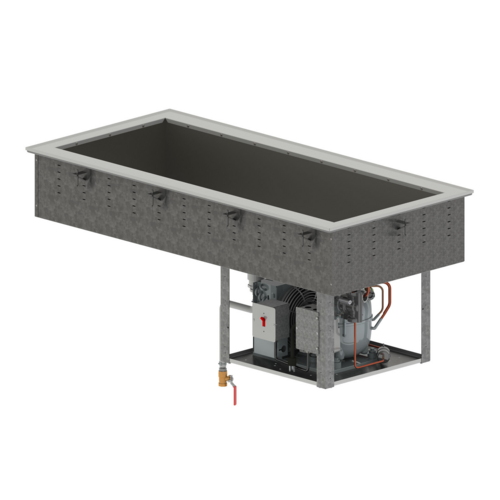

Vollrath 4-Well Full-Size Drop-In Top-Mount Refrigerated Cold Pan, Self-Contained, 120V

Self-Contained R290 System, 1/3 HP, NEMA 5-15P

Keep chilled ingredients close at hand with a 4-well, self-contained drop-in cold pan built for standard full-size pans and easy top-mount installation.

  • Holds four standard full-size pans and accommodates pans up to 6 inches deep.
  • Self-contained refrigeration with R290 refrigerant simplifies installation and operation.
  • Top-mount, flanged drop-in design fits neatly into buffet and serving line openings.
  • 20-gauge galvanized steel exterior housing with included under-drip-edge gasket.
  • Remote on/off switch with 4-ft cord, 120V/5.2A operation, and NEMA 5-15P plug.
  • Integral 1-inch drain and fabricated well help support easier cleaning and maintenance.
  • NSF and cULus listed and made in the USA.

Overall Dimensions:

26.0"W

Product Weight:

195.0 lb

4-Well Full-Size Configuration

Designed to hold four standard full-size pans and accept pans up to 6 inches deep.

Top-Mount Drop-In Installation

Flanged top-mount design creates a clean built-in installation for buffet and serving lines.

Self-Contained Refrigeration System

Built-in refrigeration uses R290 refrigerant and a 1/3 HP compressor for simplified installation.

Fabricated Well With Optional False Bottoms

Fabricated well construction supports optional 300-series stainless steel false bottoms.

Integral Drain

Includes a 1-inch integral drain to help with cleaning and drainage.

Durable Exterior Housing

20-gauge galvanized steel exterior housing is built for commercial foodservice use.

Under-Drip-Edge Gasket Included

Helps support a tighter fit and cleaner installation at the serving line.

Remote On/Off Switch

Includes a remote on/off switch with a 4-ft cord for convenient control.

Type Refrigerated Cold Pan
Style Self-Contained Refrigeration
Installation Type Drop-In
Layout Straight
Pan Size Full-Size (12" x 20")
Pan Capacity 4
Material Galvanized Steel
Voltage 120 Volts
Amps 5.2 Amps
Plug Type NEMA 5-15P
Controls Remote On/Off Switch
Drain Connection Size 1 Inch
Refrigerant Type R290
Horsepower 1/3 HP
Cord Length 4 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 26 Inches
Shipping Weight 195 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 4 wells.
It accommodates standard full-size pans up to 6 inches deep.
It operates on 120V and 5.2 amps and includes a NEMA 5-15P plug with a 4-ft cord.
Yes. The unit uses self-contained refrigeration.
It uses R290 refrigerant.
Yes. It includes a 1-inch integral drain.
