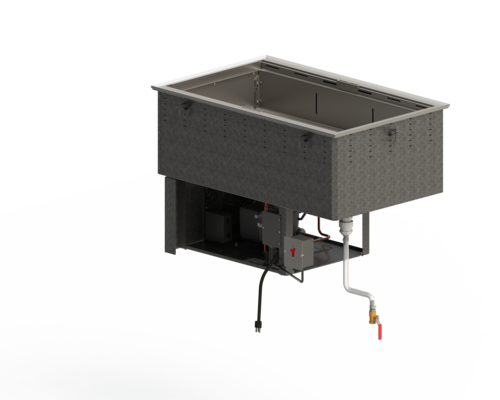

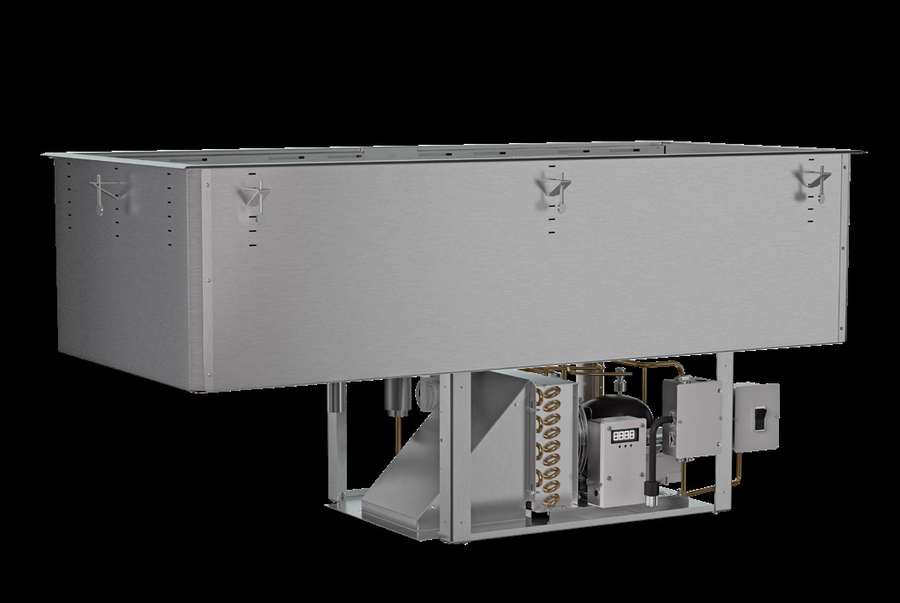

Vollrath 4-Pan Forced-Air Cold Pan Drop-In with Flat Flange, 120V

300-Series Stainless Steel, 1/3 HP Compressor, Remote On/Off Switch

Keep cold foods consistently chilled and attractively displayed with a durable 4-pan forced-air drop-in designed for efficient refrigerated service.

  • 4-pan forced-air cold pan drop-in with a flat flange for refrigerated buffet and prep-line applications.
  • Dual-forced-air cooling helps deliver even, consistent chilling across the pan well.
  • Durable 300-series stainless steel top and well with galvanized steel exterior housing.
  • Remote on/off switch can be mounted on any side for operator convenience.
  • R290 refrigerant, polyurethane insulation, and factory-set cold control support efficient operation.
  • Accepts food pans up to 6 inches deep and includes a 3/4-inch integral drain.

Dual-Forced-Air Cooling

Air flows across two sides to help maintain even, consistent chilling.

Flat Flange Drop-In Design

Designed for drop-in installation with a flat flange and shallow recess for attractive food presentation.

Remote On/Off Switch

Simple switch can be custom mounted to any side for convenient operation.

Durable Stainless Construction

Top and well are built from 18-gauge, 300-series stainless steel with a galvanized steel exterior housing.

Efficient Refrigeration System

Uses R290 refrigerant, foamed-in-place polyurethane insulation, and a factory-set cold control with mini-defrost on each compressor cycle.

Pan Capacity and Drainage

Accepts pans up to 6 inches deep and includes a standard 3/4-inch integral drain.

Installation Requirements

Requires adapter bars or templates and customer-supplied intake and discharge louvers for adequate ventilation.

Included Power Cord

A 6-foot cord with plug is included.

Type Forced-Air Cold Pan Drop-In
Style Flat Flange
Installation Type Drop-In
Pan Capacity 4 Pans
Controls Remote On/Off Switch
Refrigeration Type Forced Air
Compressor HP 1/3 HP
Refrigerant Type R290
Drain Connection Size 3/4 Inch
Cord Length 6 Feet
Voltage 120 Volts
Amps 8.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Material 300 Series Stainless Steel
Country of Origin USA
Shipping Weight 213 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship, plus 4 additional years on the compressor.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is a 4-pan unit and accepts food pans up to 6 inches deep.
It operates on 120V, 60 Hz, 1-phase power and draws 8.5 amps with a NEMA 5-15P plug.
Yes. The remote on/off switch can be mounted to any side for operator convenience.
Customer-supplied intake and discharge louvers are required for adequate ventilation.
The unit includes the standard warranty against defects in materials and workmanship, plus an additional four years on the compressor.
