Key specifications
- Amps
- 5.5 Amps
- Phase
- 1-Phase
- Dimensions
- 54.75"W × 26.06"D × 15.0"H
- Type
- Frost Top
- Style
- Refrigerated
- Installation Type
- Drop-In
Spec sheet
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

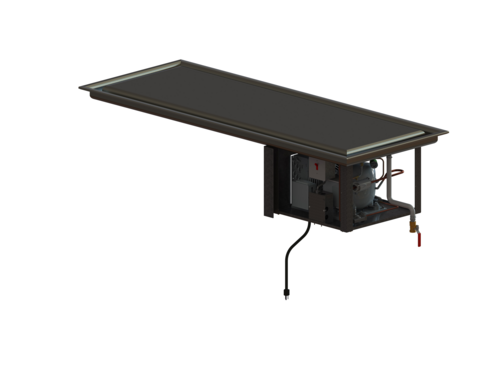

The Vollrath FC-4CP-04120-F is a four-pan drop-in refrigerated frost top designed for top-mount installation flush with the countertop. Its flange and display are made of 300-series stainless steel, with a one-piece frost-top display area and a full-perimeter drip edge.
- Uses an R290 refrigerant system with a 1/3 HP compressor.
- Includes a remote on/off switch with a 4 ft cord and a 6 ft power cord with plug.
- An under-drip-edge gasket is included for installation.
- Intended to hold plated, pre-chilled food and beverages for short periods; it is not intended for direct food contact.
Overall Dimensions:
54.75"W x 26.06"D x 15.0"HProduct Weight:
152.99 lbFour-Pan Configuration
Designed as a four-pan refrigerated frost top.
Stainless Steel Display
The flange and display are made of 300-series stainless steel.
Drop-In Installation
Designed for top-mount installation flush with the countertop.
Under-Drip-Edge Gasket
Includes a gasket for installation under a drip edge.
One-Piece Display Area
The frost-top display area is one piece.
Remote On/Off Switch
Includes a remote on/off switch with a 4 ft cord that can be mounted to any cabinet side.
Ventilation Requirements
Requires one customer-supplied intake louver and one discharge louver, with at least 80 square inches for both fresh-air intake and exhaust.
Food Holding Use
Intended to hold plated, pre-chilled food and beverages for short periods and not for direct food contact.
Power Connection
Includes a 6 ft cord with a NEMA 5-15P plug.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
