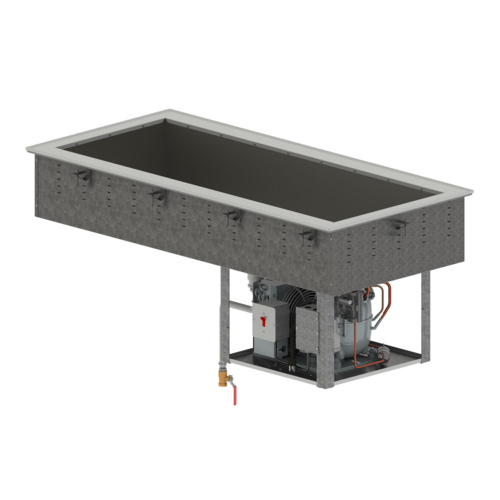

Vollrath Standard Refrigerated 3-Pan Drop-In Cold Pan, Self-Contained R290, 120V

Top-Mount Installation, Full-Size 12" x 20" Pan Capacity

Keep ingredients chilled and ready at the line with a durable, self-contained 3-pan drop-in cold pan built for top-mount installation.

  • Self-contained refrigerated cold pan designed for top-mount drop-in installation.
  • Holds three full-size 12" x 20" pans up to 6" deep when used with adapter bars.
  • 300-series stainless steel fabricated well with optional false bottoms for durability.
  • Foamed-in-place polyurethane insulation and exterior refrigeration coils help maintain cooling efficiency.
  • Includes a 1" integral drain, under-drip-edge gasket, and remote on/off switch.
  • 20-gauge galvanized steel exterior housing operates on 120V power with R290 refrigerant.

Overall Dimensions:

26.0"W

Top-Mount Drop-In Design

Designed for top-mount installation in a countertop opening and provides a level prep surface around the opening.

3-Pan Capacity

Configured to hold three standard pans for cold food service.

Full-Size Pan Compatibility

Accommodates standard 12" x 20" pans up to 6" deep when used with adapter bars.

300-Series Stainless Steel Well

Flange, fabricated well, and optional false bottoms are made from 300-series stainless steel.

Self-Contained R290 Refrigeration

Uses R290 refrigerant and a condensing unit suspended below the well for simplified installation.

Insulated Well Assembly

Foamed-in-place polyurethane insulation helps improve cooling efficiency and performance.

Integral Drain and Drip Protection

Includes a standard 1" integral drain, under-drip-edge gasket, and a full-perimeter drip edge to help contain spills and condensation.

Remote On/Off Control

Includes a remote on/off switch with a 4 ft. cord that can be mounted to a cabinet side.

Galvanized Steel Exterior Housing

20-gauge galvanized steel exterior housing provides durable outer construction.

Type Cold Pan
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 3 Full-Size Pans
Pan Size Full-Size (12" x 20")
Material Stainless Steel
Interior Finish 300-Series Stainless Steel
Finish Galvanized Steel
Controls Remote On/Off Switch
Refrigerant Type R290
Horsepower 1/4 HP
Voltage 120 Volts
Amps 3.2 Amps
Plug Type NEMA 5-15P
Cord Length 6 Feet
Shipping Width 26 Inches
Shipping Weight 225 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates standard 12" x 20" pans up to 6" deep when used with adapter bars.
Yes. It uses self-contained refrigeration with R290 refrigerant and a condensing unit suspended below the well.
The unit operates on 120V, draws 3.2 amps, and uses a NEMA 5-15P plug.
Yes. It includes a 1" integral drain and an under-drip-edge gasket.
It is designed for top-mount installation, for indoor use only, with zero clearance on all sides and 3" clearance from the condenser air inlet and outlet.
Yes. The document lists an optional perforated false bottom for this 3-pan model, item 36914-2.
