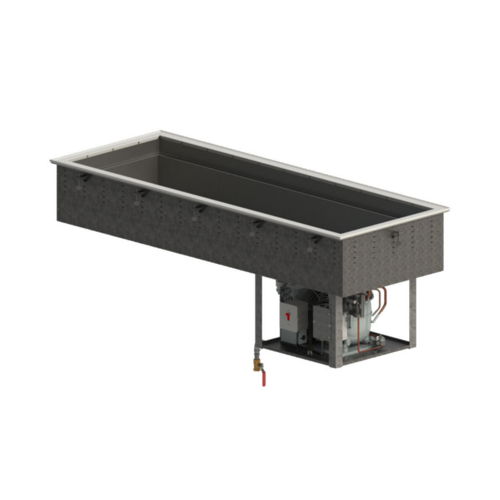

Vollrath 3-Pan Drop-In Refrigerated Cold Pan, Self-Contained R290, 26-Inch Wide

Top-Mount Installation, Full-Size Pan Capacity, 120V

Keep chilled foods ready to serve with a compact 3-well drop-in cold pan that combines self-contained R290 refrigeration with a stainless steel food zone.

  • Holds three standard full-size 12" x 20" pans up to 6" deep when used with adapter bars.
  • Self-contained R290 refrigeration and an insulated well help maintain safe serving temperatures.
  • Top-mount drop-in installation includes standard mounting clips and an under-drip-edge gasket.
  • 300-series stainless steel fabricated well components pair with a 20-gauge galvanized steel exterior.
  • A 1" integral drain and remote on/off switch simplify cleanup and daily operation.

Overall Dimensions:

26.0"W x 41.5"D x 23.93"H

Product Weight:

250.0 lb

Three-Well Capacity

Provides space for three standard food pans, making it a practical fit for buffets, salad bars, and service lines.

Top-Mount Drop-In Design

Designed for top-mount installation and includes standard mounting clips for counters up to 3 inches thick.

Self-Contained R290 Refrigeration

Uses R290 refrigerant and a condensing unit suspended below the well for efficient refrigerated holding.

Insulated Well Construction

Foamed-in-place polyurethane insulation helps improve cooling performance and energy efficiency.

Stainless Steel Food Zone

The flange, fabricated well, and optional false bottoms are 300-series stainless steel for durability.

Integral Drain and Spill Control

Includes a 1-inch integral drain, under-drip-edge gasket, and full-perimeter drip edge to help manage moisture.

Galvanized Steel Exterior Housing

Features a 20-gauge galvanized steel exterior with a remote on/off switch and included 6-foot power cord.

Type Refrigerated Cold Pan
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 3 Full-Size Pans
Pan Size Full-Size (12" x 20")
Material Galvanized Steel
Interior Finish 300-Series Stainless Steel
Finish Galvanized Steel
Refrigeration Type Self-Contained
Refrigerant Type R290
Horsepower 1/4 HP
Voltage 120 Volts
Amps 3.2 Amps
Hertz 60 Hz
Plug Type NEMA 5-15P
Cord Length 6 Feet
Shipping Width 26 Inches
Shipping Depth 42 Inches
Shipping Height 24 Inches
Shipping Weight 250 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship, plus 4 additional years on the compressor.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is a 3-pan refrigerated cold pan.
It accommodates standard full-size 12" x 20" pans up to 6" deep when used with adapter bars.
It requires 120V/60Hz power and draws 3.2 amps. A NEMA 5-15P plug is included.
Yes. The unit uses self-contained refrigeration with the condensing unit suspended below the well.
It is a top-mount drop-in unit with standard mounting clips included. The cabinet must have two customer-supplied louvers, one intake and one discharge, with at least 80 square inches of fresh-air intake and exhaust.
It comes with Vollrath's standard warranty against defects in materials and workmanship, plus an additional four years on the compressor.
