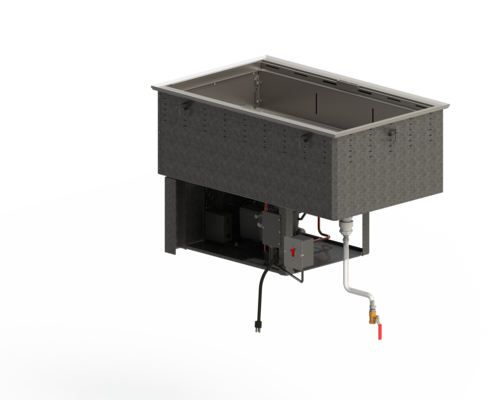

Vollrath Standard Forced-Air 3-Pan Drop-In Cold Pan, 120V

300-Series Stainless Steel, Remote On/Off Switch, R290 Refrigeration

Keep displayed foods consistently chilled with dual-forced air cooling in a durable stainless steel drop-in built for clean, reliable merchandising.

  • Dual-forced air across two sides delivers even, consistent chilling.
  • Standard 3-pan drop-in design is built for refrigerated food display.
  • 300-series stainless steel top and well with galvanized exterior housing for durability.
  • Remote on/off switch can be mounted to any side for operator convenience.
  • Full-perimeter drip edge with molded breaker gasket supports clean installation.
  • R290 refrigerant, insulated inner well, and factory-set cold control help efficiency.

Dual-Forced Air Cooling

Air flows across two sides for more even and consistent chilling.

Remote-Mount On/Off Switch

The on/off switch can be mounted to any side for operator convenience, and includes a 4-foot cord.

300-Series Stainless Steel Food Zone

The top and well are made from durable 18-gauge 300-series stainless steel.

Gasketed Drip-Edge Installation

A full-perimeter drip edge with molded breaker gasket is included for under-drip-edge installation.

R290 Refrigeration

Uses R290 refrigerant for a lower global warming potential than many older refrigerants.

Insulated Inner Well

Foamed-in-place polyurethane insulation supports efficiency and performance.

Integral Drain

A standard 3/4-inch integral drain is included.

Power Cord Included

Includes a 6-foot cord with NEMA 5-15P plug.

Deep Pan Accommodation

The well accepts food pans up to 6 inches deep.

Type Cold Pan
Style Standard
Installation Type Drop-In
Pan Capacity 3
Pan Size Up to 6 Inches Deep
Material 300 Series Stainless Steel
Refrigeration Type Forced Air
Refrigerant Type R290
Compressor HP 1/3 HP
Controls Remote On/Off Switch
Voltage 120 Volts
Amps 8.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Shipping Weight 213 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship, plus an additional 4 years on the compressor.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is designed for 3 pans.
It operates on 120 Volts, 60 Hz, 1-Phase power and uses a NEMA 5-15P plug.
The well accepts food pans up to 6 inches deep.
Adapter bars or templates are required, and customer-supplied intake and discharge louvers are needed for adequate ventilation.
Vollrath drop-ins are made to order and cannot be returned.
