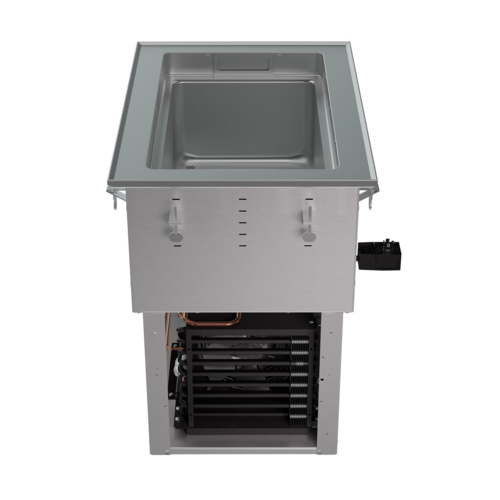

Vollrath Standard Refrigerated 2-Pan Drop-In Cold Pan, Self-Contained, Top-Mount

Full-Size Pan Compatible, Flanged, R290, 120V

A compact self-contained cold well that keeps two full-size pans chilled and ready at the serving line.

  • Drop-in, top-mount refrigerated cold pan designed for food bars and serving lines.
  • Holds 2 standard 12" x 20" pans up to 6" deep with adapter bars.
  • Insulated fabricated well with 300-series stainless steel components supports efficient cooling.
  • Self-contained R290 refrigeration uses exterior side-wall coils and a suspended condensing unit.
  • Includes a 1" integral drain, under-drip-edge gasket, and 6-ft power cord with NEMA 5-15P plug.
  • 20-gauge galvanized steel exterior housing and full-perimeter drip edge help protect the countertop area.

Overall Dimensions:

26.0"W x 29.0"D

Product Weight:

65.0 lb

Top-Mount Drop-In Design

Built for countertop installation with a flanged opening and drop-in layout.

Two-Pan Capacity

Accommodates two standard full-size 12" x 20" pans up to 6" deep when used with adapter bars.

Insulated Fabricated Well

The inner well assembly is foamed-in-place polyurethane insulated for better cold retention and performance.

300-Series Stainless Steel Wet Area

The flange, fabricated well, and optional false bottoms are made from 300-series stainless steel.

R290 Self-Contained Refrigeration

Uses R290 refrigerant and refrigeration coils around the exterior side walls of the well for maximum cooling.

Drain and Spill Management

Features a standard 1" integral drain, full-perimeter drip edge, and included under-drip-edge gasket.

Durable Exterior Housing

Constructed with a 20-gauge galvanized steel exterior housing.

Convenient Electrical Setup

Includes a remote on/off switch with a 4-ft cord and a 6-ft power cord with plug.

Flat Flange Option

The drip-free flange can be replaced with a flat flange by adding "FF" to the item number.

Type Cold Pan
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 2
Pan Size Full-Size (12" x 20")
Material Galvanized Steel
Interior Finish 300-Series Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290
Voltage 120 Volts
Amps 3.2 Amps
Plug Type NEMA 5-15P
Cord Length 6 Feet
Controls Remote On/Off Switch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 26 Inches
Shipping Depth 29 Inches
Shipping Weight 65 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates 2 standard 12" x 20" pans up to 6" deep when used with adapter bars.
Yes. This model uses self-contained refrigeration with R290 refrigerant.
It operates on 120V, draws 3.2 amps, and includes a NEMA 5-15P plug with a 6-ft cord.
Yes. A 1" integral drain is standard.
Yes. A flat flange is available by adding "FF" to the item number.
The unit needs zero clearance on all sides, 3" clearance from the condenser air inlet and outlet, and at least 80 square inches for both fresh-air intake and exhaust.
