Vollrath

Vollrath FC-4C-05120-FA Steam Tables & Food Wells

SKU: FC-4C-05120-FA
$6,828.40
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers New Arrivals Vollrath

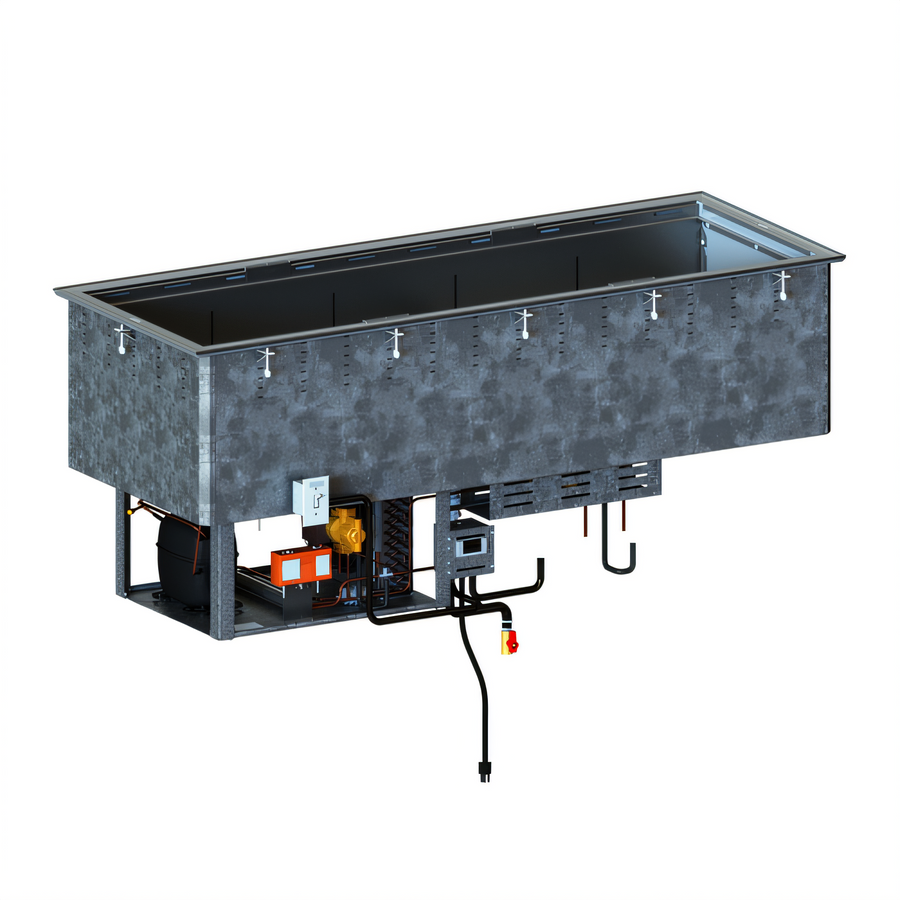

Vollrath 5-Pan Forced-Air Refrigerated Drop-In Cold Well

Model FC-4C-05120-FA | 68 in wide • Self-Contained • Made in USA

Give guests a perfectly chilled presentation from the very first scoop to the last. Vollrath’s 5-well cold pan uses dual forced-air technology to blanket product on both sides with consistent, NSF-7 compliant cold air—keeping foods safely below 41 °F without the mess of ice or the uneven temperatures of static systems.

Key advantages

  • Dual forced-air flow on two sides for faster pull-down and even holding temperatures.
  • Shallow 6 in (15.2 cm) recess shows off menu items for maximum visual appeal.
  • 18-gauge 300-series stainless steel top & seamless well resist corrosion and clean up fast.
  • Factory-installed ¾ in integral drain speeds nightly sanitation.
  • Remote 4 ft on/off rocker switch mounts to any cabinet side for ergonomic access.
  • Low-GWP, non-flammable R513A refrigerant meets sustainability initiatives.
  • Foamed-in-place polyurethane insulation locks the cold in and energy costs down.
  • Ships complete with positioning clips—drop it in, plug it in, start serving.

Ideal for

  • Self-serve salad & soup bars
  • University & corporate cafeterias
  • Supermarket delis & grab-and-go islands
  • Catering & banquet lines

Technical specifications

Pan capacity 5 full-size (12 × 20 in) up to 6 in deep
Overall dimensions 68 W × 25 1⁄4 D × 28 5⁄8 H in
(172.7 × 64.1 × 72.7 cm)
Cut-out size* 67 1⁄4 × 25 1⁄4 in (170.8 × 64.1 cm)
Compressor ½ HP, self-contained (suspended below well)
Refrigerant R513A, 11 oz charge
Electrical 120 V / 60 Hz / 1-ph, 9 A, NEMA 5-15P cord & plug included
Heat rejection 8,800 BTU/hr (to be considered for HVAC load)
Unit weight 165 lb (74.8 kg) ship weight
Drain ¾ in IPS (male) integral drain
Agency listings NSF 7 • cULus • USA-made

*Always verify cut-out after receiving unit; Vollrath drop-ins are made-to-order and cannot be cancelled or returned.

Installation & ventilation

  • Zero-clearance on sides; maintain 3 in (7.6 cm) from condenser air inlet/outlet.
  • Provide ≥80 in² (516 cm²) each for fresh-air intake and exhaust.
  • Designed for indoor use where ambient ≤86 °F (30 °C) and RH ≤60 %.
Made to order: Contact Vollrath for current lead time before purchasing. Modular drop-ins are non-cancellable and non-returnable once in production.

For complete warranty details, visit vollrathfoodservice.com. Refrigeration compressors carry a 5-year parts warranty.

Overall Dimensions:

68.0"W x 26.0"D x 28.63"H

Product Weight:

285.0 lb
Manufacturer Vollrath
Certifications ["NSF", "cULus", "Made in USA"]
Height 28.63in
Width 68.0in
Depth 26.0in
Shipping Weight 285.0lbs
Width (side - side) 67 - 72 inches
Pan Qty 5-pan
Style self-contained refrigeration
Layout deep
Finish stainless steel & galvanized steel
Insulation insulated
Pan Size full-size (12" x 20")
Specifications Refrigerated Cold Food Well Unit, drop-in, 5-well, 68"W x 25-1/4"D x 28-5/8"H, (overall), holds pans up to 7" deep, dual forced air cooled, remote mounted on-off switch,18/300 series stainless steel top & interior well, galvanized exterior, self-contained refrigeration, 3/4" integral drain, includes positioning clips, 1/2 HP, 120v/60/1-ph, 9.0 amps, NEMA 5-15P, cULus, NSF, Made in USA (contact Vollrath for lead time) (Refer to vollrathfoodservice.com for full warranty policy)
