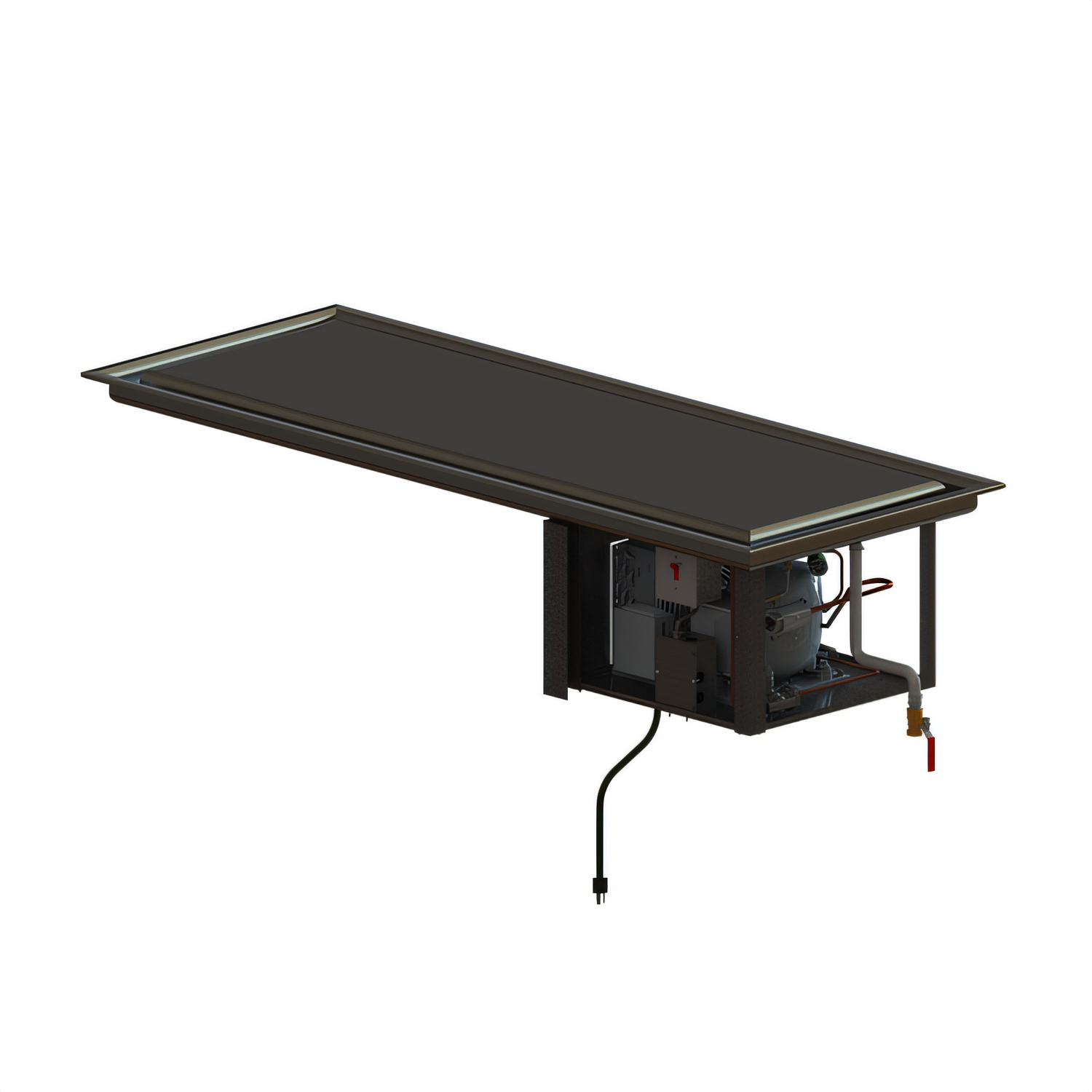

Vollrath FC-4C-05120-F Drop-In Refrigerated Frost Top – 5 Pan
68" self-contained frost top | 300-series stainless steel | 120 V plug-inKeep grab-and-go entrées, desserts and beverages ice-cold and attractively displayed with Vollrath’s USA-made, five-pan Refrigerated Frost Top. The flush-mount, one-piece stainless display surface delivers a full, even frost pattern while a high-efficiency 1/3 HP compressor and eco-friendly R513A refrigerant provide dependable performance with low energy costs.
Why you’ll love it
- 5-pan capacity (62 in. display length) maximises merchandising space.
- 300-series stainless steel flange & display surface – durable, food-safe and easy to wipe clean.
- One-piece frost top with coils beneath and along the side walls for a uniform full-frost pattern.
- Average surface temperature 0 °F (-18 °C) at 70 °F ambient.
- Full-perimeter recessed drip flange contains condensation; ½" integral drain simplifies plumbing.
- Remote lighted On/Off switch (4 ft cord) lets staff power the unit without reaching under the counter.
- Plug-and-play, self-contained refrigeration — 6 ft cord with NEMA 5-15P, no hard-wiring required.
- Low-GWP, non-flammable R513A refrigerant supports sustainability goals.
- Zero-clearance installation on sides; only 4½" clearance needed at condenser air in/out.
- cULus & NSF listed; built in Sheboygan, Wisconsin, USA.
Technical specifications
| Model | FC-4C-05120-F |
|---|---|
| Pan capacity | 5 full-size pans (or equivalent sheet pans/trays) |
| Display area length | 62 in | 157.5 cm |
| Overall dimensions (L × W) | 68 in × 26-1/16 in (172.7 cm × 66.2 cm) |
| Recommended countertop cut-out | 67-1/4 in × 25-1/4 in (170.8 cm × 64.1 cm) |
| Compressor | 1/3 HP, self-contained |
| Peak heat rejection | 4,800 BTU/h |
| Refrigerant | R513A, low GWP, non-flammable |
| Electrical | 120 V | 60 Hz | 1-phase | 7.8 A |
| Plug | NEMA 5-15P, 6 ft (183 cm) cord |
| Drain connection | ½ in integral drain |
| Certifications | cULus, NSF |
| Country of origin | Made in USA |
| Compressor warranty | 5 years (see Vollrath warranty policy) |
Installation & ventilation
- Indoor use only.
- Provide minimum 80 in² (516 cm²) each for fresh-air intake and exhaust louver openings in the cabinet.
- Maintain 4½ in (11.4 cm) clearance in front of condenser air openings.
- Avoid HVAC drafts directly over the frost top for optimum performance.
Lead time varies; please contact Vollrath for current availability.
Refer to vollrathfoodservice.com
for complete warranty terms and service procedures.
Overall Dimensions:
68.0"W x 26.06"D x 15.0"HProduct Weight:
285.0 lbCertifications & Compliance
