Vollrath FC-4C-03120-F Refrigerated Prep Tables
Description

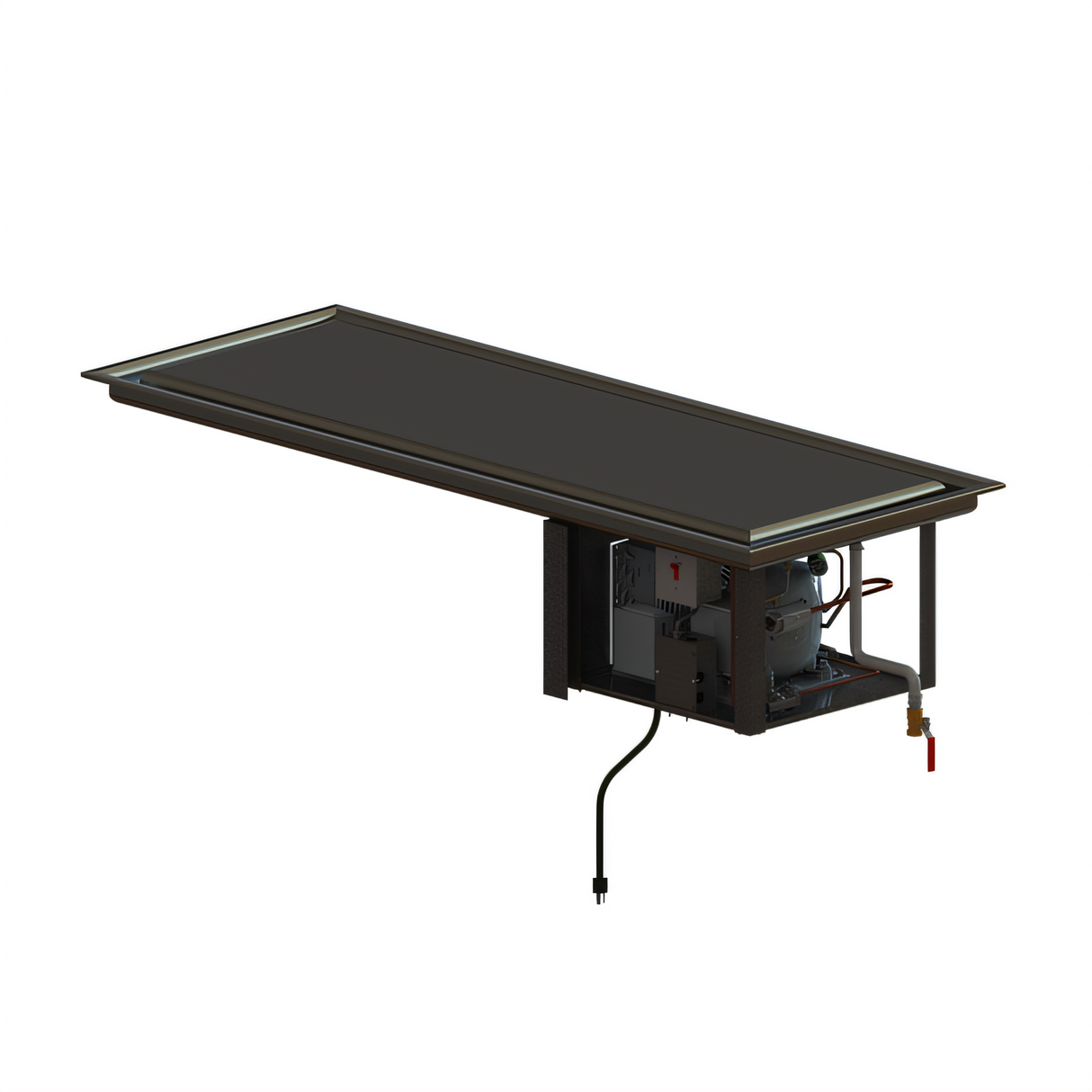

Vollrath Refrigerated Frost Top Drop-In – 3 Pan (FC-4C-03120-F)
Self-contained, flush-mount frost surface for chilled, ready-to-serve itemsGive customers perfectly frosted grab-and-go selections while keeping your countertop looking seamless. The Vollrath 3-Pan Refrigerated Frost Top Drop-In holds pre-chilled entrées, desserts, beverages and more at 0 °F (-18 °C)* and maintains an even frost pattern across the entire 35 ½ inch display area.
Key features
- 300 series stainless-steel flange & display surface – durable, easy to clean, food-safe
- One-piece frost top sits flush with countertop for a built-in, professional look
- Full-perimeter recessed drip edge with ½ inch integral drain controls condensation and spills (gasket included)
- Energy-efficient R513A refrigerant – non-flammable, low Global Warming Potential
- Refrigeration coils mounted under & around display surface for uniform cooling
- Extruded polystyrene insulation directs cold only where needed, lowering operating cost
- Remote light-edged On/Off rocker switch (4 ft cord) simplifies daily operation
- Ships ready to run – self-contained 1/3 HP compressor, 6 ft cord & NEMA 5-15P plug (no hard-wiring)
- Zero-clearance installation on sides; only 4 ½ in clearance needed at condenser air-flow openings
- cULus & NSF listed; proudly Made in the USA
At-a-glance specifications
| Pan capacity | 3 full-size food pans (not included) |
|---|---|
| Display surface | 35 ½ in L frost top (average 0 °F at 70 °F ambient) |
| Overall dimensions | 41 ½ in L × 26 1⁄16 in W × 15 in H† |
| Countertop cut-out | 40 ¾ in L × 25 ¼ in W (flush-mount) |
| Rise above counter | ⅜ in |
| Compressor | 1/3 HP; peak heat rejection 4 800 BTU/hr |
| Refrigerant / charge | R513A / 5 oz |
| Electrical | 120 V / 60 Hz / 1-phase, 7.8 A, NEMA 5-15P |
| Shipping weight | Approx. 99 lb (45 kg) |
| Certifications | cULus, NSF |
† Height includes condensing unit suspended beneath the frost top.
Installation & ventilation
- Unit is designed for indoor use only.
- Provide a minimum of 80 in² fresh-air intake and 80 in² exhaust through customer-supplied louvers.
- Prevent drafts or HVAC air from blowing directly across the frost surface for best performance.
5-year compressor warranty; see VollrathFoodservice.com for complete warranty policy. Modification of refrigeration parameters or the power cord will void warranty.
