Vollrath CBGMD-60 Gas Charbroilers
Description

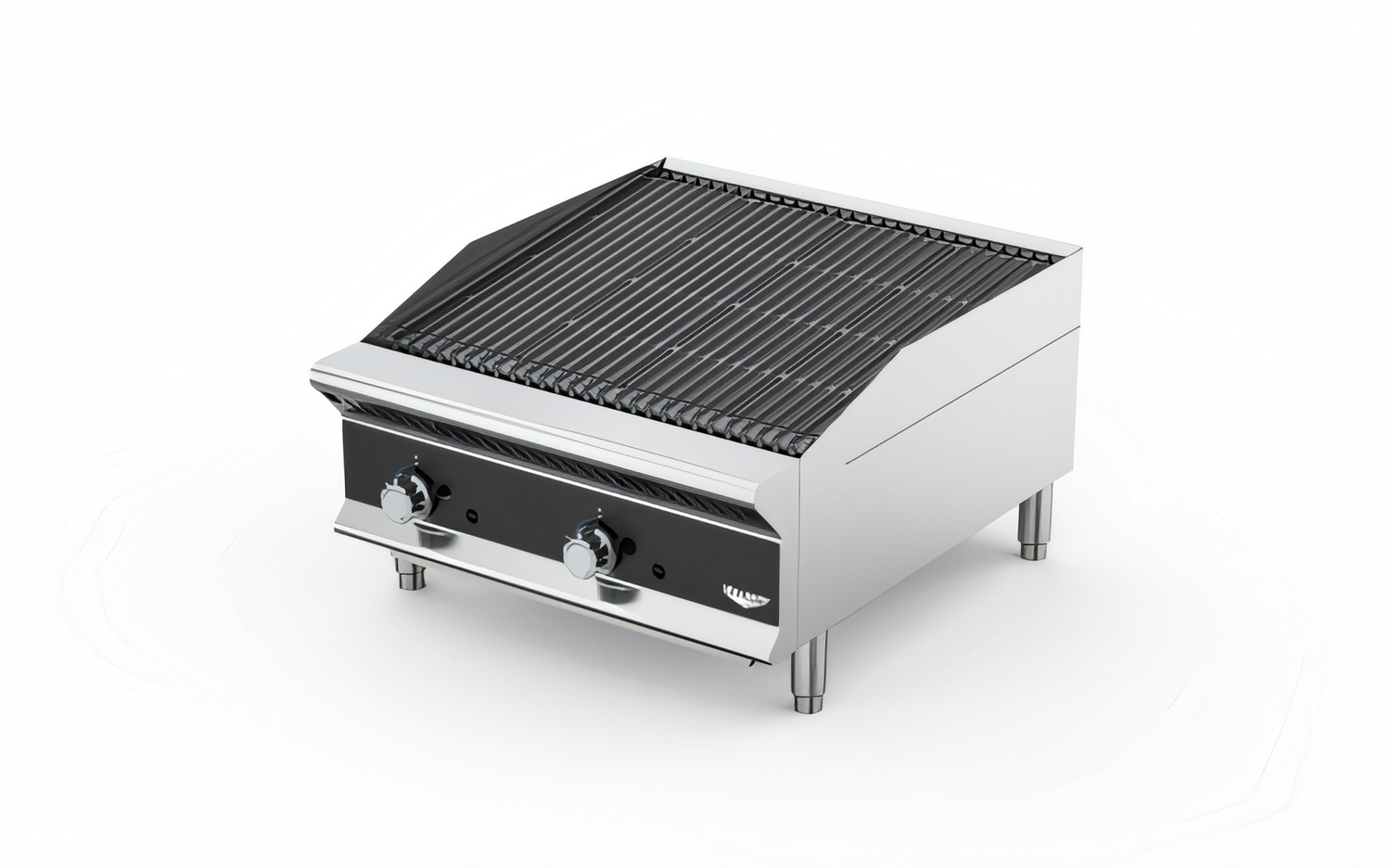

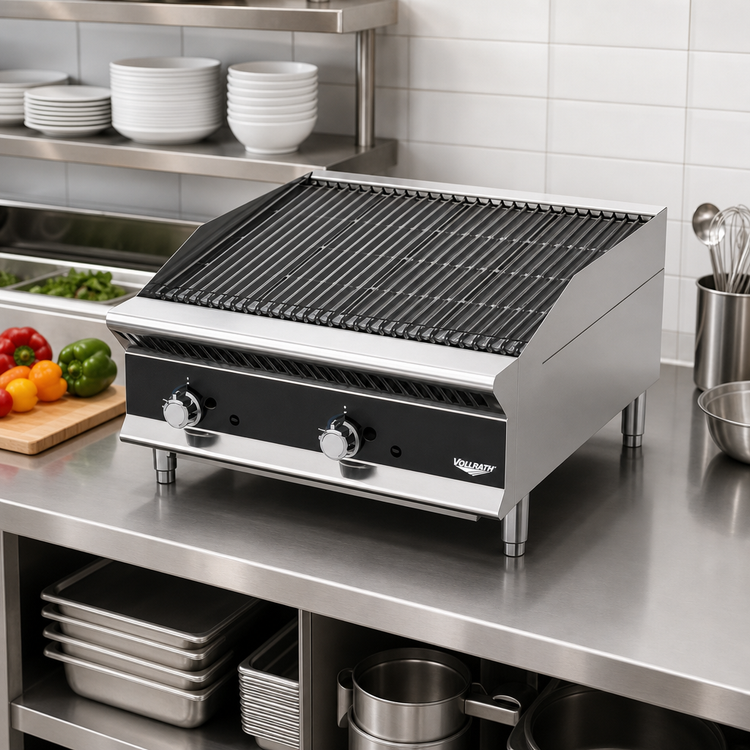

Vollrath CBGMD-60 Medium-Duty Gas Charbroiler – 60" Countertop

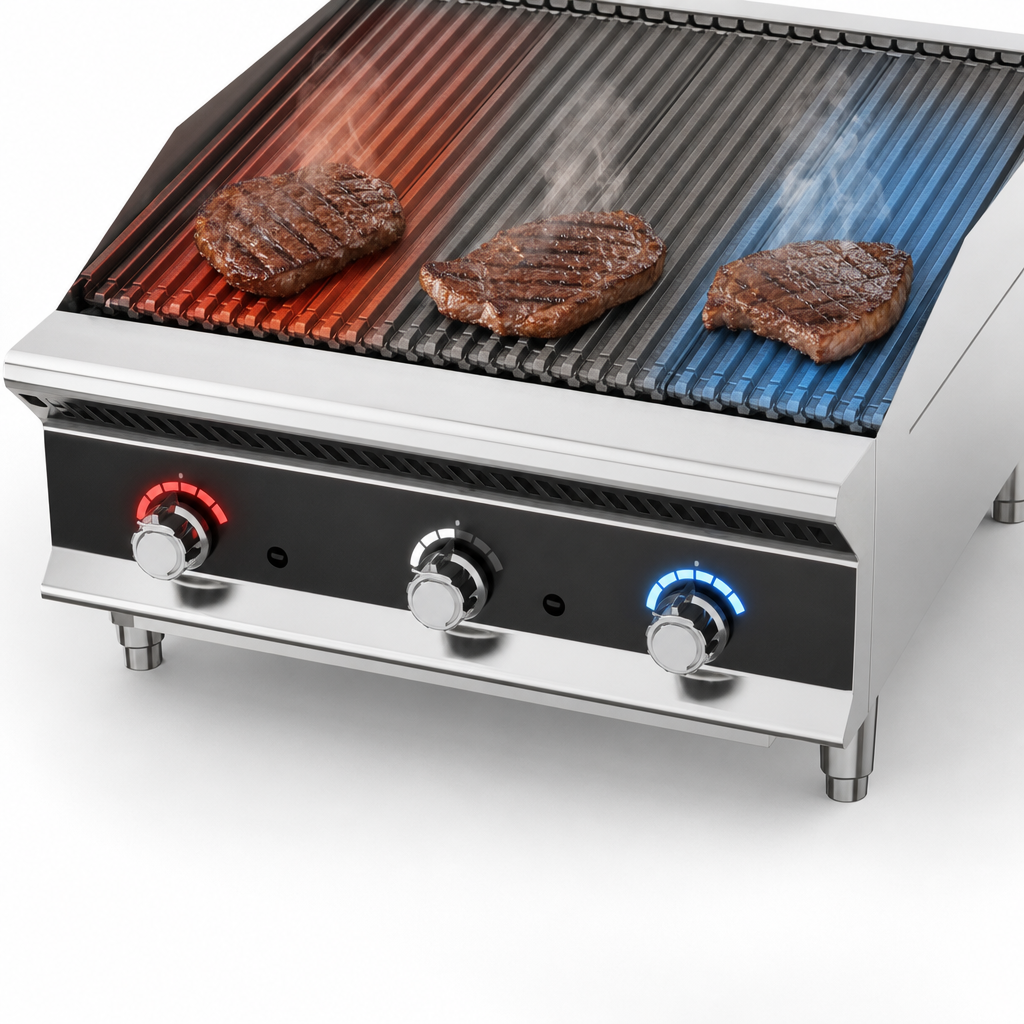

200,000 BTU • Reversible Radiant Grates • Stainless Steel ConstructionBuilt for busy kitchens that demand steak-house searing power in a space-saving footprint, the 60 inch Vollrath Medium-Duty Gas Charbroiler delivers consistent, even heat across a generous cooking surface. Five individually-controlled 40,000 BTU burners let you create multiple temperature zones, while reversible grill plates give you the versatility to go from burgers and steaks to delicate seafood with a simple flip.
Key Features & Benefits

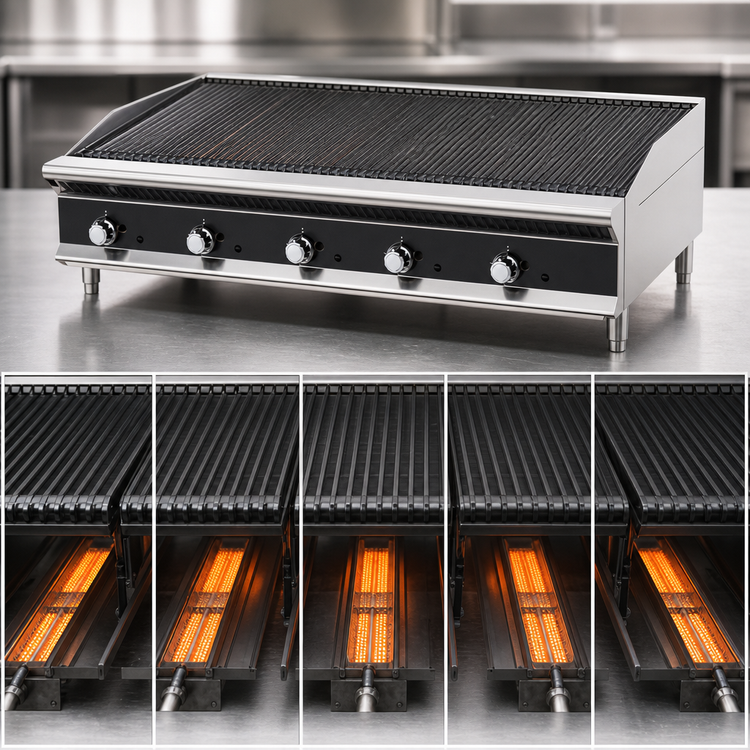

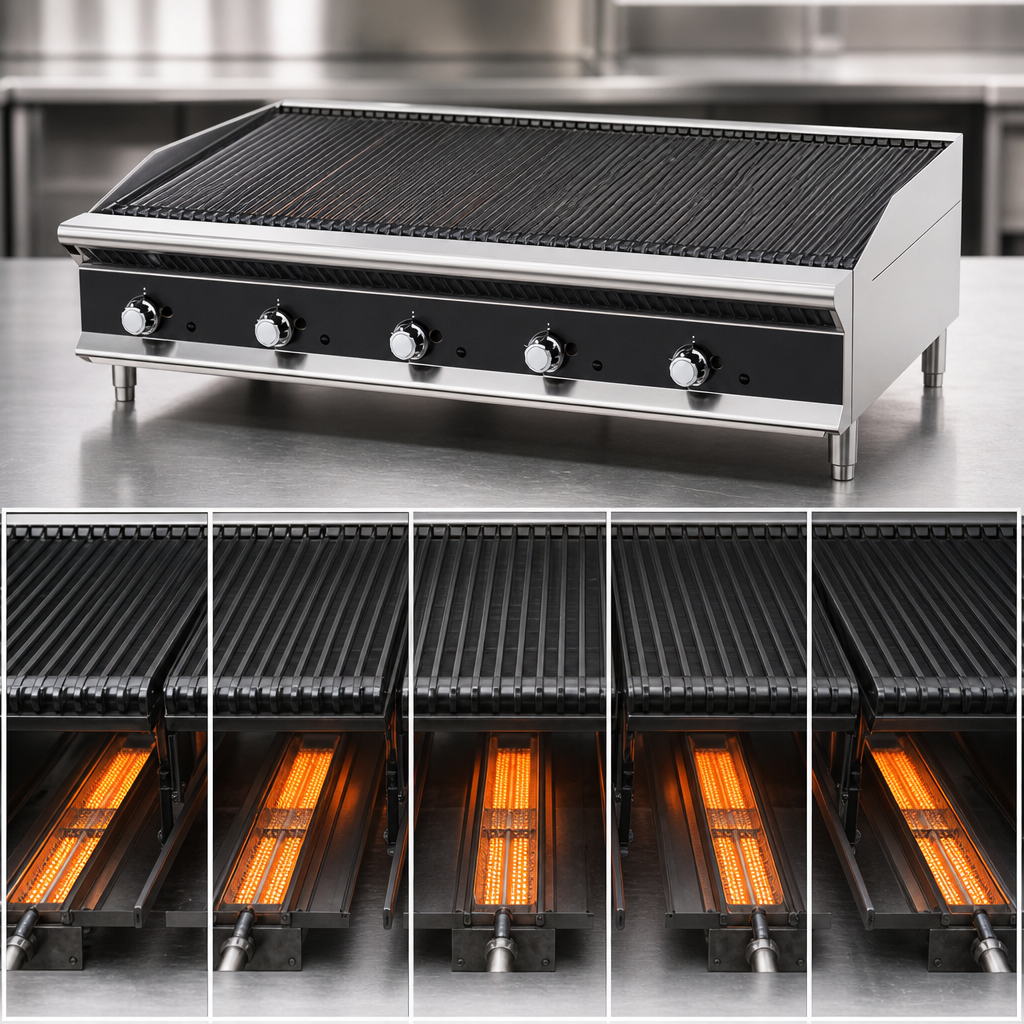

- Massive output: 5 stainless-steel burners provide 200,000 BTU of uniform heat (40,000 BTU every 12").
- Reversible cast-iron grates: Narrow ridges with built-in fat channels on one side reduce flare-ups; the flatter, wider surface on the reverse is ideal for fish and veggies.
- Natural gas ready with an LP conversion kit included for on-site flexibility.
- All-stainless exterior cleans quickly and resists corrosion in harsh kitchen environments.
- Heavy-duty metal control knobs are guaranteed for life.
- Bull-nose front keeps hands safe from hot surfaces while providing a convenient plate-resting ledge.
- Two easy-to-handle grease drawers (one per 30") speed up cleaning and reduce spills.
- 4" adjustable legs simplify leveling and ensure proper airflow underneath.
- Zero side clearance from non-combustible surfaces helps you maximize limited counter space.
- Certifications: ETL, ETL Sanitation (NSF/ANSI 4), and cETLus for Canada.
Specifications
| Model | CBGMD-60 |
|---|---|
| Overall Size (W × D × H) | 60.2" × 29.25" × 15.25" (152.9 × 74.3 × 38.7 cm) |
| Cooking Surface | 60.0" × 20.5" (152.4 × 52.1 cm) |
| Total BTU | 200,000 BTU/hr |
| Burners / Spacing | 5 burners • 1 per 12" |
| Gas Connection | ¾" NPT rear inlet, 5 ¾" (14.6 cm) above counter |
| Included Kit | Radiant grate set • LP conversion kit |
| Optional Accessory | Lava Rock Kit #353435-1 |
| Construction | 304 stainless steel body • Cast-iron grates • Heavy-duty gas valves |
| Certifications | ETL • ETL Sanitation • cETLus |
| Warranty | 1 year parts & labor (knobs lifetime) |
Installation Notes
- Install on a non-combustible countertop only.
- Maintain at least 6" (15.2 cm) clearance at the rear for ventilation; no side clearance required from non-combustibles.
- Unit must rest on the provided 4" legs to allow proper airflow.
Need a different width? Vollrath Medium-Duty Charbroilers are also available in 12", 24", 36" and 48" sizes.
