Vollrath CBGMD-48 Gas Charbroilers
Description
Vollrath CBGMD-48 Medium-Duty Gas Charbroiler – 48″
Countertop | 160,000 BTU | Natural Gas (LP conversion kit included)Built for busy restaurants, caterers and concession stands, the Vollrath CBGMD-48 delivers the power of a full-size grill in a space-saving countertop footprint. Four independently-controlled 40,000 BTU burners blanket a generous 47 inch cooking surface, while reversible cast-iron grates give you the flexibility to go from perfect steakhouse marks to delicate seafood in seconds.
Stand-Out Features

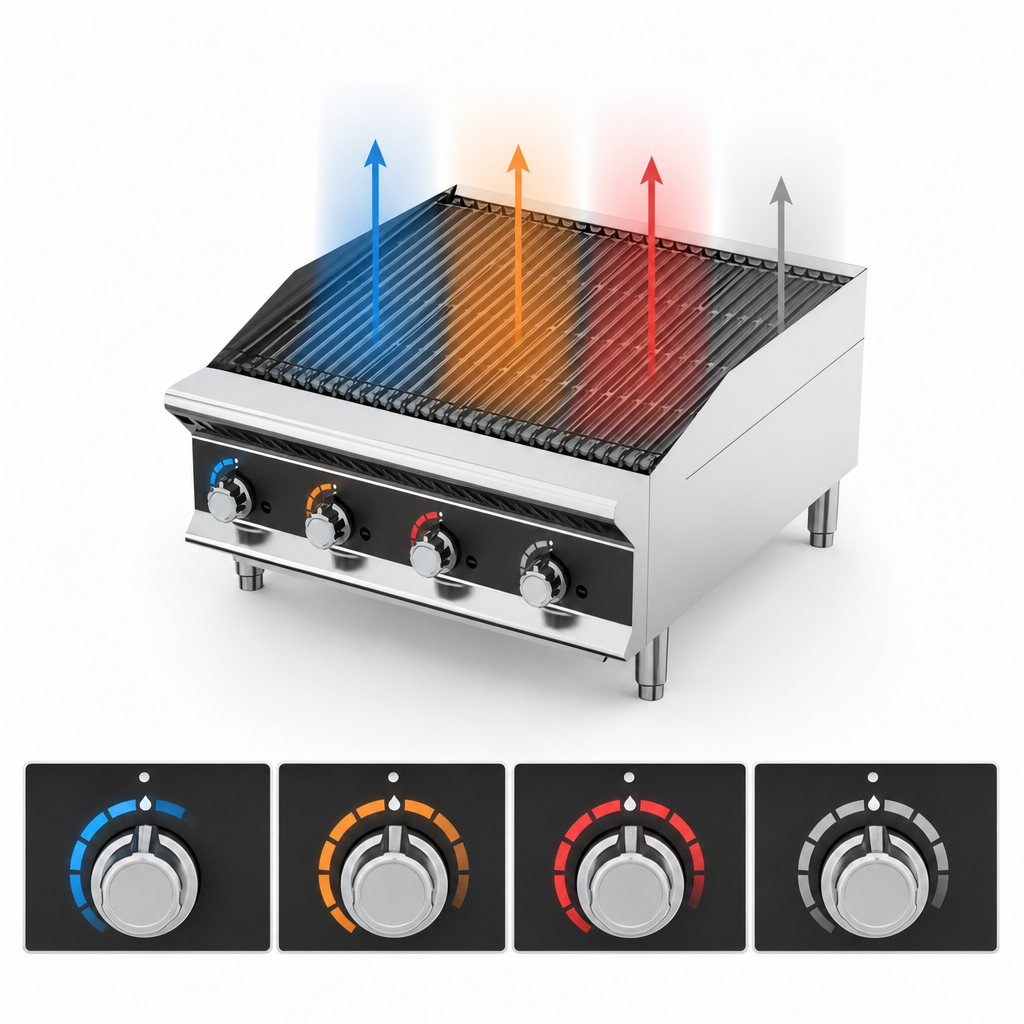

- 4 high-output burners (40,000 BTU each) for even, edge-to-edge heat.
- Factory-set for natural gas; propane orifices & regulator included for quick field conversion.
- Reversible cast-iron grates: narrow ridges & grease channels on one side to reduce flare-ups, wider profile on the flip side for fish & veggies.
- Stainless steel body, backsplash and sidesplashes for fast wipe-downs and lasting durability.
- Bull-nose front and metal control knobs GUARANTEED FOR LIFE keep staff safe from hot surfaces.
- Two easy-lift grease trays sized for one-handed emptying.
- Heavy-duty 4″ adjustable legs simplify leveling and provide mandatory airflow beneath the unit.
- Zero side clearance from non-combustibles—perfect for tight cooklines.
- Standard ¾″ NPT rear gas inlet for hassle-free hook-ups.
Included with Your Charbroiler

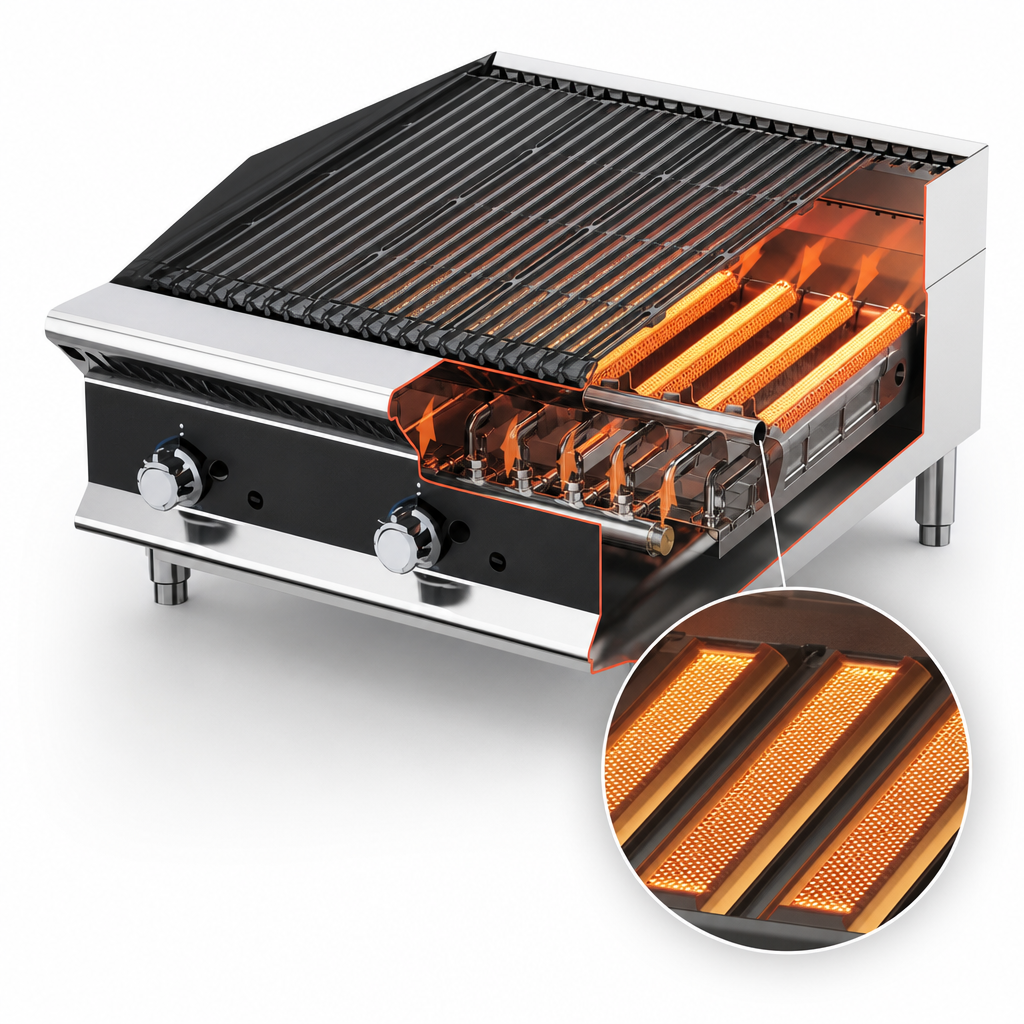

- Factory-installed radiant kit
- Propane conversion kit
- (2) Grease trays
- (4) Adjustable legs
- Owner’s manual
- 1-Year limited parts & labor warranty
Optional Accessories (sold separately)
- 353431-1 Lava Rock Kit – enhances flame-kissed flavor
Technical Specifications
| Specification | Details |
|---|---|
| Model | CBGMD-48 |
| Overall Dimensions (W × D × H) | 47.7″ × 29.25″ × 15.25″ (121 × 74.3 × 38.7 cm) |
| Cooking Surface | 47.4″ × 20.5″ (120.4 × 52.1 cm) |
| Number of Burners | 4 |
| Total BTU Output | 160,000 BTU/hr |
| Gas Connection | ¾″ NPT rear inlet Gas inlet adds 1 ⅞″ (4.8 cm) to depth. |
| Material | Stainless steel chassis, cast-iron grates |
| Certifications | ETL, ETL Sanitation (NSF/ANSI 4), CETL |
| Warranty | 1-Year limited parts & labor (knobs lifetime) |
Need help or parts? Contact Vollrath Technical Services at techservicereps@vollrathco.com or 800-628-0832.
