Vollrath 69524 Professional Induction Ranges
Description

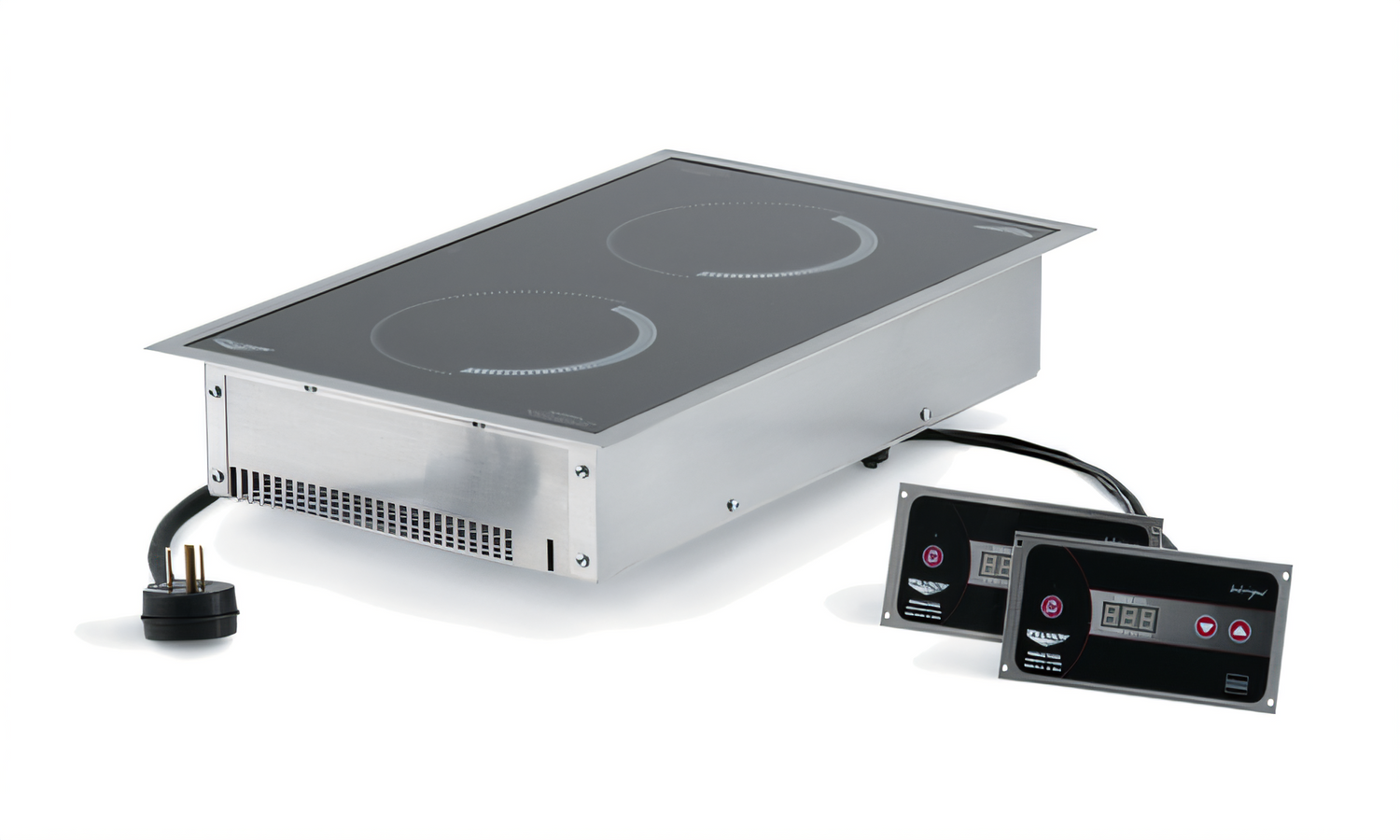

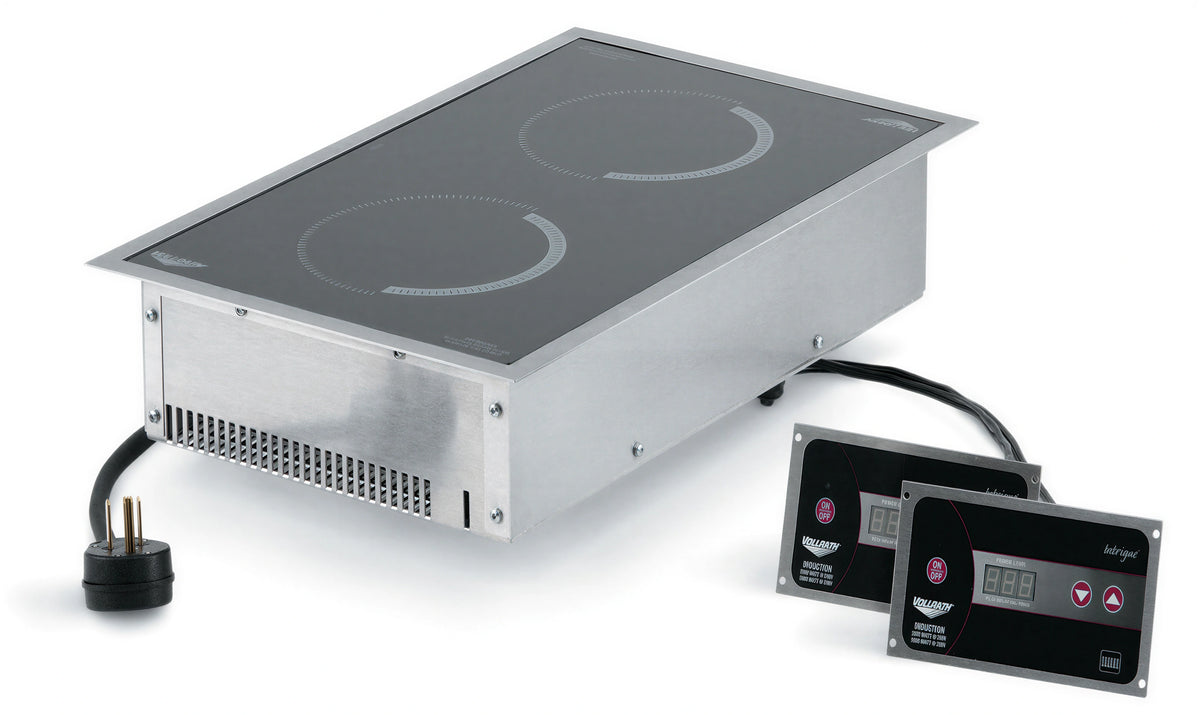

Professional Series Drop-In Dual-Hob Induction Range
Vollrath Model 69524 | Front-to-Back ConfigurationEngineered for demanding commercial kitchens, this Professional Series drop-in induction range delivers precise, energy-efficient performance in a compact, flush-mount design. With 100 power/temperature settings, dual 2.9 kW hobs and an easy-clean vitro ceramic top, it takes you from delicate chocolate work to rapid boils in seconds—without the ambient heat of gas.
Key Advantages

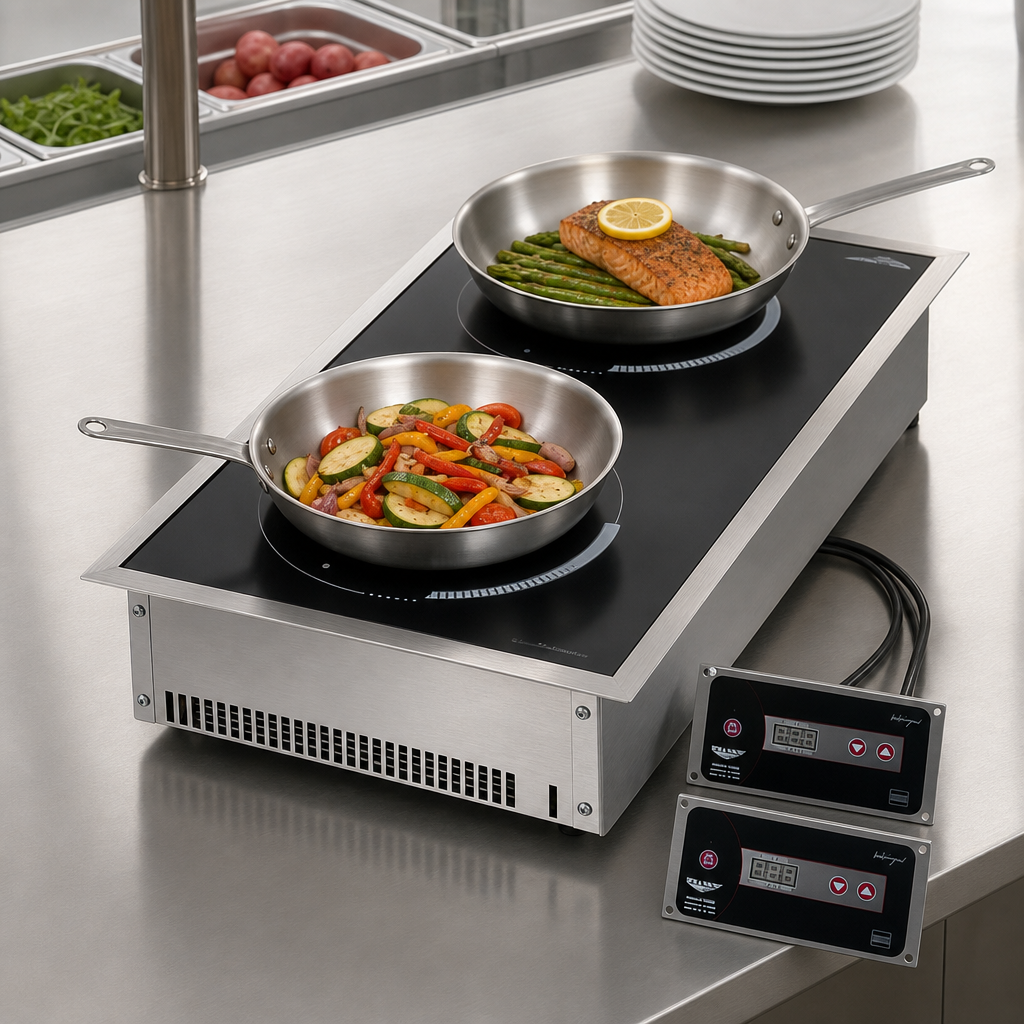

- Dual front-to-back induction hobs – 12 in (30.5 cm) max pan size per hob
- 100 incremental settings: choose exact power level or temperature
- 1-180 minute timer with auto-shutoff for repeatable results
- ≈ 90 % thermal efficiency – saves energy & keeps kitchens cooler

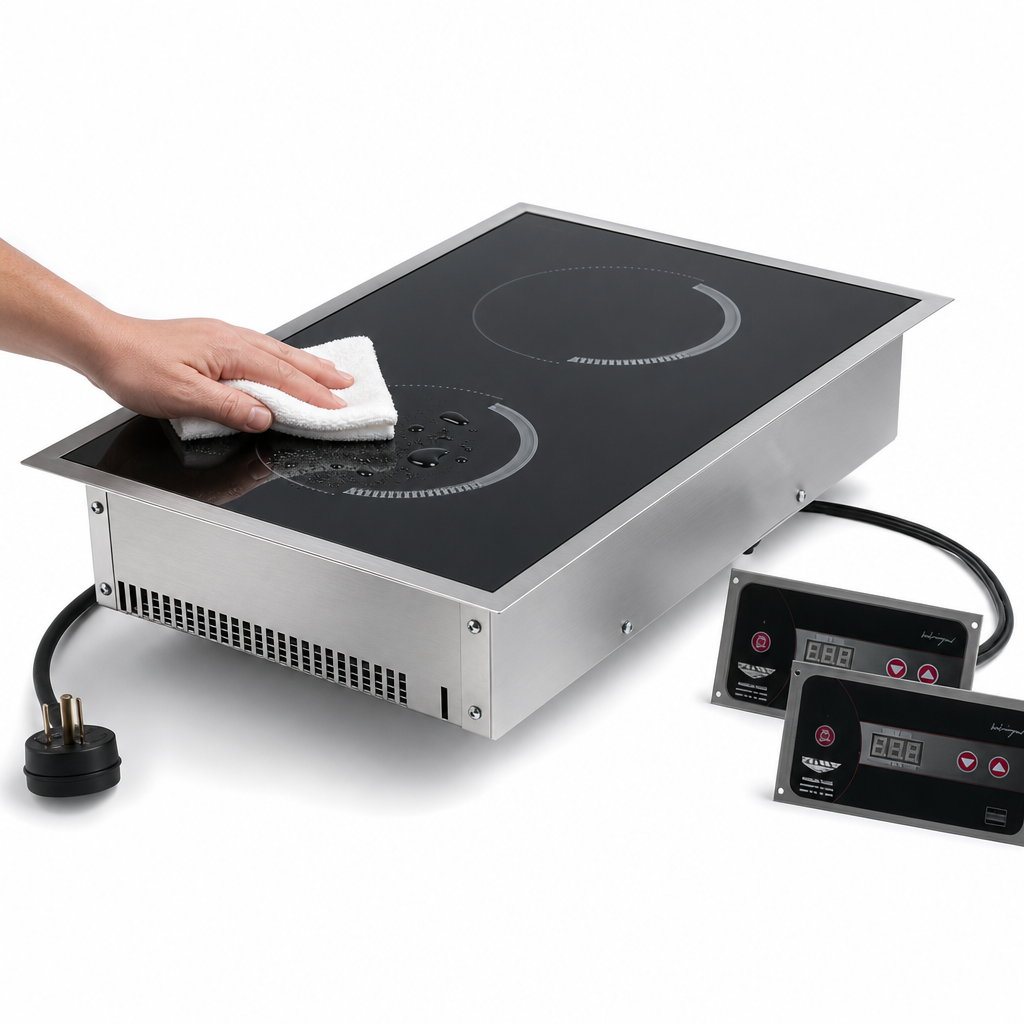

- Vitro ceramic cooking surface wipes clean in seconds
- Touch-activated digital control panel – no knobs to trap food soil
- Firewall-protected circuitry, oversized cooling fans & 18-ga 304 SS case for continuous duty
- Safety suite: over-heat protection, pan auto-detection, small-article detection & empty-pan shut-off
- “HOT” surface indicator remains lit until the glass cools below 150 °F (65 °C)
Built for Commercial Performance
- Sauté, sauce pots and small stockpots up to 27 lb (12 kg) each
- Ideal for display cooking, hotel banquet lines, universities and ghost kitchens
- Continuous-duty induction circuitry keeps pace with high-volume service
- Drop-in design installs flush for a clean, modern workspace
Technical Specifications
| Number of cooking zones | 2 (front & back) |
|---|---|
| Overall dimensions (W × D × H) | 17-3/8″ × 27-7/8″ × 5-1/8″ | 44.1 × 70.8 × 13 cm |
| Counter cut-out size | 26-3/8″ × 15-7/8″ | 67 × 40.3 cm |
| Control box cut-out (each) | 7″ × 3-7/8″ | 18.4 × 9.8 cm |
| Maximum pan diameter | 12″ (30.5 cm) per hob |
| Total power output | 5 – 5.8 kW (2.5 – 2.9 kW per hob) |
| Electrical | 208-240 V / 50-60 Hz / 1-phase, 24.2 A, 6′ (183 cm) cord, NEMA 6-30P plug |
| Construction | 18-ga 18/8 (304) stainless steel chassis, vitro ceramic glass top |
| Efficiency rating | ≈ 90 % (induction) vs. ≈ 40 % (gas) |
| Certifications | NSF Listed, cULus, FCC Part 18 compliant |
| Warranty | Two-year parts & labor (see Vollrath warranty for details) |
Perfect For
- Front-of-house exhibition cooking
- Sauté stations & finishing sauces
- Room-service kitchens & suites
- Vent-free or limited-utility installations
Full warranty policy available at vollrathfoodservice.com.
