Vollrath 69521 Professional Induction Ranges
Description

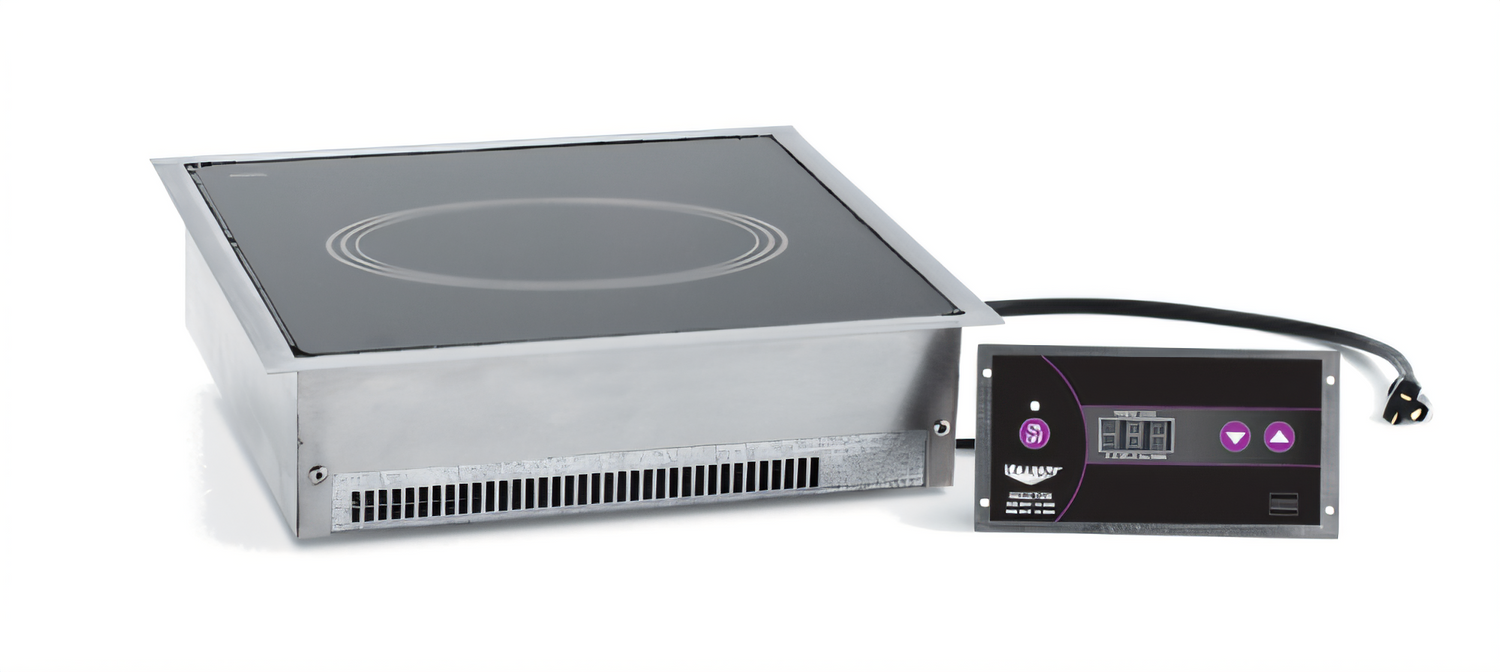

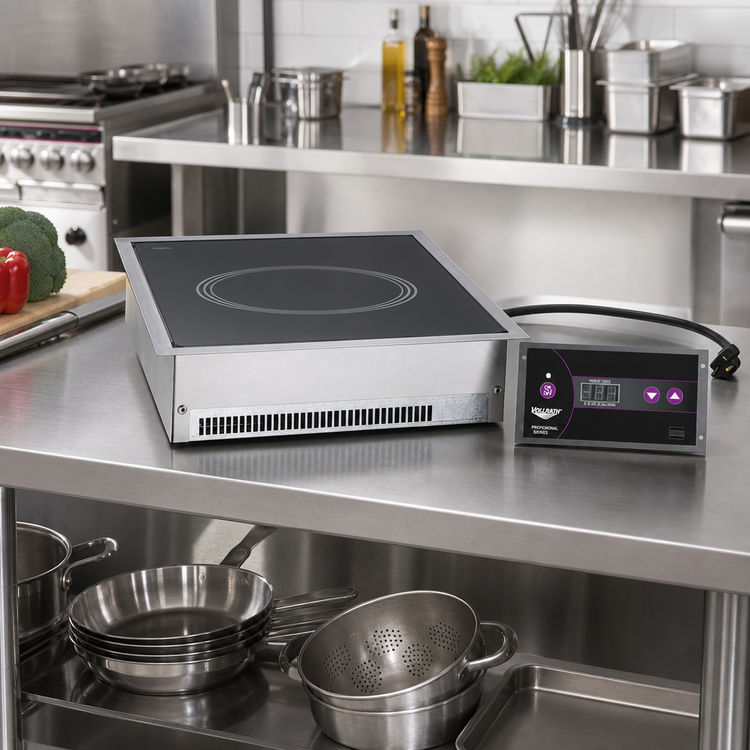

Vollrath Professional Series Drop-In Induction Range – Single Hob
Model 69521 | 14" (35.6 cm) max pan | 2.5 – 2.9 kWGive your sauté station or front-of-house action station the precision of induction with Vollrath’s Professional Series drop-in range. Engineered for continuous commercial use, this flush-mount unit delivers 100 power/temperature settings, industry-leading 90 % energy efficiency and a full suite of automatic safety protections— all in a low-profile 18-8/304 stainless-steel chassis built to disappear into your counter.
Why you’ll love it
- 100 adjustable levels – switch between power or precise °F/°C temperature control.

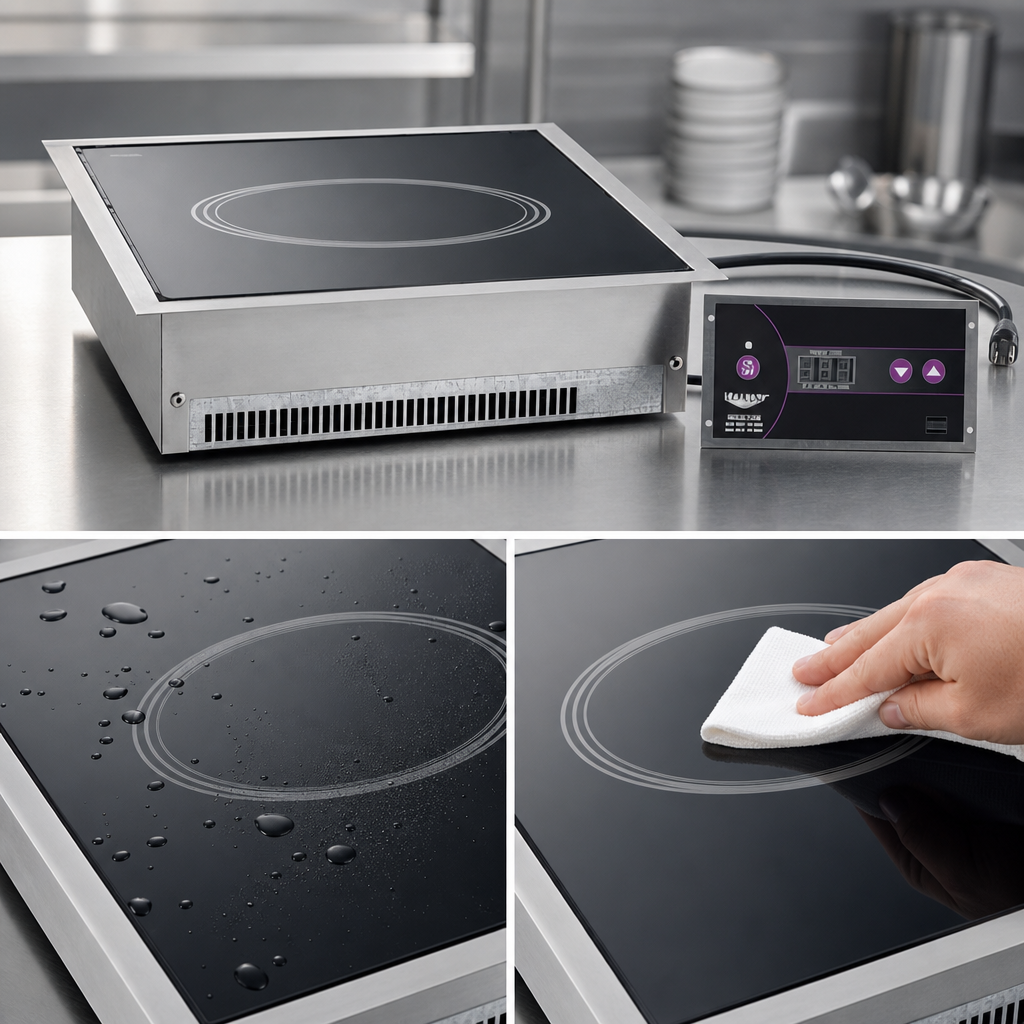

- Vitro ceramic glass top wipes clean and resists scratches & stains.
- 1 – 180 minute timer with auto shut-off for perfect reductions, sauces & melts.
- Remote, knob-less digital control panel (3 ft cord) prevents accidental setting changes and displays “HOT” when the surface is above 150 °F (65 °C).
- Continuous-duty induction circuitry with oversized cooling fans for 24/7 operation.
- Firewall-protected electronics housed in heavy-gauge 18-8/304 stainless case.
- Automatic pan detection, small-article detection & empty-pan shut-off guard against accidents.
- Overheat protection proactively lowers power or shuts the unit down if internal temperatures rise.
- 6 ft power cord with NEMA 6-20P plug – ships ready to install.
- NSF, cULus & FCC (Part 18) listed for the U.S. & Canada.
Specifications
| Item number | 69521 |
|---|---|

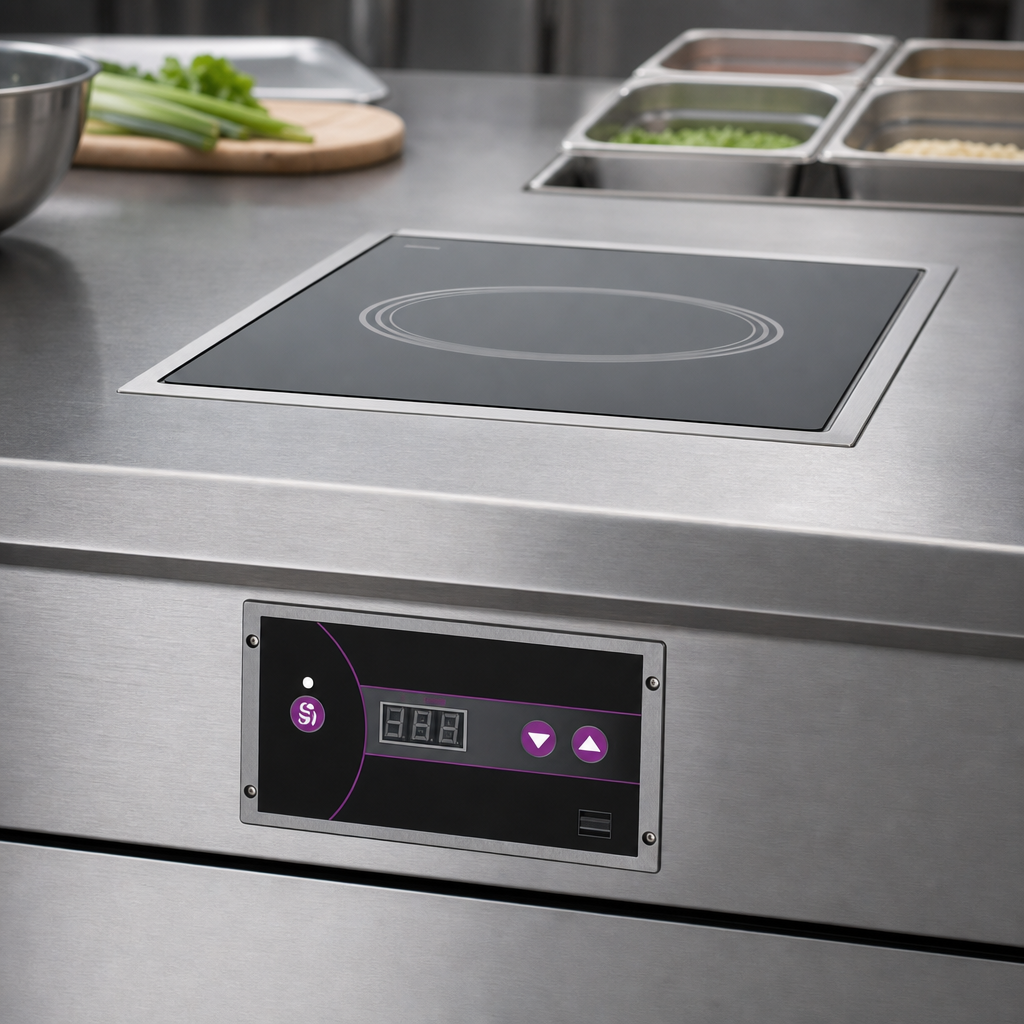

| Installation style | Drop-in, single hob (flush mount) |
| Overall dimensions | 16" W × 17 3/4" D × 6" H (40.1 × 45.1 × 15.2 cm) |
| Counter cut-out | 16 1/8" W × 15 1/8" D (40.9 × 38.4 cm) |
| Control cut-out | 7 1/4" W × 3 7/8" H (18.4 × 9.8 cm) |
| Maximum pan diameter | 14" (35.6 cm) |
| Power output | 2.5 – 2.9 kW |
| Electrical | 208/240 V, 50/60 Hz, 1-phase, 12.1 A, NEMA 6-20P |
| Settings | 100 power/temperature levels |
| Timer | 1 – 180 minutes (auto shut-off) |
| Body material | 18-gauge 18-8/304 stainless steel |
| Certifications | NSF, cULus, FCC Part 18 |
| Warranty | 2-year parts & labor (see Vollrathfoodservice.com for details) |
Installation & operating notes
- Use only induction-ready cookware; not for pans with aluminum bases or metal disks.
- Provide 3" (7.6 cm) rear and 1" (2.5 cm) bottom clearance for ventilation; ambient intake air must stay below 110 °F (43 °C).
- Unit ships fully assembled—simply drop into prepared cut-out and plug in.
Vollrath backs this Professional Series induction range with a full 2-year parts & service warranty. For complete terms, please visit the Vollrath warranty page.
