Vollrath 69508 Ultra Induction Ranges
Description

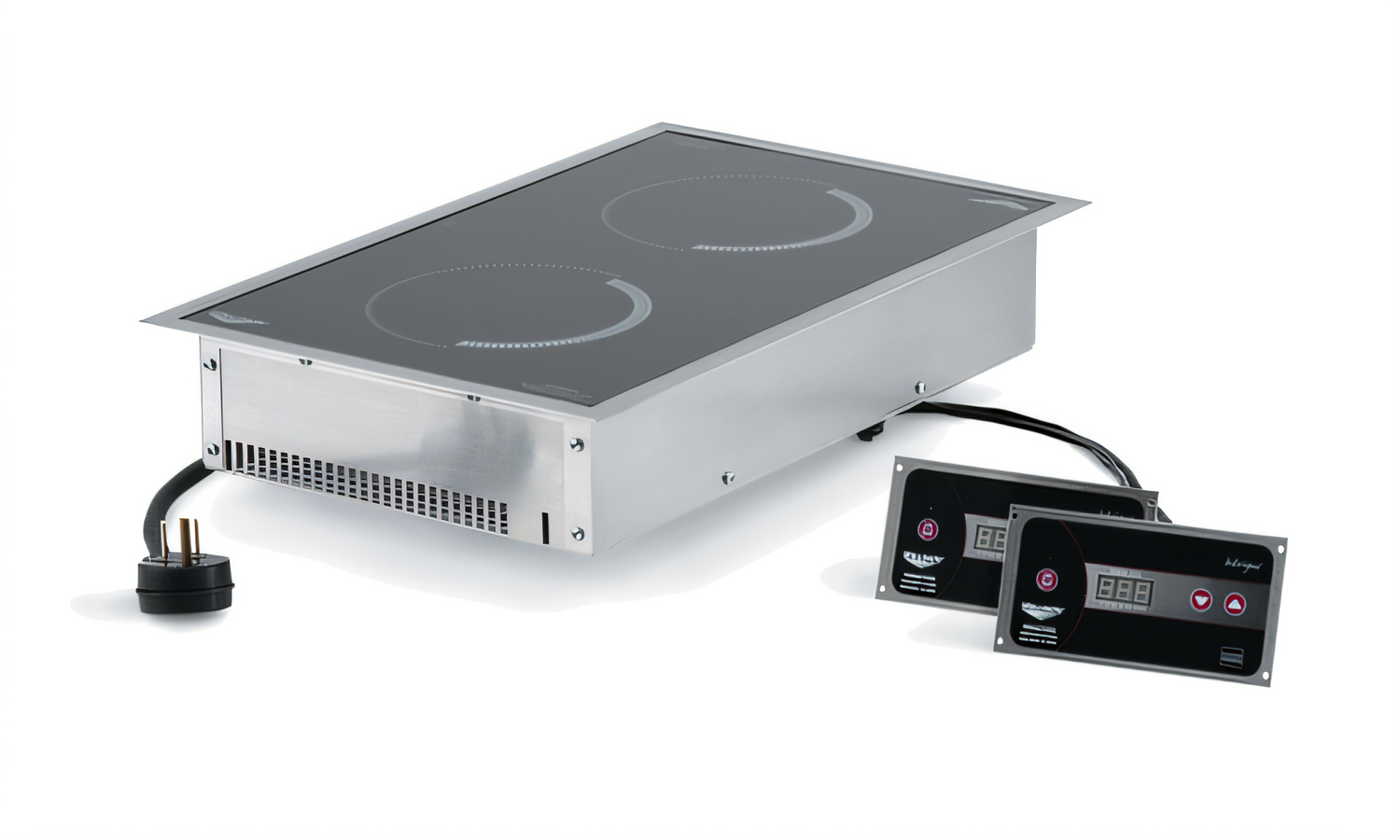

Vollrath Ultra Series Dual-Hob Drop-In Induction Range

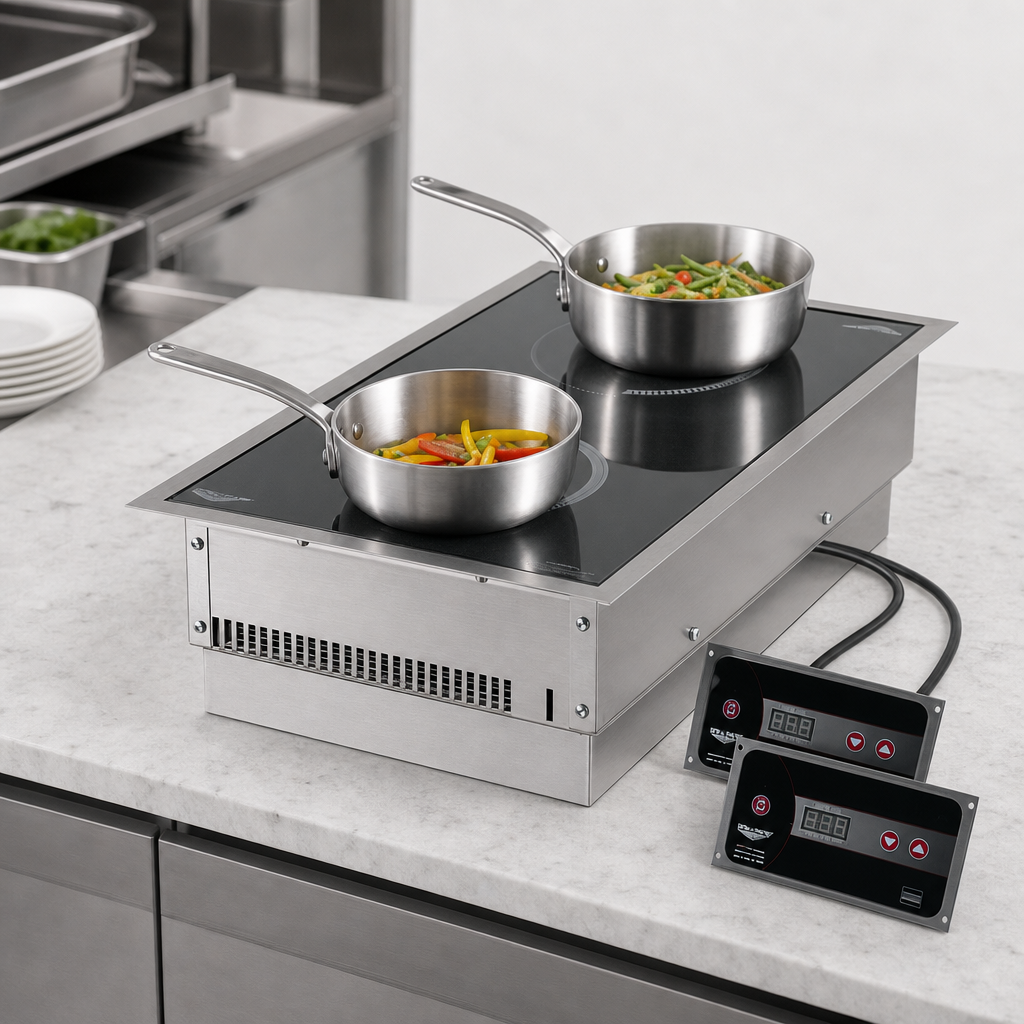

Model 69508 • Front-to-Back Hobs • 6.0 – 7.0 kW Total OutputEngineered for large-volume, round-the-clock production, the Vollrath Ultra Series Model 69508 puts two powerful induction hobs in a single drop-in footprint. From whisper-low chocolate work to rapid stir-fry temperatures, 100 digital power settings give you the laser-precise control today’s professional kitchens demand—all while operating at an industry-leading 90 % energy efficiency.
Performance & Control
- 100 power levels per hob for exact repeatable results
- 3.0 – 3.5 kW per hob (6.0 – 7.0 kW total) handles sauté pans, stockpots and everything in between
- Sensitive low-end modulation for delicate sauces, crèmes and chocolates
- Continuous-duty induction circuitry built for nonstop service
- Dual oversized cooling fans extend component life in demanding environments
Smart Safety & Efficiency
- Pan auto-detection starts heating only when induction-ready cookware is present
- Small-article detection prevents activation on stray utensils
- Overheat & empty-pan shut-off protect cookware and unit
- “HOT” surface indication on the glass and control panel alerts operators
- Seamless ceramic glass cooking surface wipes clean in seconds
Technical Specifications
| Item number | 69508 |
|---|---|
| Configuration | Drop-in, dual hob (front-to-back) |
| Max pan diameter | 12 in (30.5 cm) per hob |
| Power output | 3.0 – 3.5 kW per hob | 6.0 – 7.0 kW total |
| Power levels | 100 |
| Input voltage | 208/240 V AC, 50/60 Hz, 1-phase |
| Current draw | 29.2 A |
| Plug type | NEMA 6-50P (6 ft / 183 cm cord) |
| Unit dimensions (W × D × H) | 17 ⅜ in × 27 ⅞ in × 5 ⅛ in (44.1 × 70.8 × 13 cm) |
| Drop-in cutout | 26 ⅜ in × 15 ⅞ in (67 × 40.3 cm) |
| Control-box cutout | 7 ¼ in × 3 ⅞ in (18.4 × 9.8 cm) – two controls |
| Housing / top | Stainless steel drop-in chassis & black ceramic glass cooking surface |
| Certifications | cULus | NSF | FCC Part 18 |
| Warranty | 2-year parts & labor (see Vollrath warranty for details) |
Perfect For

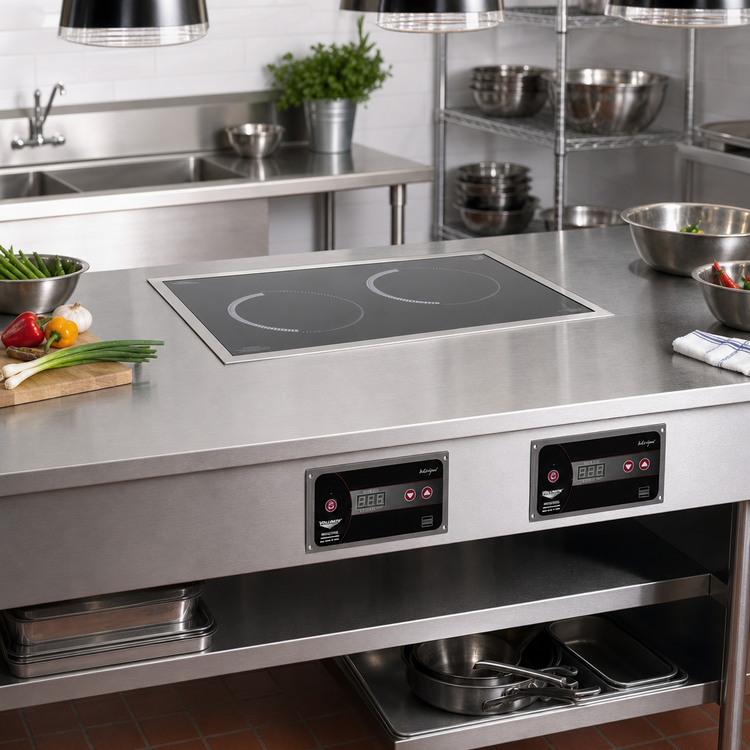

- Chef action stations & front-of-house displays
- High-volume hotel, banquet and catering operations
- Ghost kitchens that need maximum BTU replacement in minimal space
For complete warranty terms visit vollrathfoodservice.com.
