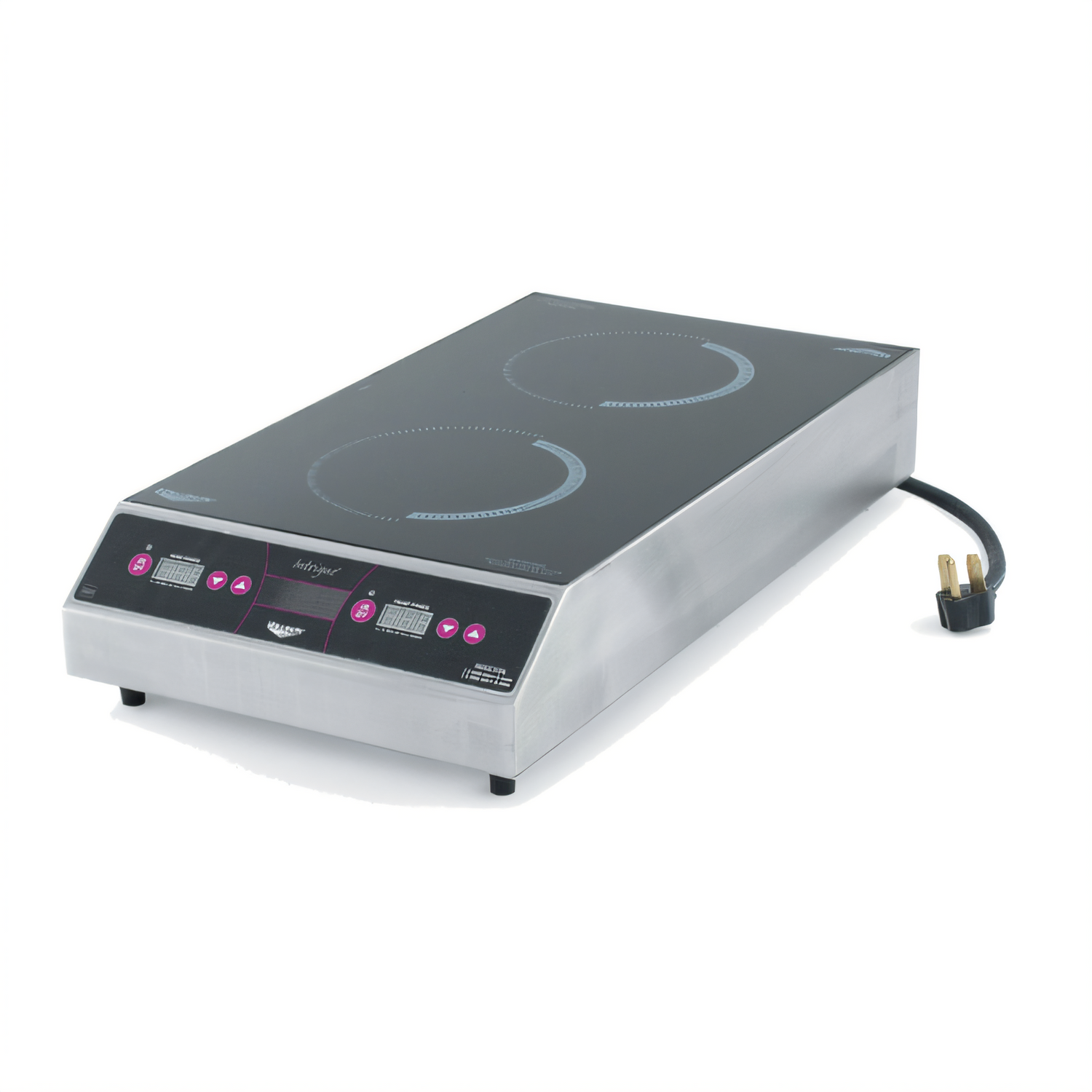

Vollrath 69507 Ultra Induction Ranges
Description
Vollrath Ultra® Series Dual-Hob Countertop Induction Range

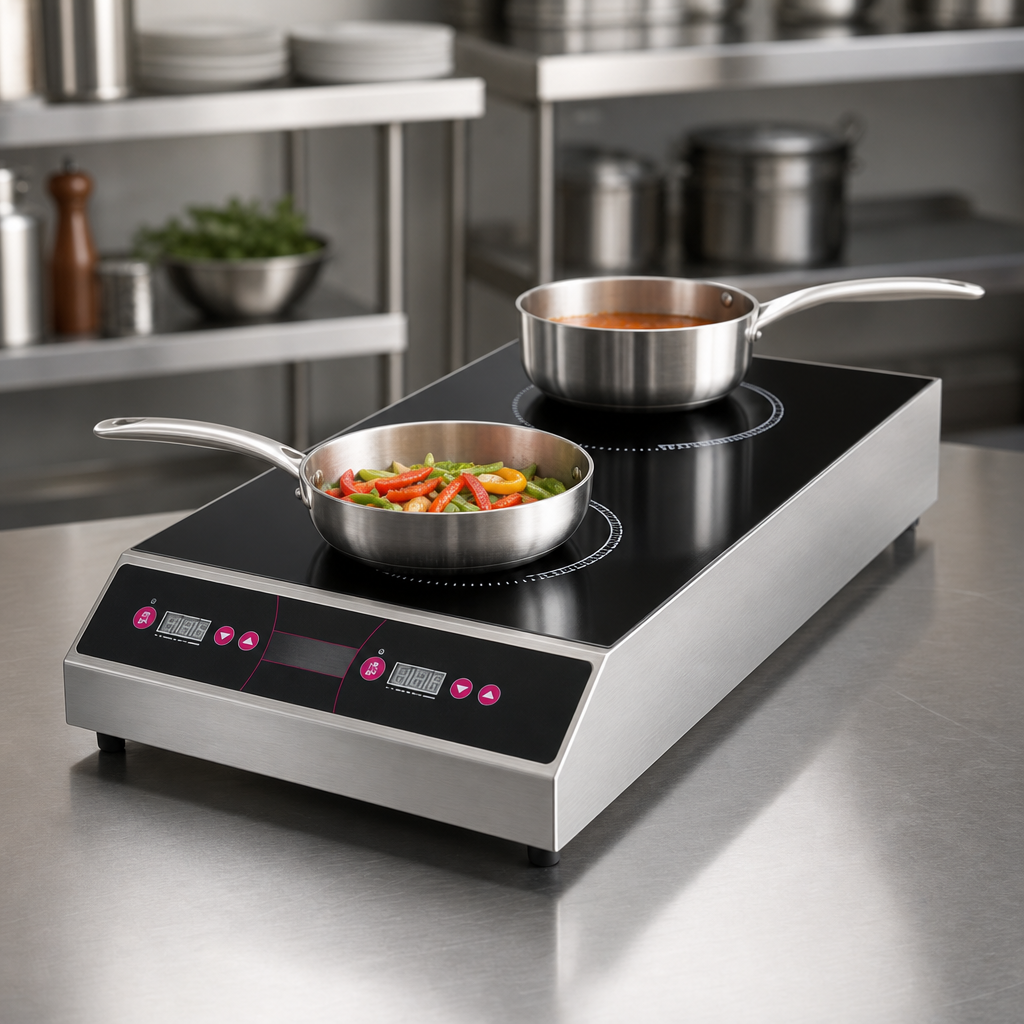

Model 69507 | Front-to-Back Hob LayoutMaximize speed, precision, and kitchen efficiency with the Vollrath Ultra Series 69507 induction range. This heavy-duty, front-to-back dual-hob unit delivers up to 3.5 kW of instant, flameless power per hob in a space-saving 15 ⅞″ footprint—perfect for sauté pans, saucepots, and small stockpots in high-volume commercial operations.
Why You’ll Love It

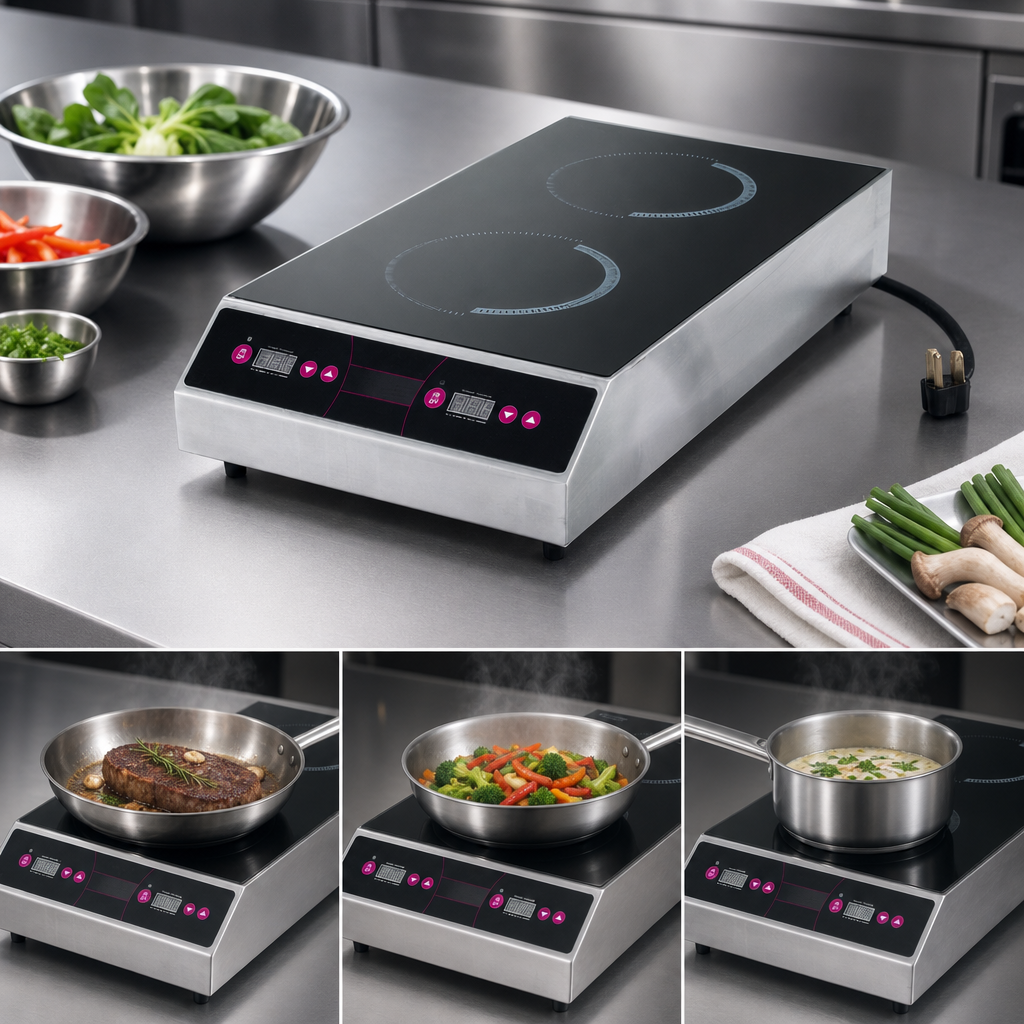

- 100 precise power settings for ultra-responsive temperature control.
- Continuous-duty induction circuitry rated for nonstop, high-volume cooking.
- Industry-leading 90 % energy efficiency—save money & keep kitchens cooler.
- 18-gauge 304 stainless-steel chassis with easy-clean vitro-ceramic top.
- Dual oversized cooling fans extend component life in demanding environments.
- Intuitive sloped control panel with durable, flat-touch keys & bright digital display.
- Comprehensive safeguards:
- Over-heat & empty-pan shut-off
- Pan auto-detection & small-article detection
- Audible/visual “HOT” surface indicator
- Slip-resistant, height-adjustable feet for a level, secure work surface.
- 6 ft (183 cm) cord with NEMA 6-50P plug for quick installation.
- Backed by Vollrath’s 2-year parts & labor warranty.
Technical Specifications
| Item # / Model | 69507 / Ultra Series Dual-Hob |
|---|---|
| Configuration | Countertop, front-to-back hobs (2) |
| Exterior Material | 18-ga 304 stainless steel |
| Cooktop Surface | Smooth vitro-ceramic glass |
| Max Pan Size | 12″ / 30.5 cm (each hob) |
| Dimensions (W × D × H) | 15.87″ × 29.75″ × 5.81″ (40.3 × 75.6 × 14.8 cm) |
| Voltage / Phase | 208–240 V, 50/60 Hz, single-phase |
| Power Output | 3.0 – 3.5 kW per hob (3500 W max) |
| Current Draw | 29.2 A |
| Plug Type | NEMA 6-50P (6 ft cord included) |
| Efficiency | ≈ 90 % |
| Shipping Weight | 63.9 lb / 29 kg |
| Certifications | UL, NSF, cULus, FCC Part 18 |
| Warranty | 2-year parts & labor (see Warranty tab for details) |
Installation & Clearance
- Provide 4″ (10 cm) rear and 1″ (2.5 cm) bottom clearance for ventilation.
- Ambient intake air must not exceed 110 °F (43 °C) while other kitchen equipment is operating.
- Use only flat-bottom, induction-ready cookware 5.75″ – 14″ (14.6 – 35.5 cm) in diameter.
Certifications & Peace-of-Mind
- Meets UL & NSF standards for commercial foodservice.
- Complies with FCC Part 18 for electromagnetic compatibility.
- Covered nationwide by Vollrath’s factory-authorized service network.

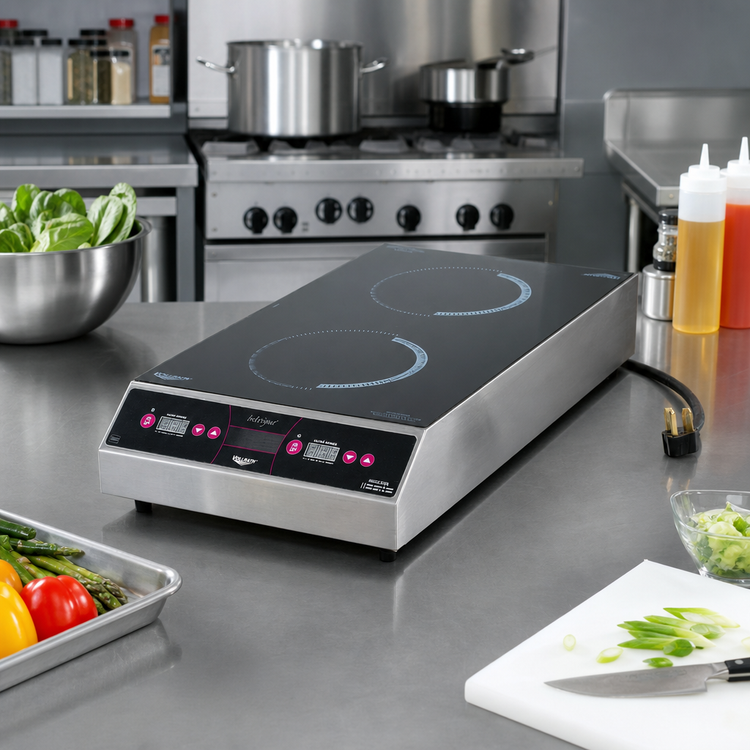

Cookware shown for illustration only and is not included with purchase.
