Vollrath  |  SKU: 40759

Vollrath 40759 Planetary Mixers

$10,285.35
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Owner's manual Warranty sheet
Related Searches
Mixers Planetary Mixers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

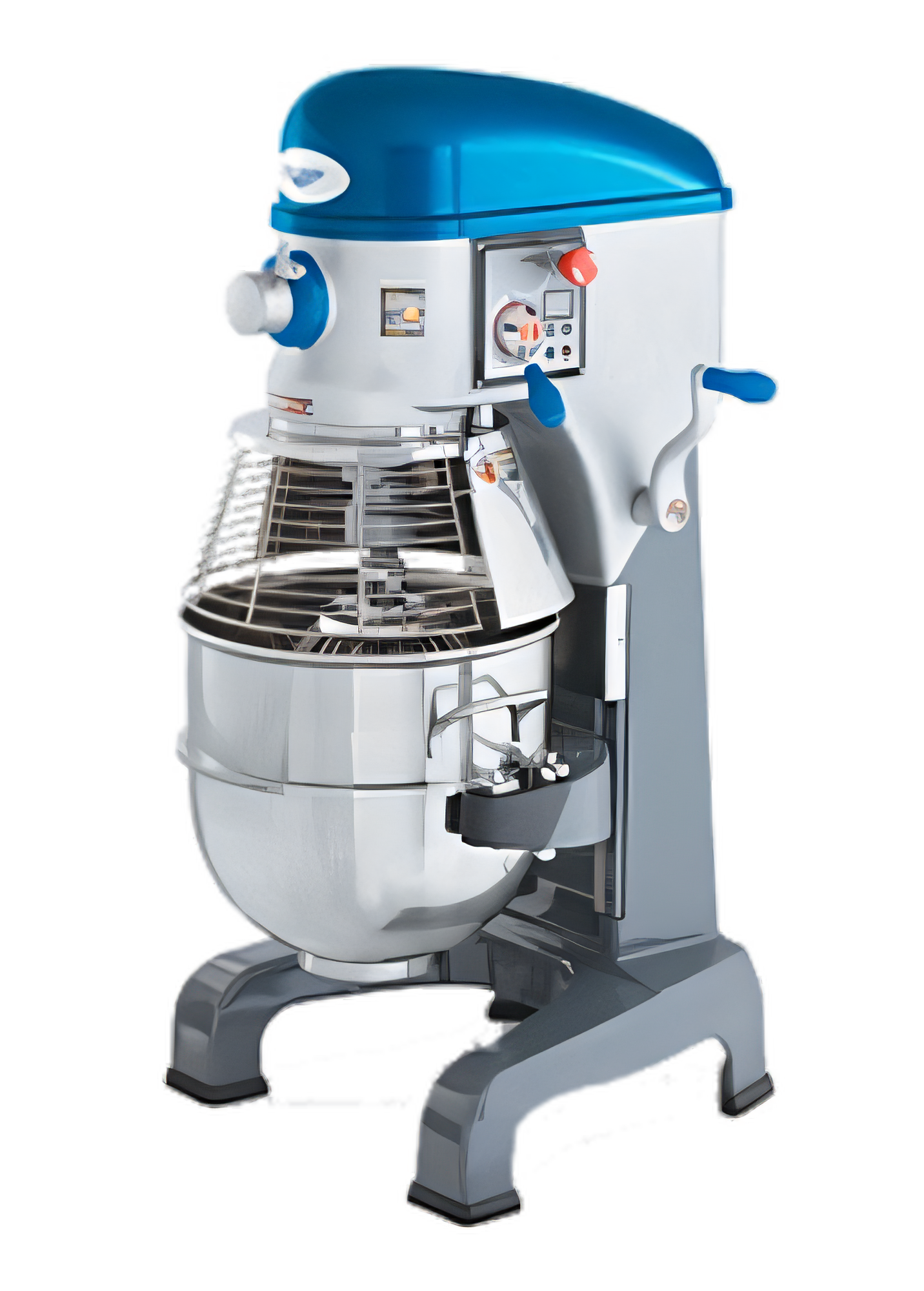

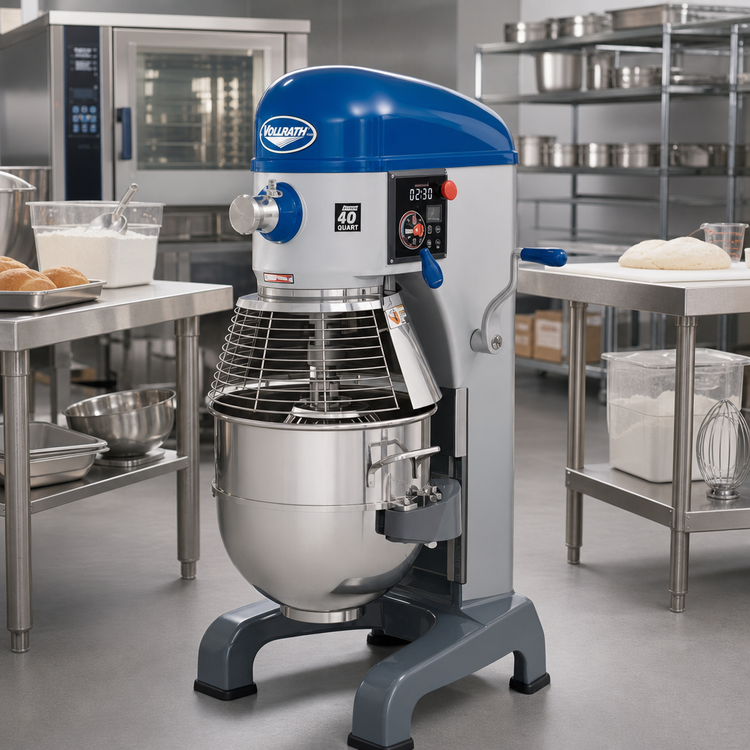

Vollrath MIX1040 40-Qt Floor Planetary Mixer

Item # 40759 • NSF & cETLus Listed

Built for busy bakeries, pizzerias, and institutional kitchens, the Vollrath MIX1040 delivers 40 quarts of mixing muscle in a compact, belt-driven floor model. A powerful 1.5 HP motor, three fixed speeds, and a digital 30-minute timer with automatic stop and audible alert keep production precise and consistent batch after batch.

Key Features

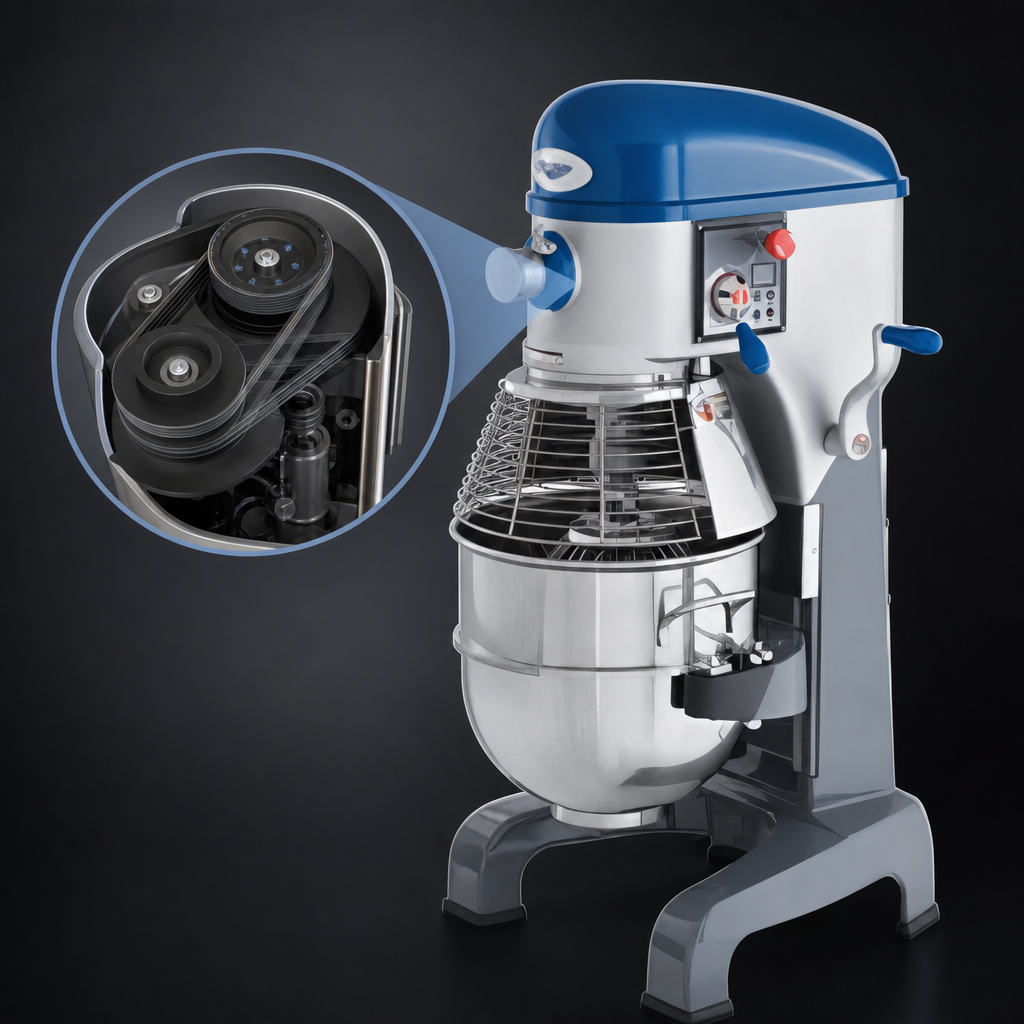

  • Three-speed, belt-driven transmission for smooth, reliable power
  • #12 attachment hub accepts Vollrath meat grinder & vegetable slicer add-ons
  • Digital timer (up to 30 minutes) with automatic stop and audible shut-off signal
  • Thermal overload protection safeguards the 1.5 HP motor
  • Safety cut-switch prevents gear changes while the mixer is running
  • Heavy-duty stainless steel bowl guard with integrated ingredient chute
  • 6 ft (1.8 m) power cord with NEMA 6-15P plug

What’s Included

  • 40 qt stainless steel mixing bowl
  • Dough hook
  • Wire whisk
  • Flat beater
  • Safety bowl guard (installed)

Specifications

Model / Item # MIX1040 / 40759

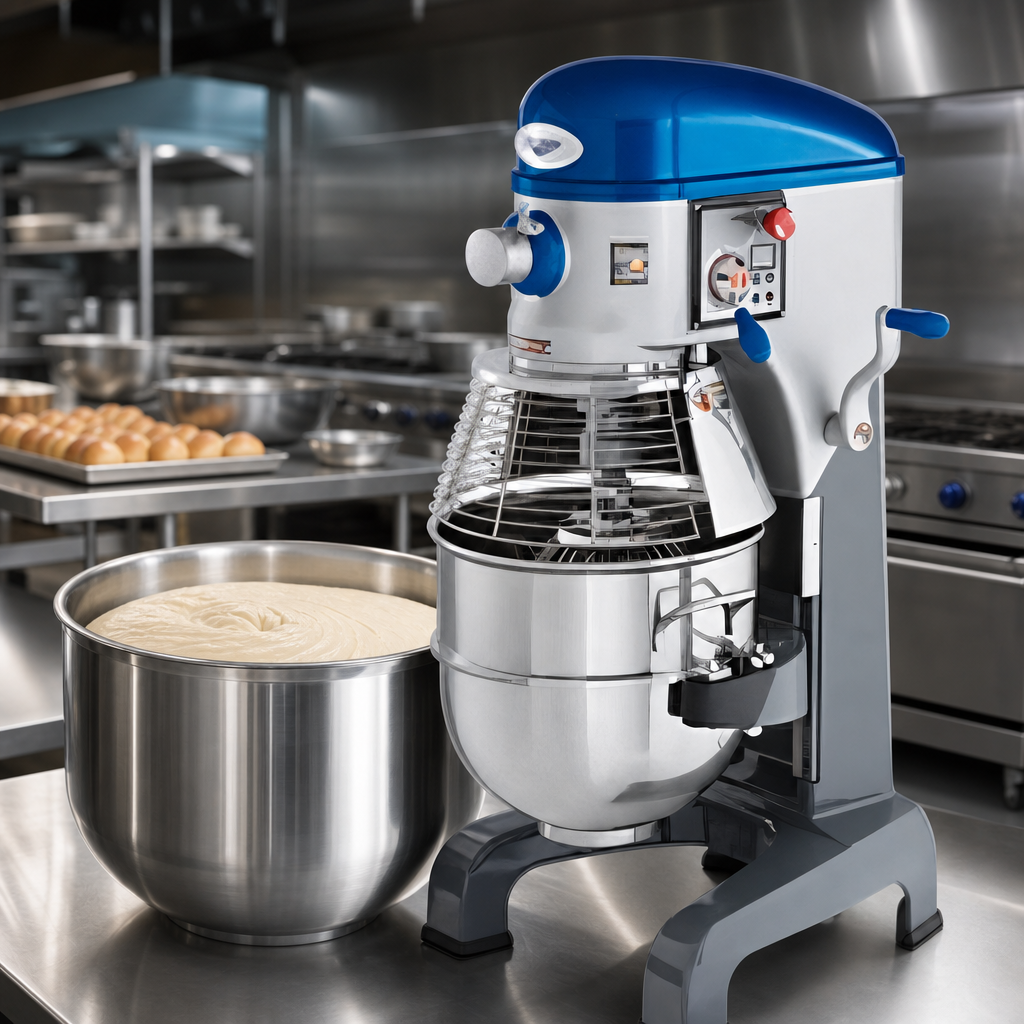

Capacity 40 qt (37.9 L)
Overall Dimensions (W × D × H) 26 ½ in × 26 ⁹⁄₁₆ in × 47 ¹⁄₈ in
(67.3 cm × 67.5 cm × 119.7 cm)
Motor 1.5 HP, belt driven
Speeds 3 fixed
Electrical 208-240 V / 60 Hz / 1-phase, 12 A
Plug Type NEMA 6-15P
Certifications NSF, cETLus

Optional Attachments (sold separately)

  • Meat grinder head (Item # 40786)
  • Vegetable slicer head with plates (Item # 40785)
  • 40 qt → 20 qt reducer kit for small batches (Item # 40787)
Important: Always stop the mixer before shifting gears, and never operate hub attachments while mixing.

Warranty

2 years parts • 1 year labor • 5 years on belts.
See the full policy at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cETLus

Height

47.13in

Width

26.5in

Depth

26.56in

Shipping Weight

560.0lbs

Type

floor model

Hub size

#12 hub

Attachments

bowl guard, bowl, beater, whip, hook

Timer

with timer

Bowl Capacity

30 - 40 quart

Speed

3-speed

Specifications

Planetary Mixer, floor model, 40 quart, 26-1/2"W x 26-/2"D x 47-1/8"H, 3-speed belt driven transmission, #12 attachment hub, digital timer with automatic stop & audible shutoff signal, thermal overload protection, includes: dough hook, wire whisk, flat beater, stainless mixing bowl, safety bowl guard, 1-1/2 HP, 208-240v/60/1-ph, 12 amps, cord with NEMA 6-15P, NSF, cETLus, imported (MIX1040) (Refer to vollrathfoodservice.com for full warranty policy)
