Description

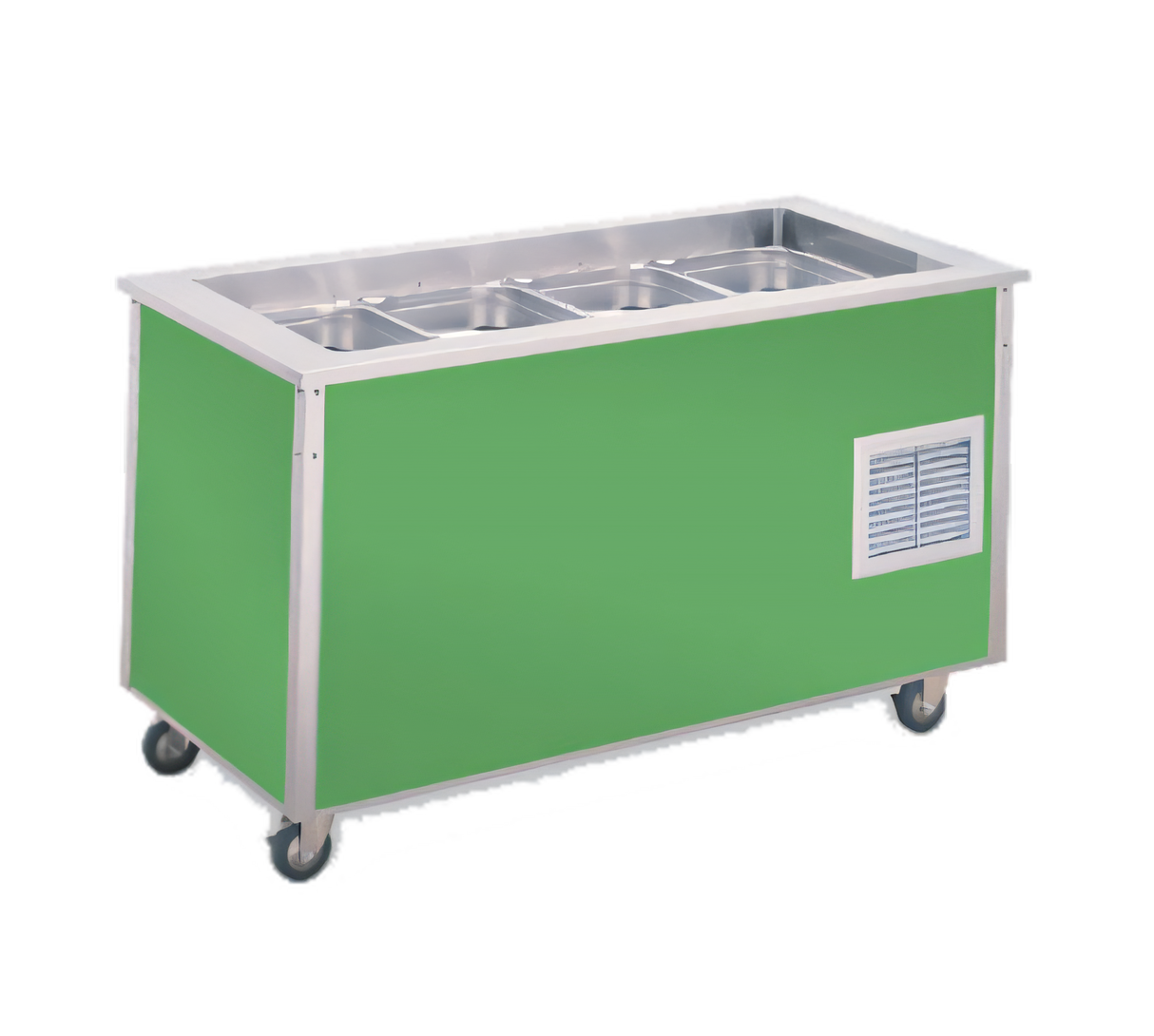

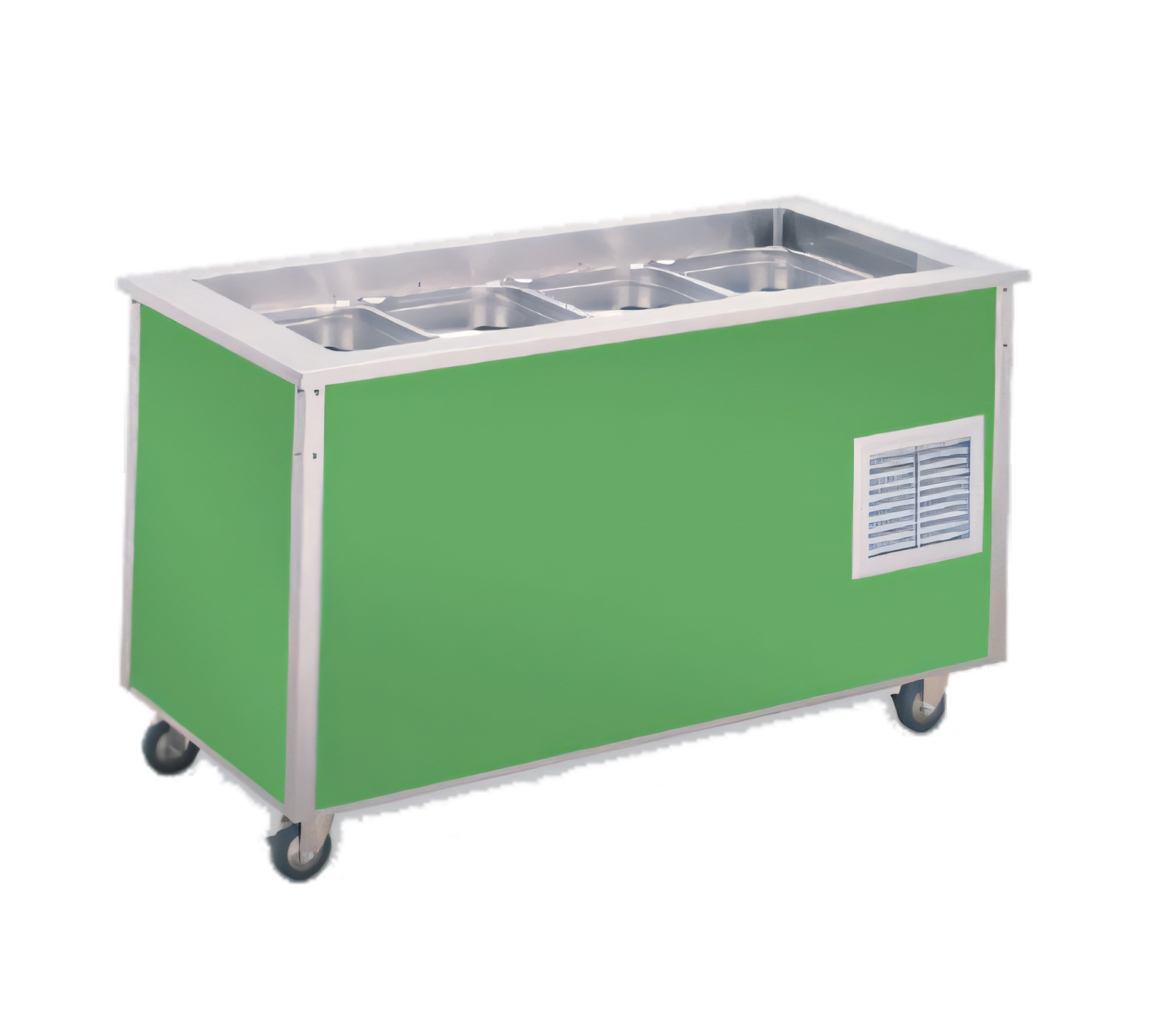

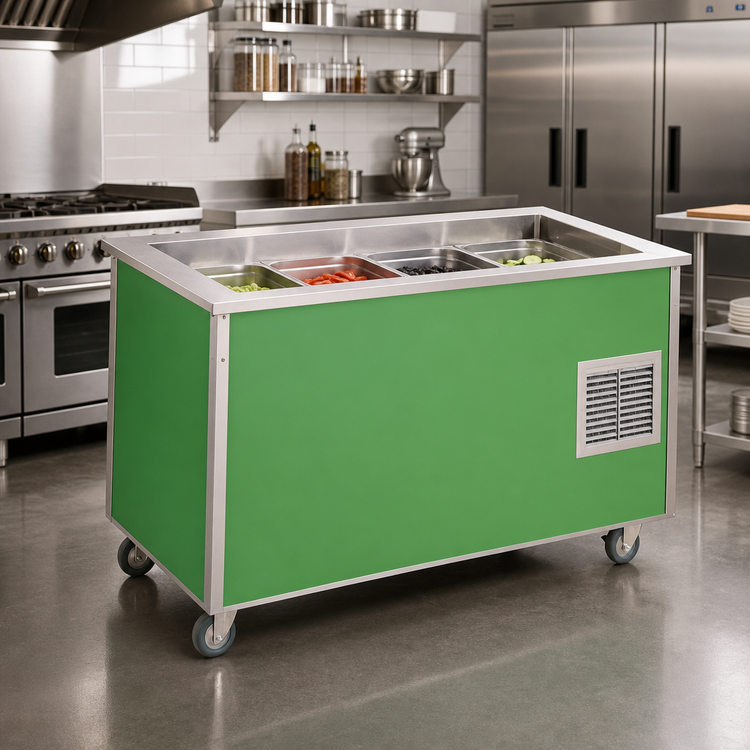

Vollrath 4-Series Signature Server® NSF7 Cold Station – 46 in.

Model 37046  |  Stainless Countertop • Self-Contained R290 Refrigeration

Chill, display and serve with confidence. The Vollrath 4-Series Signature Server® Cold Station delivers NSF7-certified performance in a sleek, mobile footprint that’s built for demanding front-of-house lines and busy back-of-house prep areas alike.

Key Advantages
  • Bloomington-style recessed well positions pans 3 in. below the work surface for a continuous cold-air curtain and better product visibility.

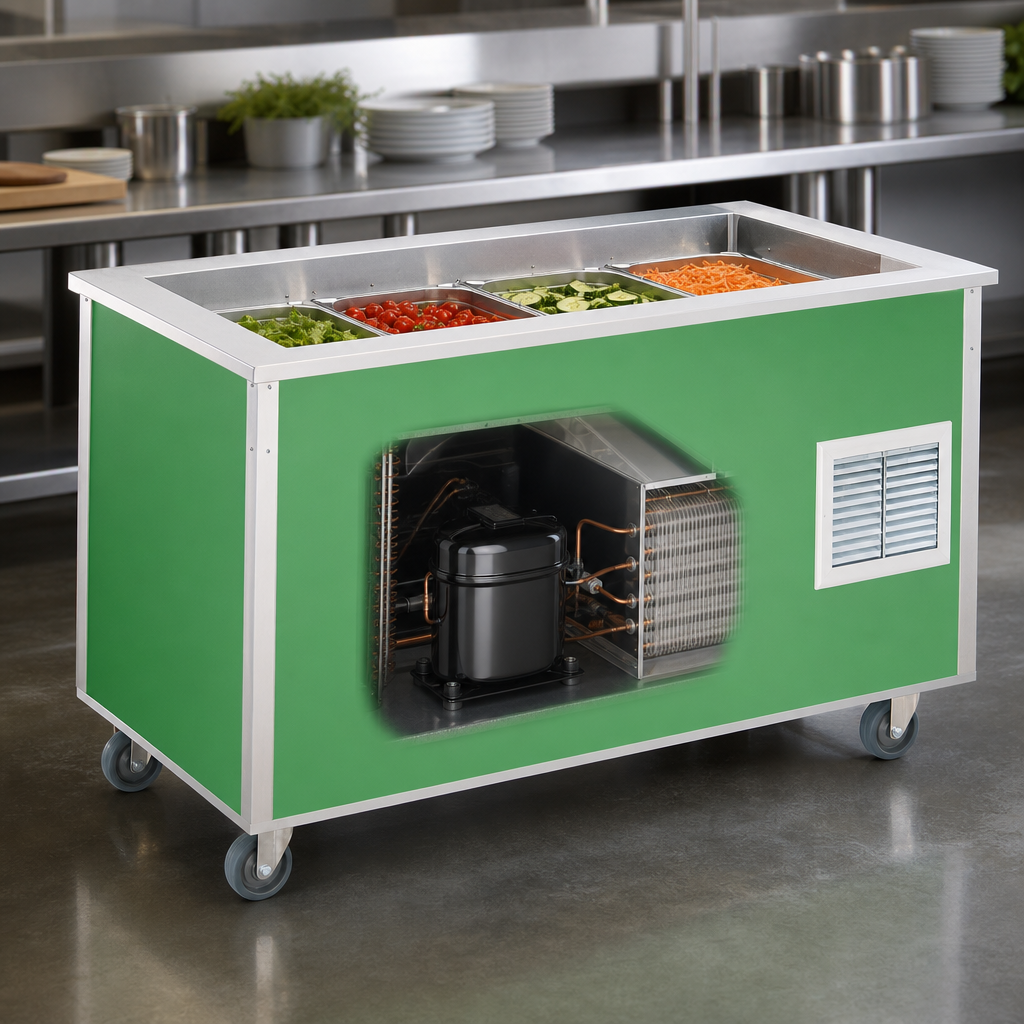

  • Energy-efficient ¼ HP compressor uses eco-friendly R290 refrigerant and draws only 3.8 A on a standard 120 V outlet.
  • Refrigeration coils completely surround the sidewalls and well; foamed-in-place polyurethane insulation locks in the cold.
  • Seamless 300-series stainless-steel well with integral 1 in. drain and operator-side hose speeds cleanup while keeping the customer side spotless.
  • Durable yet lightweight: 18-ga 400-series stainless base and one-piece top resist dents, corrosion and daily wear.
  • Factory-installed 4 in. swivel casters with brakes provide effortless mobility and rock-solid stability.
  • 8 ft (2.4 m) cord with NEMA 5-15P plug—no hardwiring or special circuits required.
  • Made in the USA and backed by Vollrath’s 5-year compressor warranty (see website for details).
Perfect For
  • School & university cafeterias
  • Hotel breakfast & brunch bars
  • Grab-and-go retail merchandising
  • Corporate & healthcare foodservice lines
Technical Specifications
Overall Dimensions 46 in. W × 28 in. D × 34 in. H (117 × 71 × 86 cm)
Display Pan Opening 19 ⅞ in. W × 37 ½ in. L × 6 ⅝ in. D (50.5 × 95.3 × 16.8 cm)
Pan Capacity Accepts full-, half- and third-size pans up to 6 in. deep
Refrigerant R290 (propane), self-contained
Compressor ¼ HP
Electrical 120 V / 60 Hz / 1-phase, 3.8 A, NEMA 5-15P
Certifications NSF7, cULus
Construction One-piece stainless top, 18-ga 400-series base, 300-series well
Mobility 4 in. swivel casters with brakes
Drain 1 in. integral drain with operator-side valve & hose
Origin Made in USA
Installation & Operating Guidance
• Maintain at least 3 in. (7.6 cm) clearance in front of ventilation panels.
• Designed for ambient temperatures up to 86 °F (30 °C).
• Follow all regulations and safety procedures for equipment using R290 refrigerant.
• Altering refrigeration parameters may void the warranty.

For full warranty information, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Brand_name

4-Series Signature Server®

Certifications

NSF, cULus, Made in USA

Height

34.0in

Width

46.0in

Depth

28.0in

Shipping Weight

380.0lbs

Base Finish

specify

Base Construction

vinyl covered steel

Overall Width (side - side)

43" - 48"

Cooling Type

refrigerated

Pan Capacity

(3) pan

Top Construction

stainless steel top

Mobile or Stationary

mobile

Base Design

fully enclosed

Working Height

34"

Specifications

4-Series Signature Server® Stainless Steel Countertop with NSF7 Cold Station, self contained refrigeration, 46"W x 28"D x 34"H, Bloomington-style recessed well displays pans 3" below work surface, coils surround sidewalls, accommodates 6" deep pans, polyurethane foam insulation, standard well drains, seamless display pan well opening 19-7/8" x 37-1/2" x 6-5/8" deep, 1/4 HP, 3.8 amps, NEMA 5-15P, 120v/60/1-ph, cULus, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
