Vollrath  |  SKU: 36651HD

Vollrath 36651HD Steam Tables & Food Wells

$3,554.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Vollrath 36651HD Short-Side 4-Well Marine-Grade Drop-In Hot Well

Rotated full-size wells  •  Infinite controls  •  208-240 V  •  4,000 W

Created for buffet lines, cafeterias, and serving counters with limited depth, this Vollrath Short-Side Modular Hot Drop-In keeps four full-size pans of entrées or sides at safe serving temperatures while giving guests – and staff – an easier reach. Its corrosion-proof marine-grade wells and energy-efficient construction make it a dependable long-term investment.

Key Features

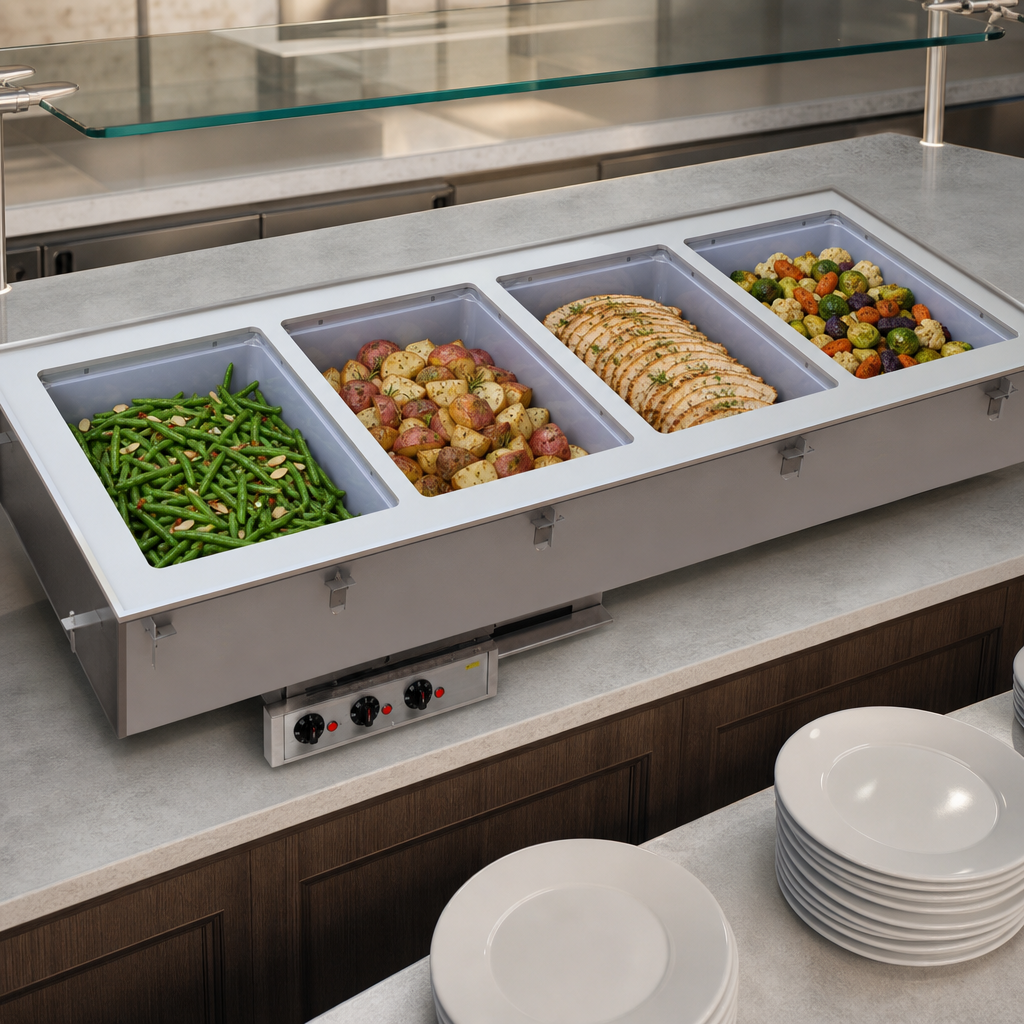

  • Side-rotated wells turn 12" × 20" pans sideways, reducing counter depth to just 18" for a slim footprint.
  • 18 ga SAE 316 marine-grade stainless-steel top delivers superior corrosion resistance to salt, steam & chemicals.
  • Individual infinite controls with power lights on a stainless remote panel (4 ft tether) allow flexible mounting.
  • Standard ½" drains in each well with ball valves and included plug speed daily cleanup.
  • Thick polyurethane foam insulation on all sides—including between wells—boosts temperature stability and efficiency.
  • Full-perimeter drip edge and supplied gasket help keep condensation and spills off your countertop.
  • Ships ready to install: zero-clearance top mount, mounting clips for counters up to 3" thick, 6 ft cord with NEMA 6-30P plug.
  • UL, CUL, and NSF listed; engineered and manufactured in the USA with a two-year limited warranty.

Specifications

Model 36651HD
Pan Capacity 4 full-size (12" × 20") pans, up to 6" deep
Adapter bars recommended for fractional pans.
Control Type Individual infinite controls
Total Wattage 4,000 W (1,000 W per well)
Electrical 208-240 V / 60 Hz / 1-ph · 14.4 – 16.7 A · NEMA 6-30P
Overall Dimensions 88 1/4" L × 18" W (224 × 45.7 cm)
Cutout Dimensions 87 1/2" L × 17 1/4" W (222.3 × 43.8 cm)  ·  7/8" corner radius
Well Size 20" × 12" each  ·  8" deep
Construction 316 marine-grade stainless wells & 18 ga top, stainless exterior housing
Drain ½" drains with individual ball valves (plug included)
Insulation Polyurethane foam on all non-exposed sides
Agency Listings UL, CUL, NSF
Origin Made in USA
Important: For even heat distribution and to meet NSF Standard 4 performance, operate with water (moist heat). Indoor use only.

For complete warranty details, please visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

15.0in

Width

88.56in

Depth

18.0in

Shipping Weight

150.0lbs

Controls

infinite controls

Insulated or Non-Insulated

insulated

Style

individual pans

Construction

stainless steel construction

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (4) pan, infinite controls, standard drains, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, NEMA 6-30P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 88-1/4" x 18", cutout dimensions 87-1/2" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
