Vollrath 3665130HD Steam Tables & Food Wells
Description

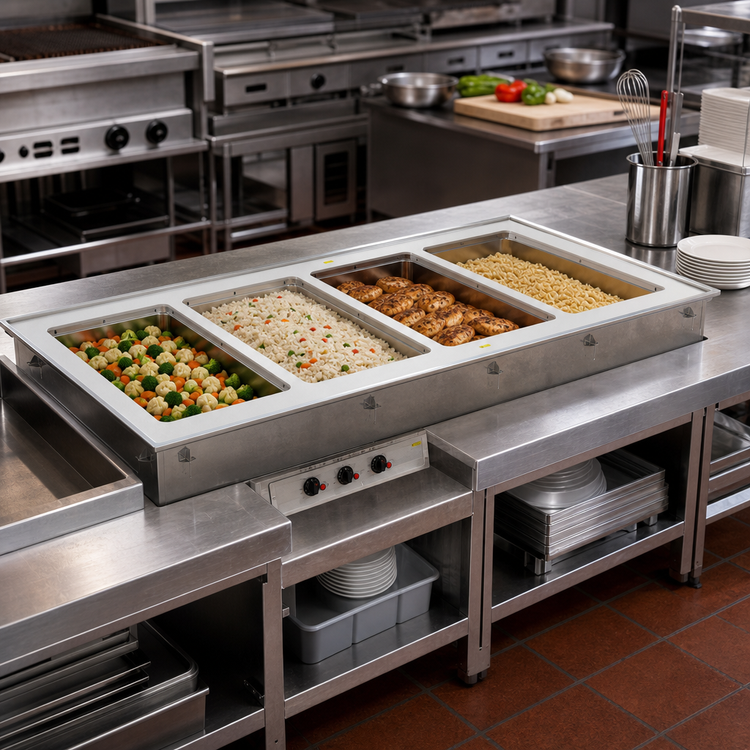

Vollrath 4-Pan Short-Side Modular Hot Well Drop-In
Model 3665130HD · Marine-Grade Wells · Auto-Fill + Manifold DrainCreate a slim, customer-friendly serving line without sacrificing holding power. This Vollrath Short-Side Hot Well turns four full-size pans sideways, giving you the narrow footprint you need for tight counters and effortless pan access—all while delivering 4000 watts of reliable wet-bath heat.
Why You’ll Love It

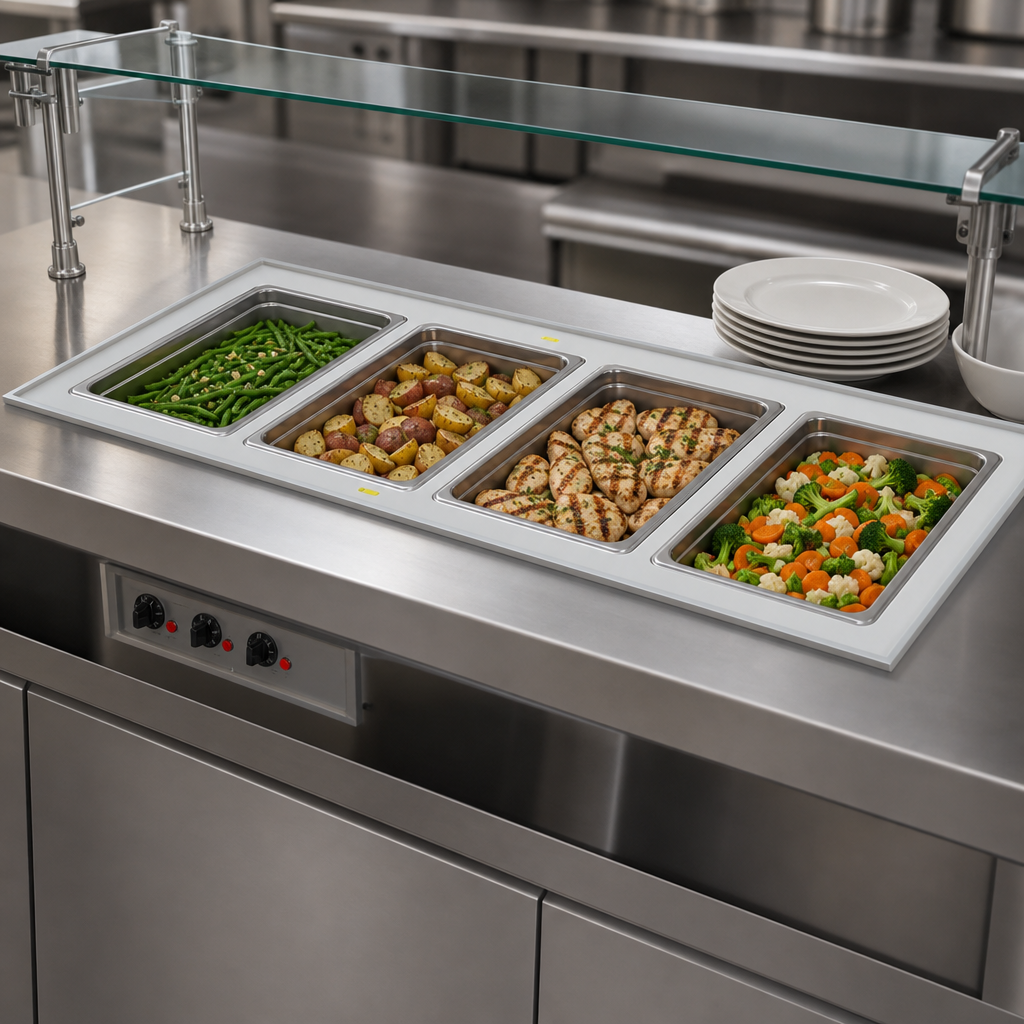

- Space-saving footprint: only 18 in. front-to-back thanks to rotated pan orientation.
- SAE 316 marine-grade stainless wells resist pitting and corrosion from salt, acidic foods and chemicals.
- Auto-fill system maintains water level automatically—no babysitting required.
- 1 in. copper manifold drain with master shut-off lets you evacuate all wells at once.
- Individual infinite controls with power indicators give operators precise holding temperatures.
- Full-perimeter drip edge and included drain plug keep counters clean and dry.
- Thick polyurethane foam insulation on every side (and between wells) maximizes energy efficiency.
- Ships with 6 ft. cord and NEMA 6-30P plug—no hard-wiring needed.
- Made in the USA and backed by a 2-year limited Vollrath warranty.
Specifications
| Pan Capacity | 4 full-size, up to 6 in. (15.2 cm) deep 20 in. × 12 in. well opening — 8 in. deep drawn wells |
|---|---|
| Controls | 4 independent infinite (manual) thermostats |
| Heating Output | 1000 W per well | 4000 W total |
| Electrical | 208-240 V / 60 Hz / 1-ph • 14.4 – 16.7 A • NEMA 6-30P |
| Overall Dimensions | 88 9⁄16 in. L × 18 in. W |
| Counter Cutout | 87 1⁄2 in. L × 17 1⁄4 in. W • 7⁄8 in. corner radius |
| Material | 18-ga. 316 marine-grade SS wells • stainless exterior housing |
| Drain | 1 in. copper manifold with master valve • ½ in. individual ball valves |
| Certifications | UL, cUL, NSF |
| Origin / Warranty | Made in USA • 2-year parts & labor (see vollrathfoodservice.com for details) |
Easy, Zero-Clearance Installation
- Top-mount drop-in design; gasket supplied for under-counter drip edge.
- Includes mounting clips for counters up to 3 in. thick.
- 4 ft. tethered stainless control panel allows flexible placement on host station or cabinet face.
Adapter bars are recommended when using fractional pans. Sheet-pan adapter (item 19186) sold separately. Orders for drop-ins cannot be cancelled or returned once placed.
