Vollrath | SKU:
3665130
Vollrath 3665130 Steam Tables & Food Wells
$4,241.10
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3665130 Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3665130 Steam Tables & Food Wells
$4,241.10
Unit price
/
Unavailable
Description
Vollrath Short-Side 4-Well Hot Drop-In

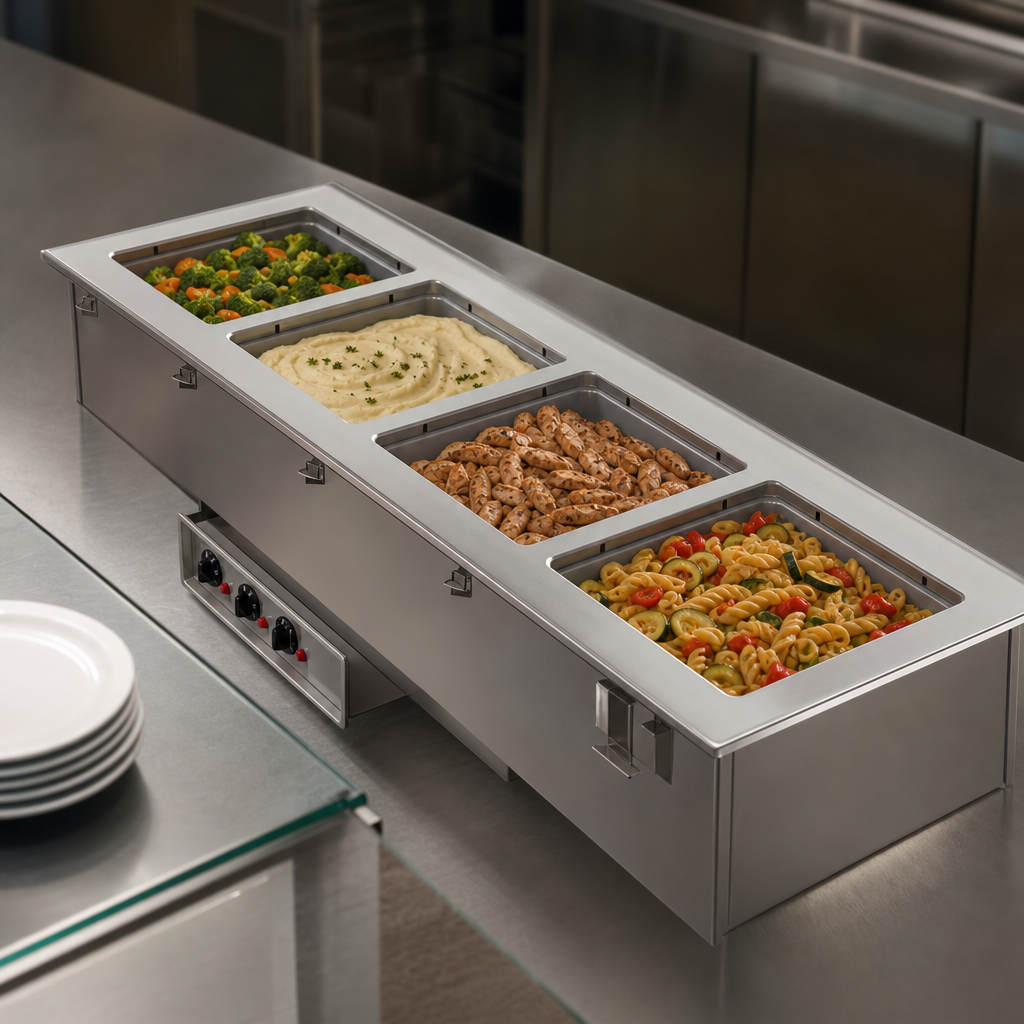

Item # 3665130 – Infinite controls • Auto-Fill • Manifold drainGive guests hot, fresh food without sacrificing counter space. This Vollrath short-side drop-in rotates four full-size pans sideways, creating a slimmer 18-inch footprint that’s easier to reach across buffet lines, kiosks, and cafés.
Key Features
- Narrow 18 in. front-to-back depth – ideal when space is tight or when food is pulled forward.
- Auto-fill system maintains proper water level for consistent, moist heat.
- 1 in. copper manifold drain with master shut-off for fast, single-point emptying.
- Independent infinite controls and power lights for each well on a 4 ft tethered stainless control panel.
- 300-series (18/8) stainless-steel top flange & drawn wells with full-perimeter drip edge.
- Thick polyurethane foam insulation on all sides – including between wells – maximises efficiency.
- Accepts full-size or fractional pans up to 6 in. deep (adapter bars recommended for fractional pans).
- Ships ready to install: gasket, mounting clips for counters ≤3 in. thick, 6 ft cord & NEMA 6-30P plug.
- Zero-clearance design; no hard-wiring required.
- Made in the USA; UL, CUL, NSF listed.
At-a-Glance Specs
| Wells / Capacity | 4 wells • accepts four 12 × 20 in. pans (up to 6 in. deep) |
|---|---|
| Well interior | 20 × 12 in. each • 8 in. deep |
| Heating power | 1 kW per well • 4 kW total |
| Controls | Infinite (manual) dial per well |
| Electrical | 208-240 V / 60 Hz / 1-ph • 14.4 – 16.7 A • NEMA 6-30P |
| Overall dimensions | 88 ¼ × 18 in. |
| Counter cut-out | 87 ½ × 17 ¼ in. • 7⁄8 in. corner radius |
| Construction | 18/8 stainless steel wells & flange • Polyurethane insulation |
| Drain | 1 in. manifold w/ plug • Individual ball valves per well |
| Water feed | Integrated auto-fill (factory installed) |
| Agency approvals | UL, CUL, NSF |
| Origin | Made in USA |
Important: NSF 4 performance requires moist heat. Operate with water in wells at all times for even heating and to prevent damage.
Warranty & Service
Covered by Vollrath’s standard limited warranty. Full details available at vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, UL, Made in USA
Height
21.5in
Width
88.56in
Depth
18.0in
Shipping Weight
210.0lbs
Controls
infinite controls
Style
individual pans
Construction
stainless steel construction
Insulated or Non-Insulated
insulated
Pan Capacity
(4) full size (12" x 20")
Drain
with drain
Wet or Dry operation
wet
Specifications
Short Sided Hot Well, Drop-In, (4) pan, infinite controls, autofill & manifold drain, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, NEMA 6-30P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 88-1/4" x 18", cutout dimensions 87-1/2" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
