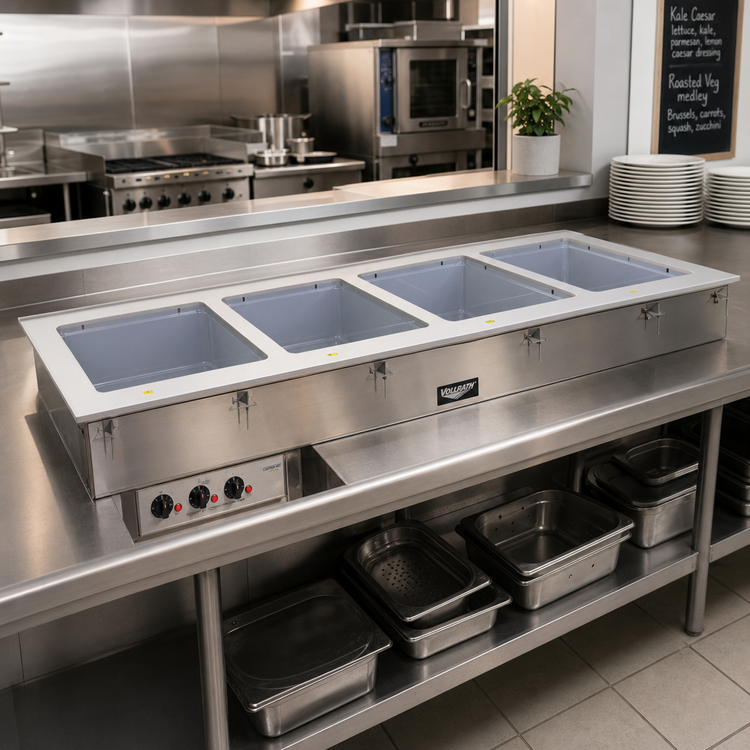

Vollrath Short-Side Modular 4-Pan Drop-In Hot Well with Manifold Drain and Infinite Controls, 208-240V
Vollrath Short-Side Modular 4-Pan Drop-In Hot Well with Manifold Drain and Infinite Controls, 208-240V
Marine-grade 316 stainless steel wells; turns full-size pans sideways for a narrower presentation.
This modular short-side hot well saves counter depth by rotating pans sideways while delivering precise infinite heat control.
- Short-side drop-in design turns full-size pans sideways for a narrower presentation and easier reach.
- Four-pan capacity with infinite controls lets operators fine-tune holding heat at each well.
- Marine-grade 316 stainless steel wells and stainless steel exterior improve corrosion resistance.
- Thick polyurethane foam insulation and a full-perimeter drip edge help retain heat and protect counters.
- Manifold drain, included drain plug, and cord-and-plug power connection simplify installation and cleanup.
- Designed for wet operation; water is required for even heating of the food product.
Overall Dimensions:
88.56"W x 18.0"D x 21.5"HProduct Weight:
218.0 lbShort-Side Pan Orientation
Rotates full-size pans sideways for a narrower presentation and easier access from the service side.
Marine-Grade Wells
Drawn SAE Type 316 stainless steel wells provide enhanced corrosion resistance.
Infinite Individual Controls
Stainless steel control panel includes individual infinite controls and power indicator lights for each well.
Manifold Drain System
1 inch copper tubing manifold drain includes a master shutoff, and a drain plug is included.
Insulated Construction
Thick polyurethane foam insulation on all non-exposed sides and between wells helps hold temperature.
Plug-In Power Connection
Includes a 6 foot cord with plug and does not require hard-wiring.
Easy Installation
Standard mounting clips fit counters up to 3 inches thick, and a gasket is included for the drip edge.
Pan Compatibility
Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.
Certifications & Compliance
Warranty & Protection
2-year warranty against defects in materials and workmanship.
