Description

Vollrath Short-Side Hot Well Drop-In – 4-Pan, Infinite Controls

Model 36651 | Standard Drain | 1000 W per well

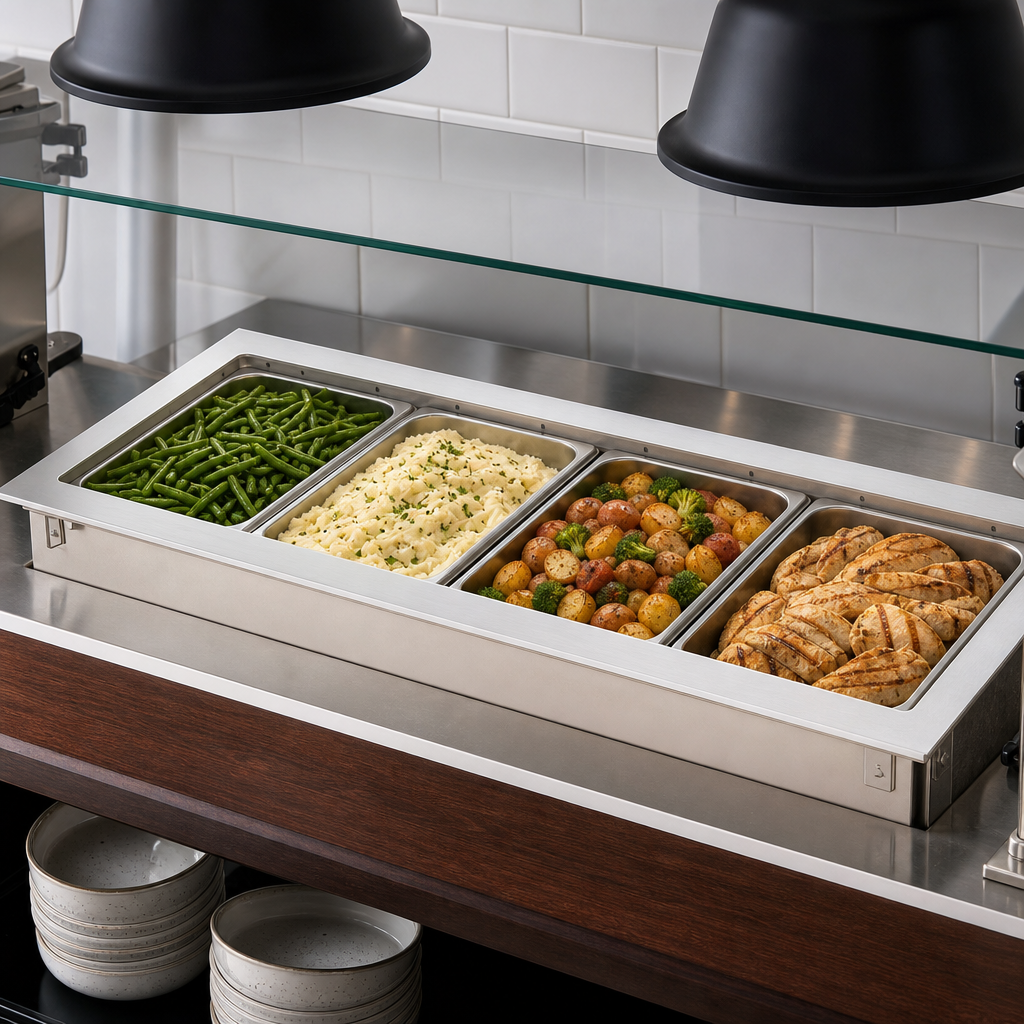

Give your serving line a slimmer profile without sacrificing capacity. Vollrath’s Short-Side Hot Well rotates full-size pans sideways, trimming the counter depth to only 18 inches and placing hot food within easy reach of guests and staff alike.

Key Features & Benefits
  • Side-turned wells create a narrow 18" (46 cm) footprint for space-restricted counters.
  • 18/8 (300 series) stainless-steel top flange and drawn wells stand up to heavy, everyday use.
  • Foamed-in-place polyurethane insulation on all non-exposed surfaces, including between wells, boosts energy efficiency.
  • Full perimeter drip edge controls condensation and keeps counters dry.
  • ½" drains with individual ball valves; drain plug included for easy cleaning.
  • Remote stainless-steel control panel features individual infinite controls and power lights — 4 ft (122 cm) tether allows flexible mounting.
  • 6 ft (1.8 m) cord with NEMA 6-30P plug — no hard-wiring required.
  • Accepts full-size or fractional pans up to 6" deep (adapter bars recommended for fractional pans).
  • Zero-clearance installation; indoor use.
  • UL, CUL, and NSF listed; Made in the USA.
Technical Specifications
Capacity 4 full-size pans (sideways)
Controls Infinite – one per well
Total Power 4000 W (1000 W per well)
Electrical 208-240 V / 60 Hz / 1-ph  • 14.4 – 16.7 A  • NEMA 6-30P
Overall Dimensions 88 1⁄4" L × 18" W (224.0 cm × 45.7 cm)
Cut-out Dimensions 87 1⁄2" L × 17 1⁄4" W  • 7⁄8" corner radius
Well Interior (each) 20" L × 12" W × 8" D
Drain ½" standard drain with individual valves
Cord Length 6 ft (1.8 m)
Certifications UL | CUL | NSF
Origin Made in USA

To meet NSF 4 performance, operate with water to maintain moist heat. Complete warranty details are available at VollrathFoodService.com.

Important: Orders for drop-in units cannot be cancelled or returned once placed.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

15.0in

Width

88.56in

Depth

18.0in

Shipping Weight

150.0lbs

Controls

infinite controls

Style

individual pans

Construction

stainless steel construction

Insulated or Non-Insulated

insulated

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (4) pan, infinite controls, standard drains, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, NEMA 6-30P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 88-1/4" x 18", cutout dimensions 87-1/2" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
