Vollrath 36650HD Steam Tables & Food Wells
Description
Vollrath 36650HD Short-Side Drop-In Hot Well – 4 Wells

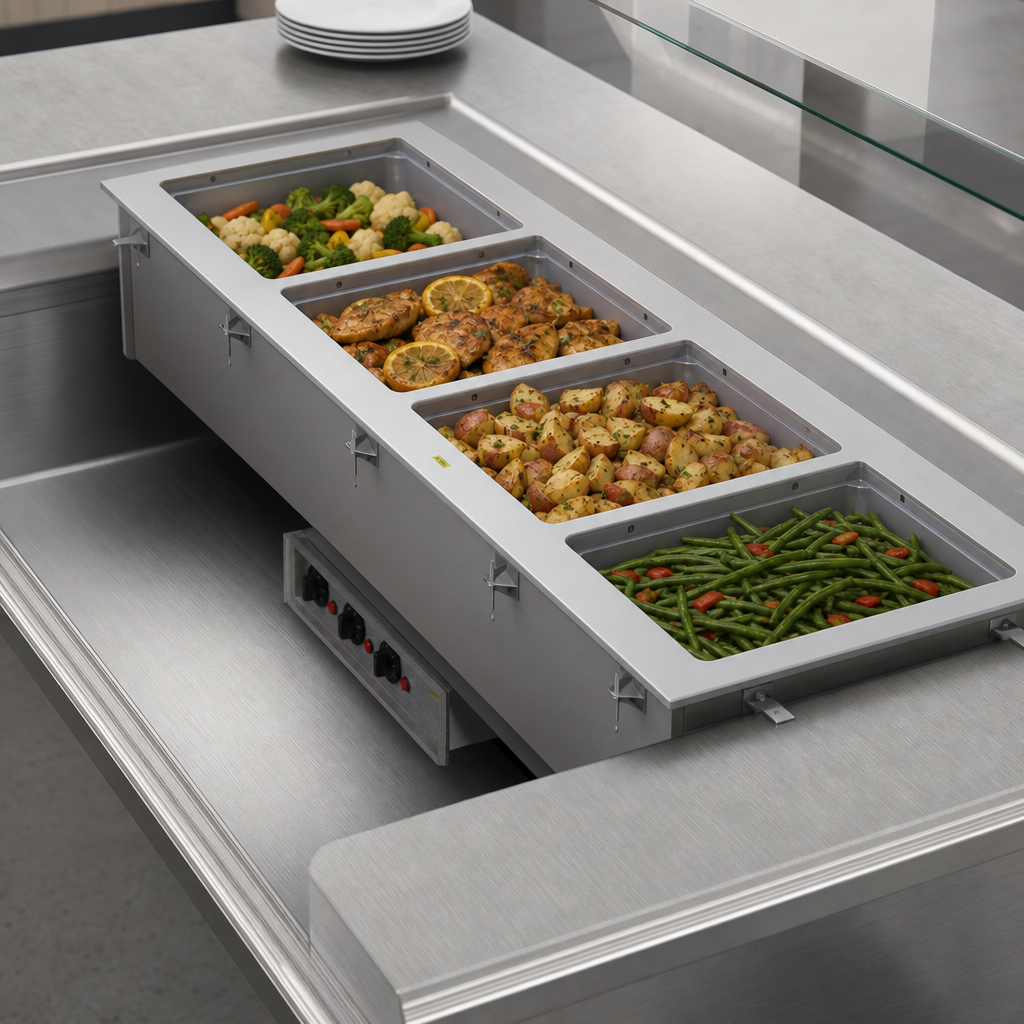

Marine-grade, thermostatically-controlled hot holding in a slim 18-inch footprintGive your serving line more elbow room without sacrificing capacity. The 36650HD turns four full-size pans sideways so staff and guests enjoy a comfortable reach, while Vollrath’s 18-gauge 316 stainless steel well fights corrosion in the toughest commercial kitchens. Plug it in, fill with water, and hold menu items safely and attractively all day long.
Why you’ll love it
- Space-saving 18 in depth – perfect for shallow counters or when food is pulled forward for service.
- (4) full-size 12" × 20" wells (8" deep) deliver a full 4 kW of reliable hot holding power.
- Individual thermostatic controls with pilot lights hold each well independently for maximum menu flexibility.
- 18-gauge SAE 316 marine-grade stainless steel top resists pitting & corrosion from salt, acidic foods and chemical cleansers.
- Foamed-in-place polyurethane insulation on all sides – including between wells – boosts efficiency and keeps countertops cool.
- Full-perimeter drip edge and supplied gasket protect the counter from moisture.
- Standard ½" drains with individual ball valves plus included drain plug for quick clean-up; no hard plumbing required.
- 6 ft cord with NEMA 6-30P plug – no hard-wiring needed.
- Stainless steel remote control panel on a 4 ft tether allows flexible front- or rear-mount placement.
- Zero-clearance installation & mounting clips for counters up to 3" thick simplify drop-in retrofit or new builds.
- UL, cUL & NSF listed; Made in USA and backed by Vollrath’s 2-year HD warranty.
At-a-glance specs
| Model | 36650HD |
|---|---|
| Capacity | (4) full-size 12" × 20" pans up to 6" deep |
| Well dimensions (each) | 20" L × 12" W × 8" D |
| Overall dimensions (W × D) | 88 ¼" × 18" |
| Counter cut-out (W × D) | 87 ½" × 17 ¼" • 7⁄8" corner radius |
| Total wattage | 4,000 W (1,000 W per well) |
| Electrical | 208–240 V / 60 Hz / 1-phase • 14.4 – 16.7 A |
| Plug | NEMA 6-30P, 6 ft cord |
| Controls | 4 independent thermostatic knobs with indicator lights |
| Drain | ½" per-well ball valve (drain plug included) |
| Construction | 18-ga 316 stainless top, stainless exterior housing, foamed insulation |
| Certifications | UL, cUL, NSF |
| Origin / Warranty | Made in USA • 2-year limited warranty* |
*For complete warranty terms please visit vollrathfoodservice.com. This drop-in is designed for wet operation only; always keep wells filled with water for even heating. Orders for modular drop-ins are final and cannot be cancelled or returned.
