Vollrath  |  SKU: 3665030HD

Vollrath 3665030HD Steam Tables & Food Wells

$4,899.75
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

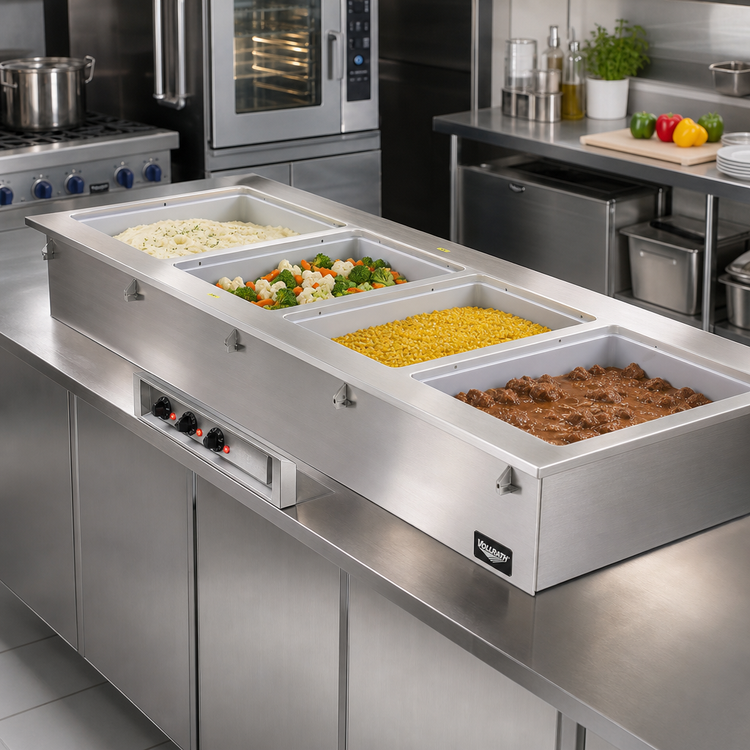

Vollrath 4-Well Short-Side Modular Hot Drop-In – Marine-Grade, Auto-Fill & Manifold Drain

Model 3665030HD · Thermostatic Controls · NEMA 6-30P

Serve hot menu items in a tighter footprint without sacrificing capacity. This Vollrath Short-Side Hot Well turns four full-size pans sideways, creating an 18-inch deep station that’s easier for staff and guests to reach—ideal for inline serving counters, buffet islands, and kitchens short on front-to-back space.

Key advantages

  • Four (4) full-size wells, 1000 W each — 4000 W total heating power.
  • Short-side orientation delivers a narrow 18 in (45.7 cm) counter depth.
  • 18 ga / 316 marine-grade stainless steel top resists salts, chlorides and harsh cleaners.
  • Stainless steel exterior housing with thick polyurethane foam insulation on every side, including between wells.
  • Thermostatic controls with individual power lights for precise, energy-efficient holding.
  • Auto-fill system maintains correct water level for consistent steam heat.
  • 1" copper manifold drain with master shut-off, plus ½" ball valves on each well; drain plug included.
  • Full-perimeter drip edge and supplied gasket keep condensation off the counter.
  • Ships with 6 ft (1.8 m) cord & NEMA 6-30P; no hard-wiring required.
  • Zero-clearance, top-mount installation  — mounting clips for counters up to 3" thick included.
  • UL, cULus & NSF listed; proudly Made in the USA.

Technical specifications

Capacity 4 full-size steam table pans  (accepts fractional pans with adapter bars)
Control type Thermostatic, remote panel with 4 ft (1.22 m) tether
Total wattage 4000 W (1000 W per well)
Electrical 208-240 V / 60 Hz / 1-phase  · 14.4 – 16.7 A  · NEMA 6-30P
Well size (each) 20" L × 12" W × 8" D  (50.8 × 30.5 × 20.3 cm)
Overall dimensions 88 1/4" L × 18" W  (224.2 × 45.7 cm)
Counter cut-out 87 1/2" L × 17 1/4" W  · 7/8" corner radius
Drain 1" manifold with master shut-off  + ½" individual ball valves; plug supplied
Construction 316 marine-grade stainless well, stainless housing, full foam insulation
Certifications UL, cULus, NSF
Country of origin United States of America

Ideal applications

  • Breakfast & lunch service lines
  • Self-serve buffets & cafeterias
  • Concessions and stadium suites
  • Hotels, resorts and cruise ships (marine-grade stainless is perfect for coastal venues)
Important: For NSF 4 compliance and even heat distribution, operate with water in the well at all times. This unit is designed for holding pre-heated foods, not for rethermalizing from cold.

Drop-ins are built to order and cannot be cancelled or returned.
Refer to the full warranty policy at  vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

21.5in

Width

88.56in

Depth

18.0in

Shipping Weight

362.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Controls

thermostatic controls

Pan Capacity

(4) full size (12" x 20")

Construction

stainless steel construction

Drain

with drain

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (4) pan, thermostatic controls, autofill & manifold drain, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, NEMA 6-30P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 88-1/4" x 18", cutout dimensions 87-1/2" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
