Description

Vollrath Short-Side Modular Hot Drop-In Well – 4 Pan

Model 3665020HD | Marine-Grade 316 SS | Manifold Drain

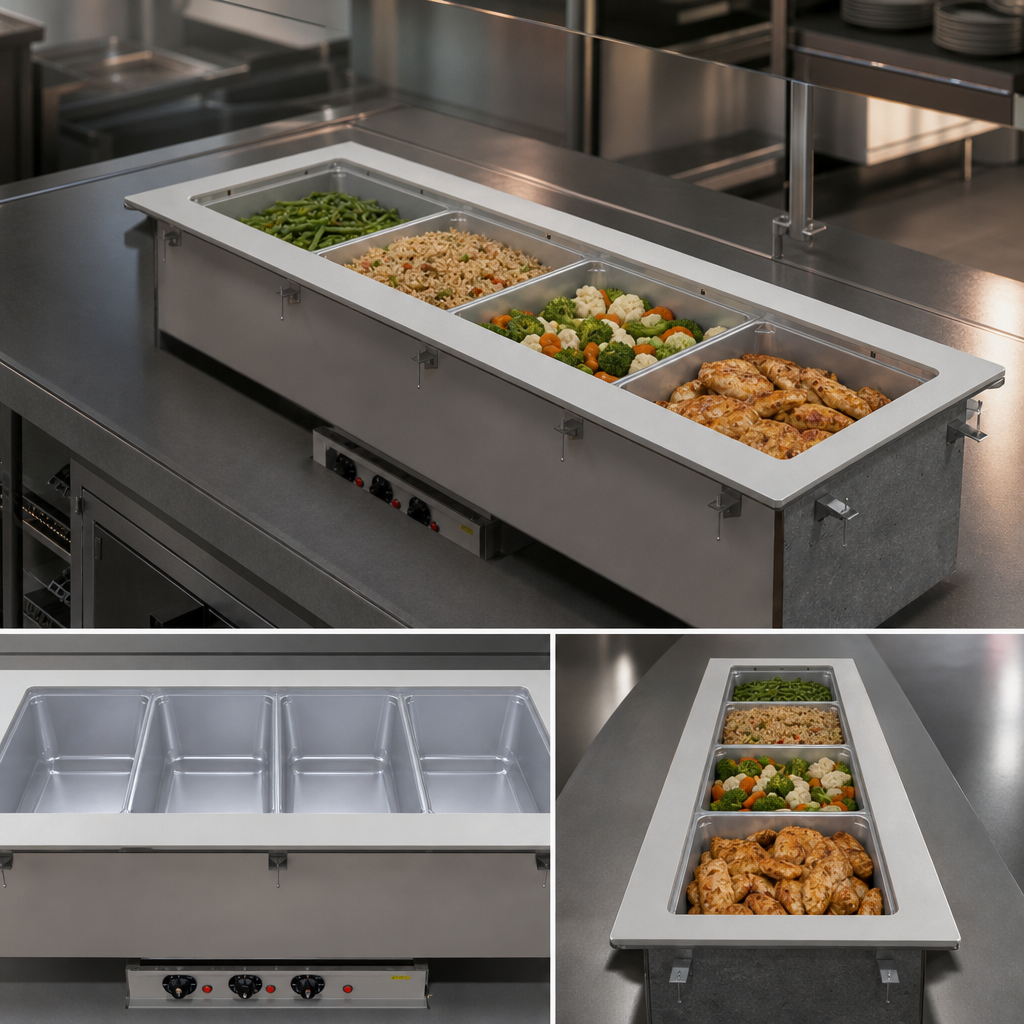

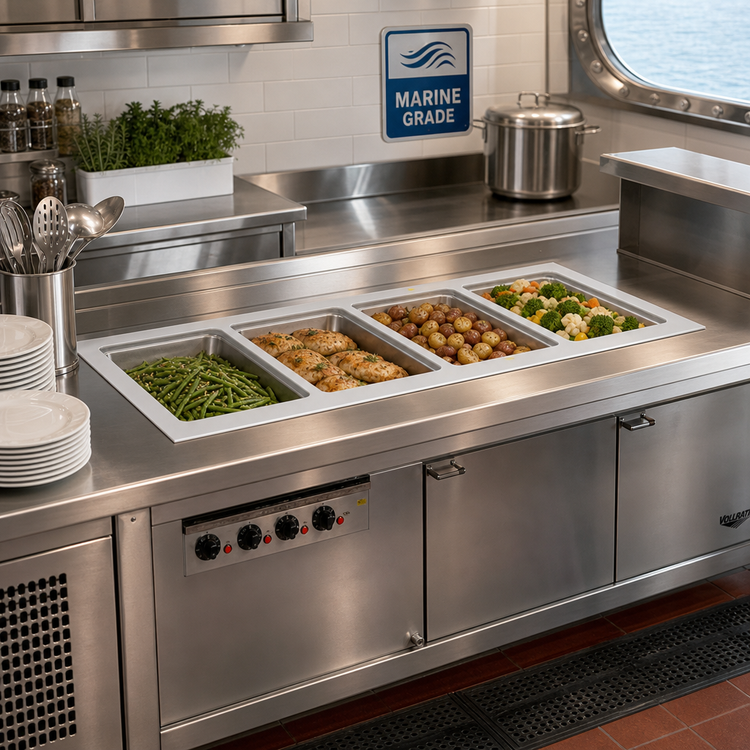

Give every guest a better reach without giving up capacity. This four-well Short-Side Hot Drop-In rotates full-size pans sideways, trimming counter depth to just 18 inches while delivering powerful, even heat. Built from corrosion-proof 316 stainless steel and fully insulated, it’s the durable, plug-and-play solution for buffets, kiosks and tight cooklines.

Why you’ll love it
  • Side-turned wells create a narrow 18" (45.7 cm) front-to-back footprint for easy reach & space savings.
  • 18-gauge 316 marine-grade stainless steel top resists pitting from salt, acids and harsh cleaners.
  • Independent thermostatic controls with power lights hold foods safely without constant monitoring.
  • Factory-installed 1" copper manifold drain with master shut-off and ½" ball valves on each well.
  • Full-perimeter drip edge and foamed-in-place polyurethane insulation keep counters dry and surfaces cool.
  • Ships ready to install: remote stainless control panel (4' tether), mounting clips, 6' cord & NEMA 6-30P plug.
  • Zero-clearance design—ideal for flush, top-mount installations up to 3" (7.6 cm) thick.
  • UL, C-UL & NSF listed; proudly made in the USA.
Capacity

Holds four full-size steam table pans (12" × 20") or fractional equivalents up to 6" (15.2 cm) deep. Use adapter bars when mixing fractional pans.

Technical specifications
Number of wells 4
Control type Independent thermostatic
Total wattage 4,000 W (1,000 W per well)
Electrical 208-240 V / 60 Hz / 1-phase  •  14.4-16.7 A
Plug NEMA 6-30P (6' / 1.8 m cord)
Drain 1" manifold with master shut-off + ½" individual well valves
Well interior (each) 20" × 12" (50.8 × 30.5 cm)  •  8" (20.3 cm) deep
Overall dimensions 88-1/4" L × 18" W (224.2 × 45.7 cm)
Cutout dimensions 87-1/2" L × 17-1/4" W (222.3 × 43.8 cm)  •  7/8" corner radius
Construction 316 SS top, stainless exterior housing, foamed-in insulation
Certifications UL, C-UL, NSF
Origin Made in USA
Perfect for
  • Buffets & cafeterias with shallow counters
  • Mobile serving stations & kiosks
  • Back-of-house lines needing quick, ergonomic access
  • Coastal or high-salinity environments demanding extra corrosion resistance
Important: To meet NSF 4 standards, operate wells with water at all times. Unit is for holding pre-heated food, not for rethermalizing. Drop-ins cannot be canceled or returned once ordered.

Refer to vollrathfoodservice.com for complete installation & warranty details.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

21.5in

Width

88.56in

Depth

18.0in

Shipping Weight

199.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Controls

thermostatic controls

Pan Capacity

(4) full size (12" x 20")

Construction

stainless steel construction

Drain

with drain

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (4) pan, thermostatic controls, manifold drain, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, NEMA 6-30P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 88-1/4" x 18", cutout dimensions 87-1/2" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
