Vollrath  |  SKU: 36650

Vollrath 36650 Steam Tables & Food Wells

$3,052.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Vollrath 4-Well Short Side Hot Drop-In

Model 36650 • Thermostatic • Standard Drains • 208-240 V

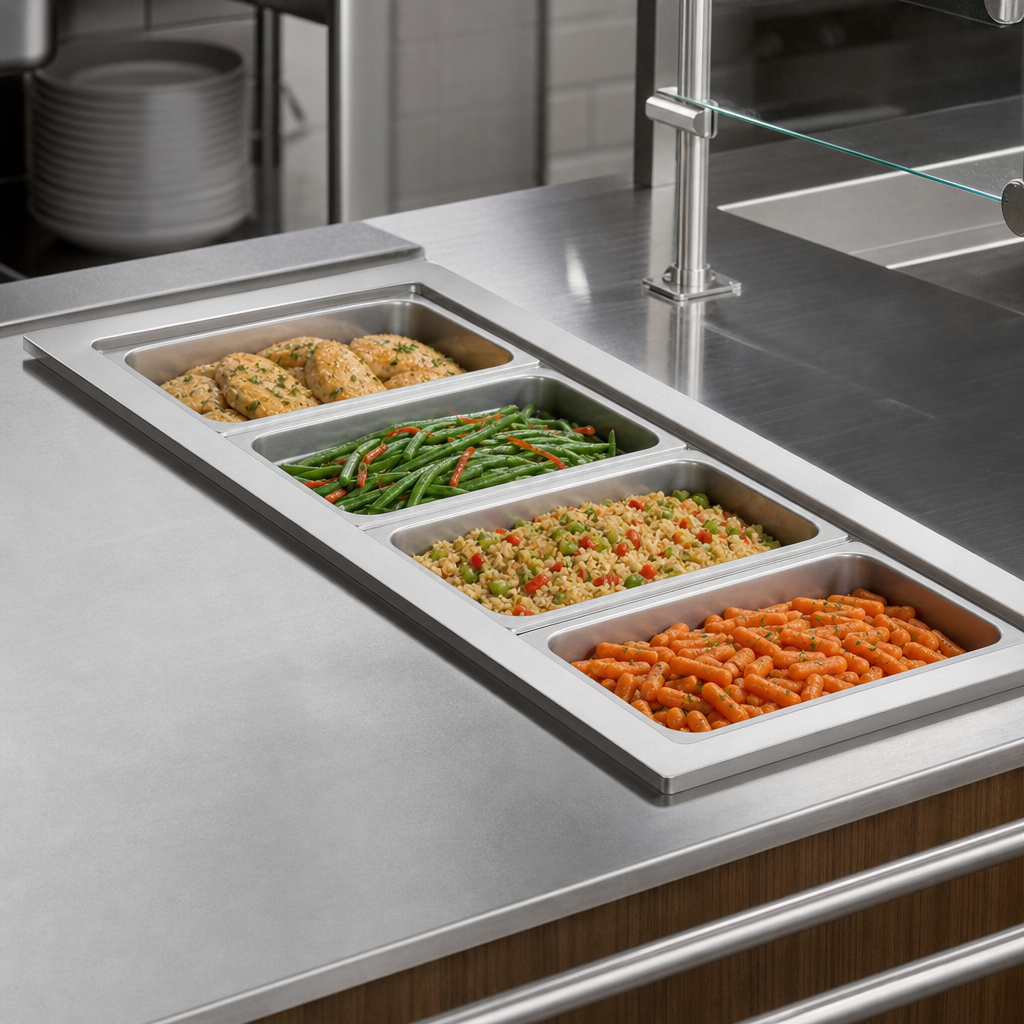

Designed for narrow counters and fast, customer-friendly service, this Made-in-USA hot well turns full-size pans sideways to save precious depth while keeping food at safe, appetizing temperatures.

Key Features
  • Narrow presentation: pans sit sideways for easy reach and a slim 18″ footprint.
  • Four independent thermostatic controls with indicator lights for precise temperature holding.
  • 1000 W per well (4000 W total) delivers rapid heat-up and consistent recovery.
  • Remote stainless-steel control panel on a 4 ft (121.9 cm) tether for flexible mounting.
  • ½″ (1.3 cm) standard drains with individual ball valves; drain plug included.
  • 18/8 stainless-steel top flange and drawn wells resist corrosion and clean easily.
  • Full polyurethane foam insulation on all sides, including between wells.
  • Full-perimeter drip edge keeps condensation off the counter.
  • Ships ready to plug in—6 ft (1.8 m) cord with NEMA 6-30P; no hard-wiring required.
  • Zero-clearance installation; gasket & mounting clips for counters up to 3″ (7.6 cm) thick.
  • Accepts full-size or fractional pans up to 6″ (15.2 cm) deep; adapter bars recommended for fractional pans.
  • UL, CUL & NSF listed; proudly Made in the USA.
Specifications
Number of Wells 4
Control Type Thermostatic (one per well)
Heat Output 1000 W per well • 4000 W total
Electrical 208-240 V / 60 Hz / 1-phase
Amperage 14.4 – 16.7 A
Plug NEMA 6-30P (factory-installed cord)
Overall Dimensions (L × W) 88-1/4″ × 18″ (224.1 cm × 45.7 cm)
Countertop Cutout 87-1/2″ × 17-1/4″ (222.3 cm × 43.8 cm) — 7/8″ (2.2 cm) corner radius
Well Interior (each) 20″ × 12″ × 8″ D (50.8 cm × 30.5 cm × 20.3 cm)
Construction 18/8 stainless top & wells; galvanized steel housing
Insulation Thick polyurethane foam, fully encapsulated
Drain ½″ individual drains with ball valves; plug included
Agency Listings UL, CUL, NSF
Origin USA
Perfect For
  • Buffet lines and serving counters with limited depth
  • Grab-and-go, deli, and convenience operations
  • Corporate, school, and healthcare cafeterias
  • Catering lines, stadiums, and banquet halls
Important: Unit meets NSF 4 performance standards only when operated with water in each well for moist-heat holding.

Modular drop-ins cannot be canceled or returned once ordered. See vollrathfoodservice.com for full warranty terms.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

15.0in

Width

88.56in

Depth

18.0in

Shipping Weight

362.0lbs

Style

individual pans

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (4) pan, thermostatic controls, standard drains, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, NEMA 6-30P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 88-1/4" x 18", cutout dimensions 87-1/2" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
