Vollrath Short-Side 3-Pan Drop-In Hot Well with Infinite Controls and Standard Drain, 208-240V

Marine-grade stainless steel wells with rotated pan presentation and plug-in power

A space-saving drop-in hot well that turns full-size pans sideways for easier reach while delivering precise moist-heat holding with plug-in power.

  • Rotated short-side wells turn full-size pans sideways for a narrower presentation and easier access.
  • Infinite controls let you fine-tune heat for consistent holding across all three wells.
  • Marine-grade stainless steel construction and thick insulation help resist corrosion and retain heat.
  • Plug-in 208-240V power with a NEMA 6-20P cord simplifies installation.
  • Standard drain setup with included drain plug makes cleanup easier.
  • Designed for moist-heat operation; water is required for even heating and adapter bars are recommended for fractional pans.

Overall Dimensions:

66.88"W x 18.0"D x 15.0"H

Product Weight:

165.0 lb

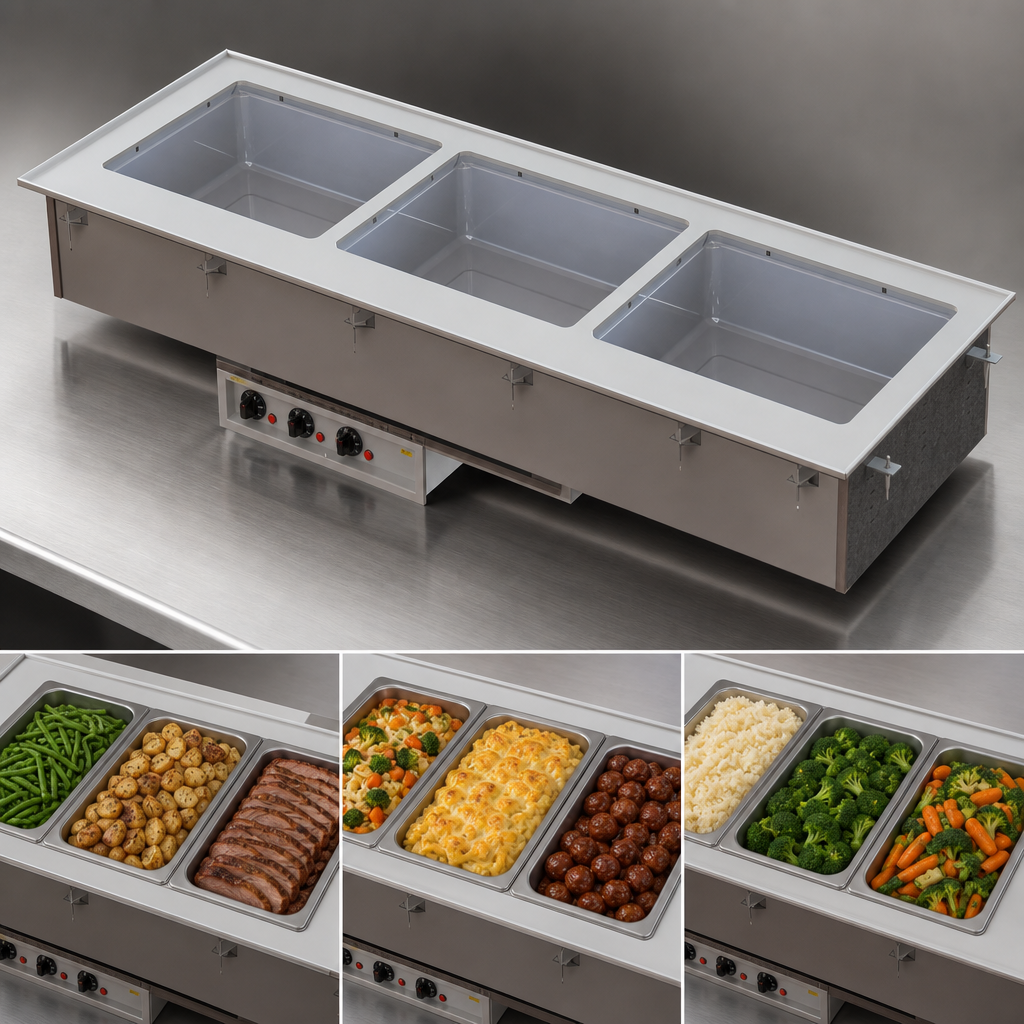

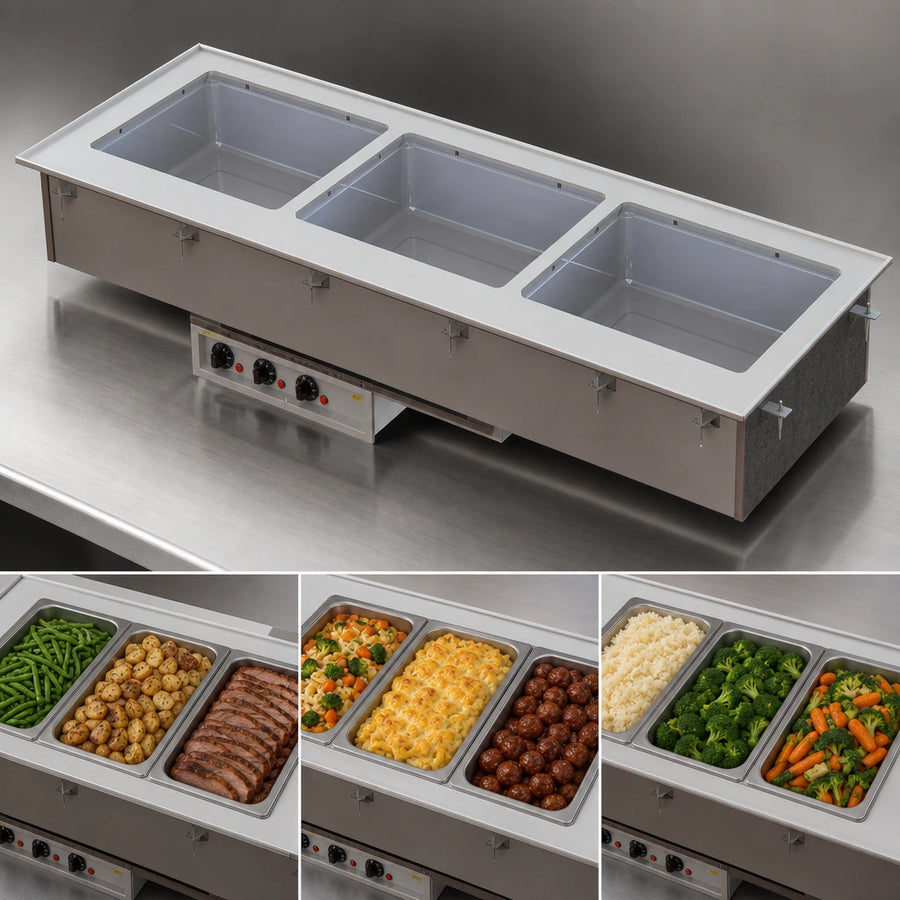

Rotated Short-Side Wells

Turns full-size pans sideways to create a narrower serving line and improve reach.

316 Marine-Grade Stainless Steel Wells

Drawn wells are built for enhanced corrosion resistance in demanding food bar applications.

Infinite Individual Controls

Each well has its own infinite control for precise heat adjustment.

Remote-Mount Control Panel

A tethered control panel provides flexible mounting locations during installation.

Standard Drain With Included Plug

Standard drain design simplifies water removal, and the drain plug is included.

Insulated Drop-In Construction

Thick polyurethane foam insulation helps retain heat and reduce condensation around the cutout.

Plug-In Power Connection

Includes a 6-foot cord with NEMA 6-20P plug; hard-wiring is not required.

Installation Hardware Included

Includes a gasket and mounting clips for top-mount installation on counters up to 3 inches thick.

Type Hot Well
Style Short-Side Modular
Installation Type Drop-In
Pan Capacity 3 Full-Size Pans
Controls Infinite
Drain Type Standard Drain
Watts 3 kW
Voltage 208-240 Volts
Amps 10.8-12.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Material 316 Stainless Steel
Well Size 20 Inches x 12 Inches
Well Depth 8 Inches
Cutout Width 66-1/16 Inches
Cutout Depth 17-1/4 Inches
Corner Radius 7/8 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds 3 full-size pans.
No. It includes a cord and plug, so hard-wiring is not required.
Yes. Water is required for even heating and moist-heat holding.
Yes. It accepts full-size and fractional pans up to 6 inches deep, and adapter bars are recommended for fractional pans.
It comes with a 2-year warranty against defects in materials and workmanship.
