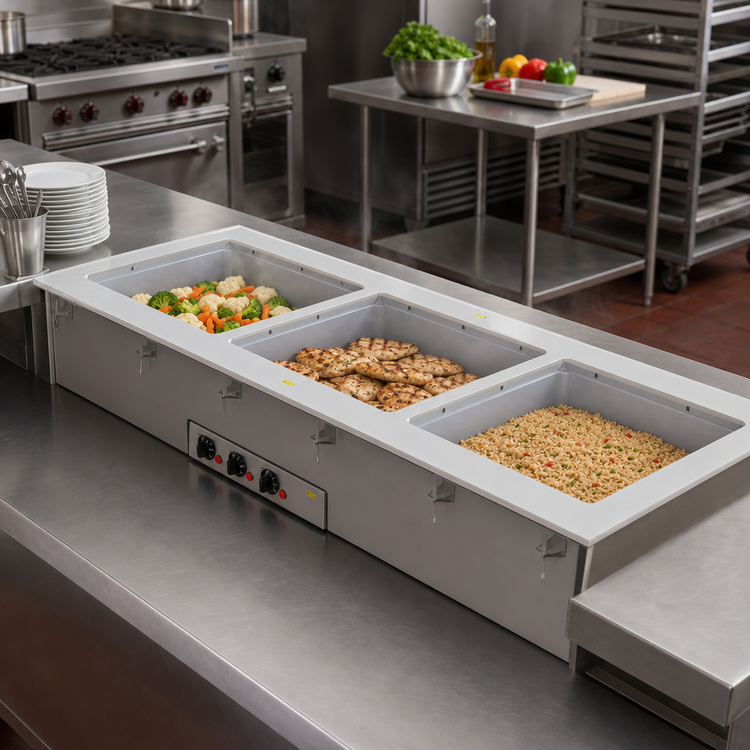

Vollrath Short-Side 3-Pan Drop-In Hot Well with Marine-Grade Wells, Infinite Controls, Auto-Fill and Manifold Drain, 208-240V

Rotated full-size wells create a narrower serving line and easier reach.

A compact three-pan hot well that turns full-size pans sideways for a narrower presentation and easy customer access.

  • Rotated short-side wells create a narrower serving line and easier reach to food pans.
  • Three-well, 208-240V design with infinite controls for precise moist-heat holding.
  • Auto-fill and manifold drain simplify water management and cleanup.
  • Marine-grade 316 stainless steel wells and stainless steel housing help resist corrosion.
  • Thick insulation and a full-perimeter drip edge support efficient operation and cleaner counters.
  • Includes a cord-and-plug connection for top-mount installation without hard-wiring.

Overall Dimensions:

66.88"W x 18.0"D x 21.5"H

Product Weight:

160.0 lb

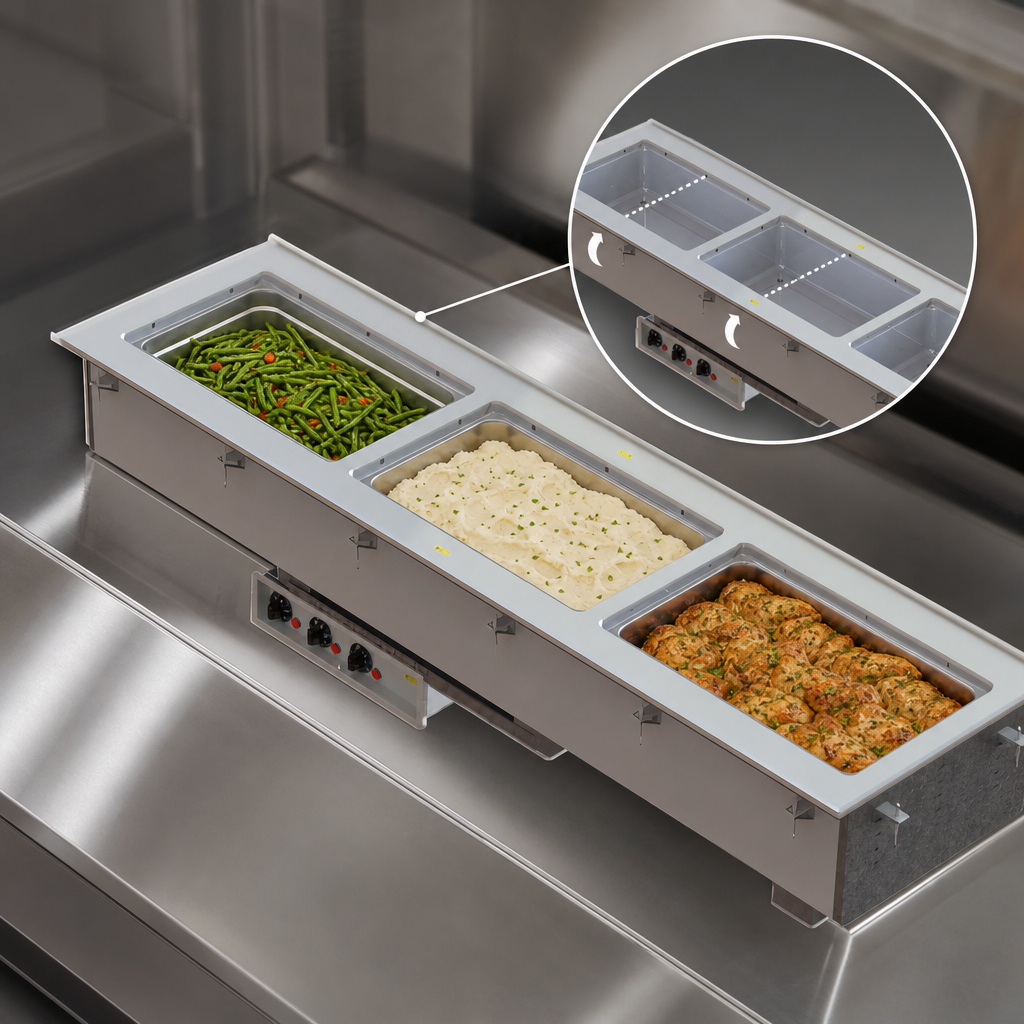

Short-Side Rotated Wells

Full-size pans sit sideways to create a narrower presentation and easier customer access.

Infinite Controls

Individual infinite controls for each well provide precise temperature adjustment.

Auto-Fill System

Built-in auto-fill helps maintain water level for wet operation.

Manifold Drain

Manifold drain design simplifies draining and service.

Marine-Grade 316 Stainless Steel Wells

SAE Type-316 drawn wells provide enhanced corrosion resistance.

Insulated Construction

Thick polyurethane foam insulation helps retain heat on non-exposed sides and between wells.

Full-Perimeter Drip Edge

Helps contain spills and keep the countertop cleaner.

Cord and Plug Included

Includes a 6-foot cord with NEMA 6-20P plug; no hard-wiring required.

Mounting Hardware Included

Standard mounting clips and gasket support easy top-mount installation.

Pan Compatibility

Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.

Type Hot Well
Style Short-Side Modular
Installation Type Drop-In
Pan Capacity 3 Full-Size Pans
Controls Infinite
Operation Wet
Material Stainless Steel
Interior Finish 316 Stainless Steel
Voltage 208-240 Volts
Amps 10.8-12.5 Amps
Watts 3 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Cord Length 6 Feet
Drain Connection Size 1 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 67 Inches
Shipping Depth 18 Inches
Shipping Height 22 Inches
Shipping Weight 160 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Two-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. It includes a 6-foot cord with a NEMA 6-20P plug and does not require hard-wiring.
It is designed for three full-size pans and accepts full-size and fractional pans up to 6 inches deep. Adapter bars are recommended for fractional pans.
Yes. Water is required for even heating and proper wet operation.
This model uses a manifold drain with auto-fill. The manifold drain uses 1-inch copper tubing with a master shutoff.
HD wells have a two-year warranty against defects in materials and workmanship. Refer to Vollrath for full warranty policy.
The rotated wells turn full-size pans sideways, creating a narrower presentation and easier reach.
