Vollrath 3664930 Steam Tables & Food Wells

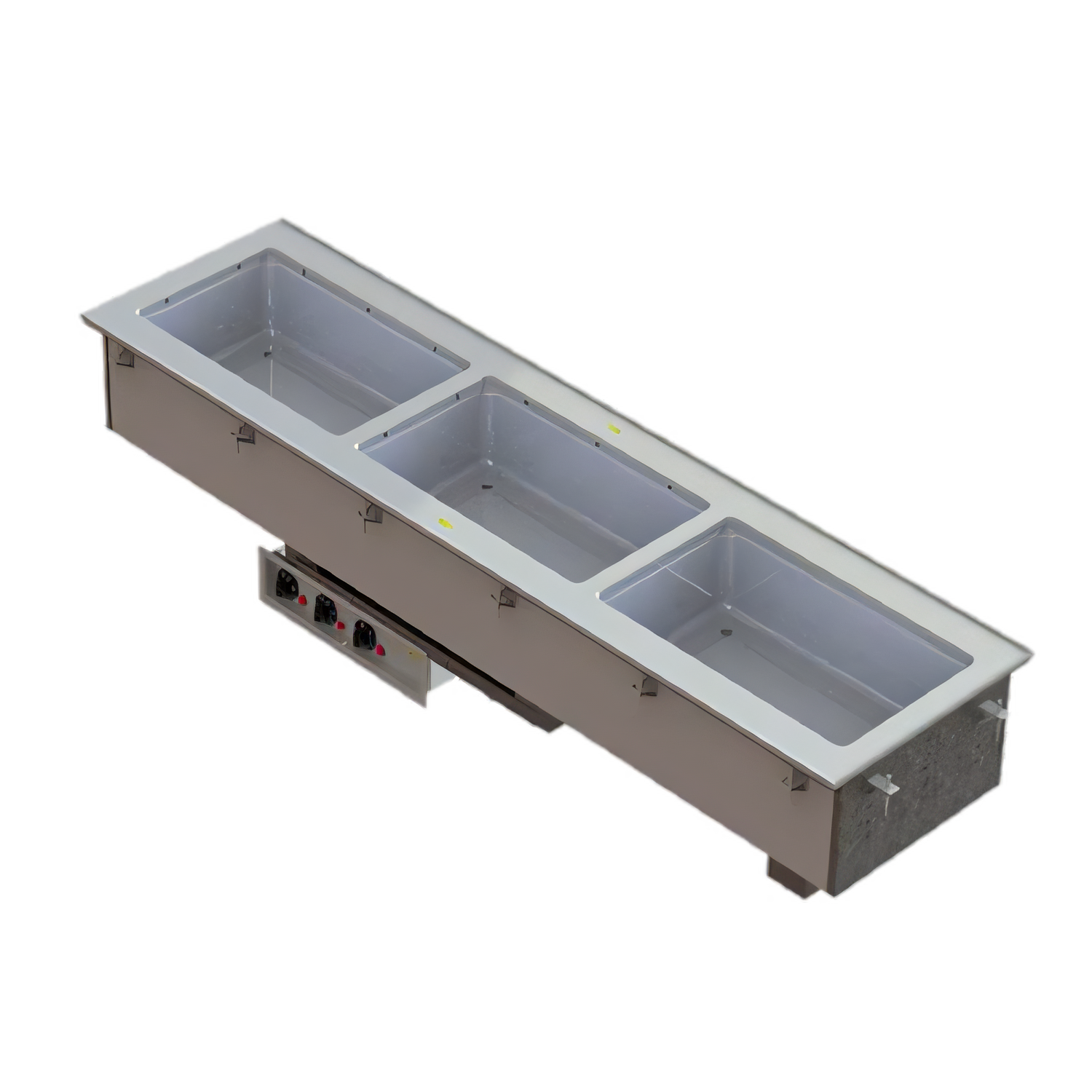

Vollrath Short Side Hot Drop-In Well – 3-Pan, Infinite Control, Auto-Fill & Manifold Drain

Designed for operators who demand a slimmer footprint without sacrificing capacity, this 3-well Short Side Hot Drop-In turns full-size pans sideways for a narrow, customer-friendly presentation and an easy reach for serving staff. The auto-fill manifold drain system keeps water at the ideal level for consistent moist heat, while infinite controls give you precise holding power for every menu item.

Key benefits

• Narrow 18 in. (45.7 cm) front-to-back depth saves valuable counter space.

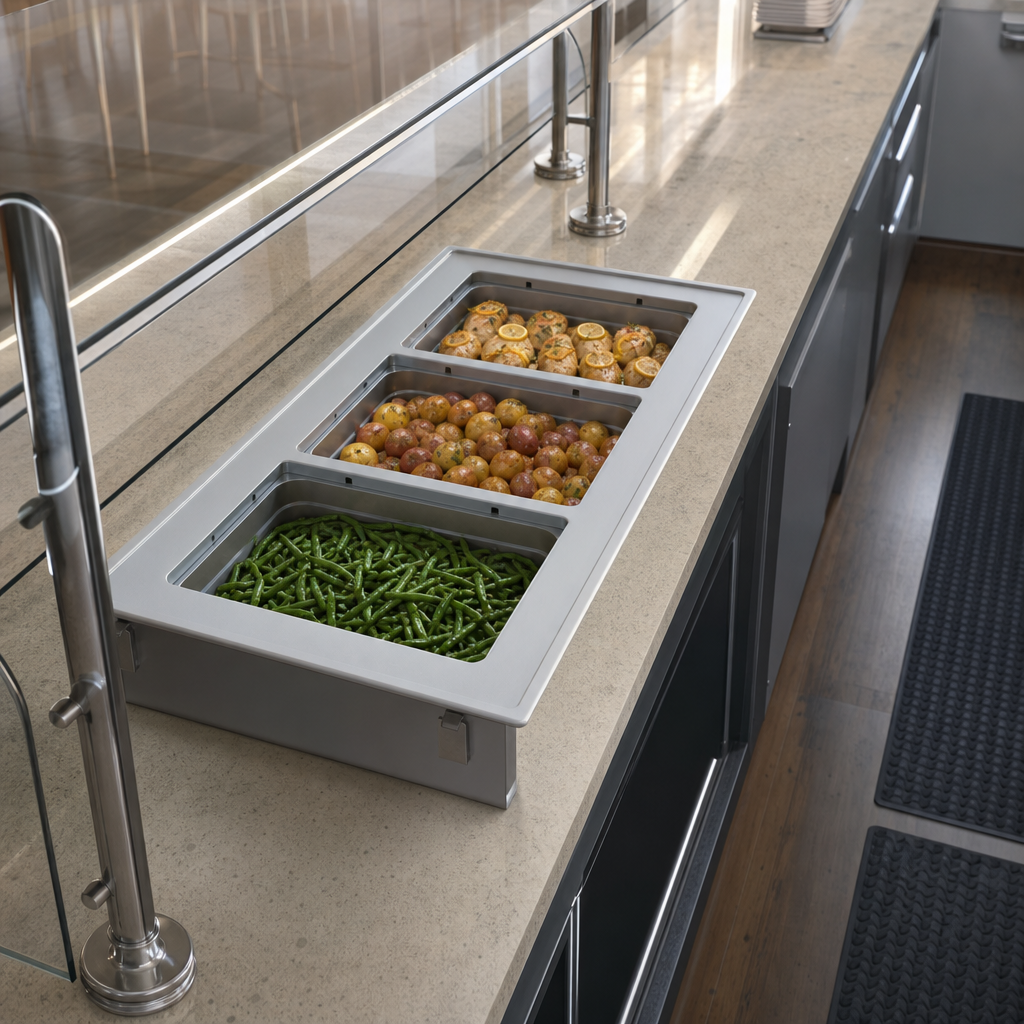

• Rotated full-size wells (20 × 12 in.) keep food within comfortable reach.
• Auto-fill maintains the proper water level automatically—no babysitting required.
• 1 in. copper manifold drain with master shut-off and included drain plug = fast, mess-free cleanup.
• Individual infinite controls and power lights for each well on a 4 ft tethered stainless-steel panel.
• 18/8 (300 series) stainless-steel top flange & drawn wells resist corrosion; full-perimeter drip edge protects counters.
• Thick polyurethane foam insulation on all non-exposed sides—including between wells—for maximum energy efficiency.
• Ships with gasket, mounting clips (for counters up to 3 in. thick) and 6 ft cord; no hard-wiring required.
• Zero-clearance installation; UL, CUL & NSF listed.

At-a-glance specs

Ideal for

• Serving lines and buffets with limited counter depth
• Cafeterias or concessions that pull pans forward toward guests
• Operator-side or customer-side service where reach distance matters

Included in the box

• Short Side 3-well hot drop-in module
• Remote stainless-steel control panel (4 ft tether)
• Gasket & mounting clips
• 6 ft power cord with NEMA 6-20P plug
• Drain plug
• Owner’s manual

Need to hold fractional pans? Add adapter bars or the optional sheet-pan adapter (Vollrath #19186).
