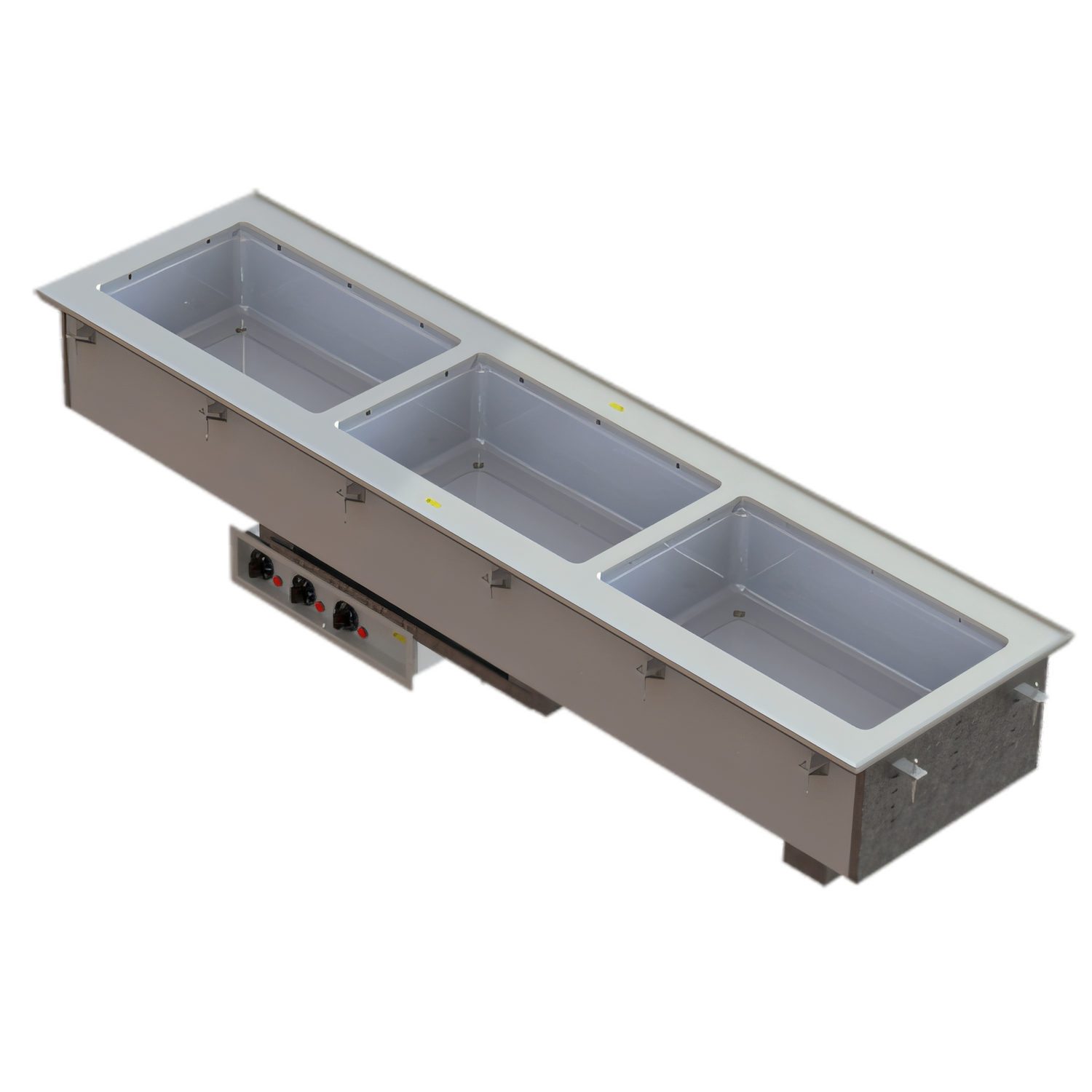

Vollrath Short-Side 3-Pan Drop-In Hot Well with Marine-Grade Wells, Infinite Controls and Manifold Drain
Vollrath Short-Side 3-Pan Drop-In Hot Well with Marine-Grade Wells, Infinite Controls and Manifold Drain
208-240V, 3 kW wet-heat holding; no hard-wiring required
This short-side, three-pan hot well rotates full-size pans sideways for a narrower serving line while delivering corrosion-resistant wet-heat holding with marine-grade stainless steel construction.
- Short-side layout rotates full-size pans sideways to save counter depth and improve access.
- Three-pan capacity with infinite controls helps maintain consistent holding temperatures.
- Marine-grade 316 stainless steel wells and stainless steel housing support long-term corrosion resistance.
- Thick insulation, a full-perimeter drip edge, and an included drain plug help keep operation cleaner and more efficient.
- 6-foot cord with NEMA 6-20P plug simplifies installation and eliminates the need for hard-wiring.
- Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.
Overall Dimensions:
66.88"W x 18.0"D x 21.5"HProduct Weight:

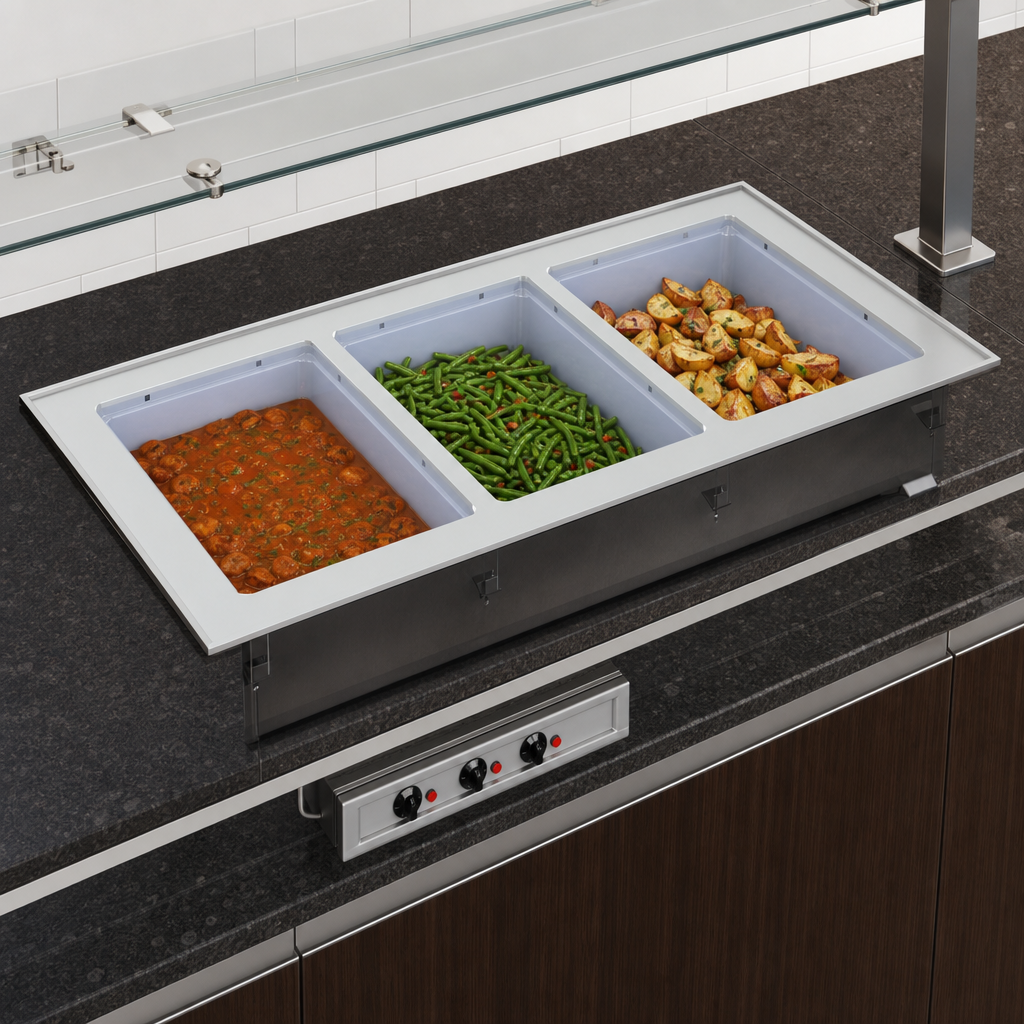

170.0 lbShort-Side Pan Orientation
Rotated wells turn full-size pans sideways for a narrower presentation and easier reach on the serving line.
Marine-Grade Wells
Drawn SAE Type-316 stainless steel wells provide enhanced corrosion resistance.
Infinite Individual Controls
A stainless steel remote control panel provides individual infinite controls and power indicator lights for each well.
Insulated Construction
Thick polyurethane foam insulation and insulation between wells help retain heat, while the full-perimeter drip edge helps keep counters cleaner.
Manifold Drain System
The manifold drain uses a master shutoff for easier draining, and a drain plug is included.
No Hard-Wiring Required
Supplied with a 6-foot cord and NEMA 6-20P plug for easier plug-in installation.
Top-Mount Installation Hardware
Includes a gasket under the drip edge and mounting clips for counters up to 3 inches thick.
Pan Compatibility
Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended when using fractional pans.
Certifications & Compliance
Warranty & Protection
2-year warranty against defects in materials and workmanship.
