Vollrath  |  SKU: 3664920

Vollrath 3664920 Steam Tables & Food Wells

$2,755.05
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

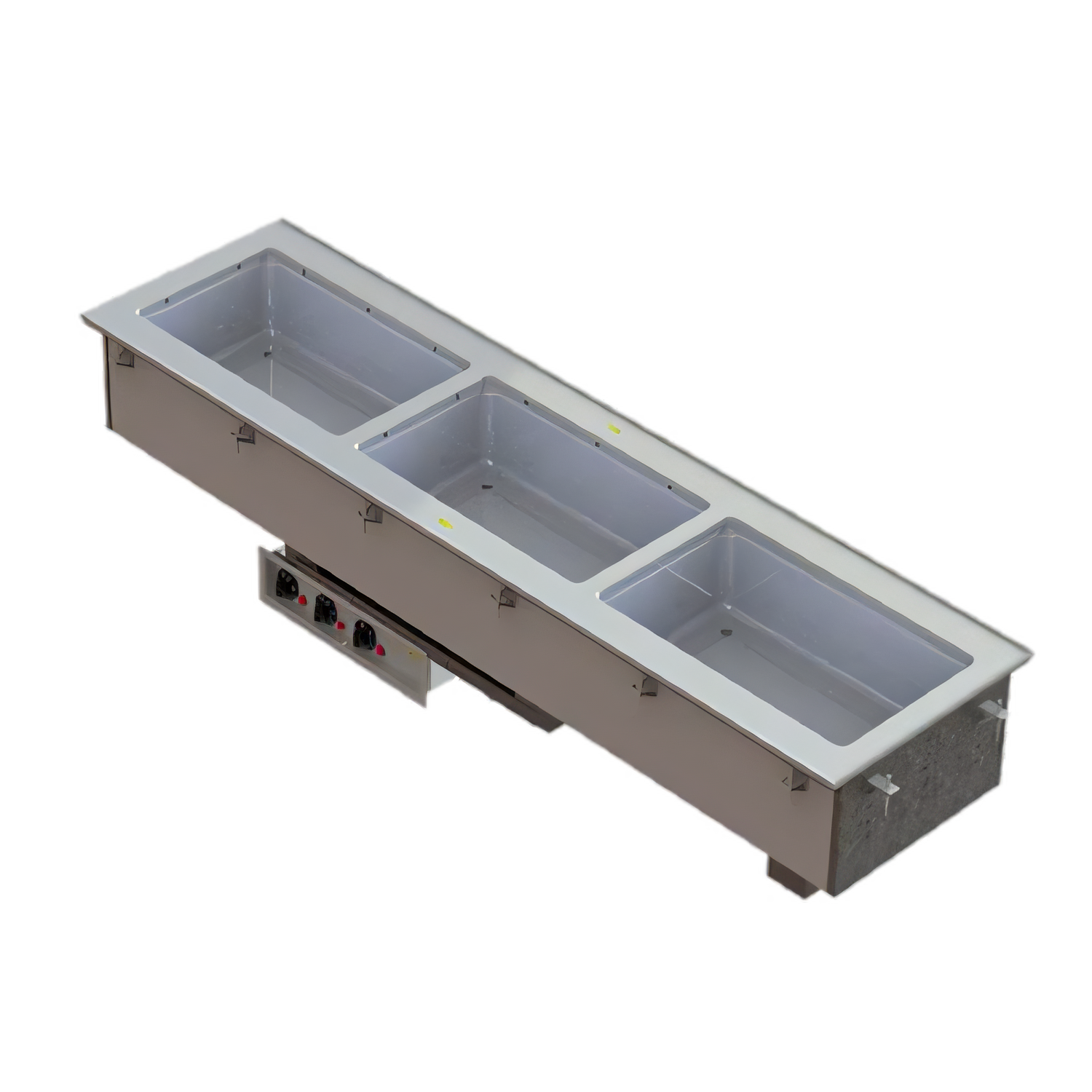

Short Side Hot Drop-In Well – 3 Pan

Vollrath model 36649 | Infinite controls | Manifold drain

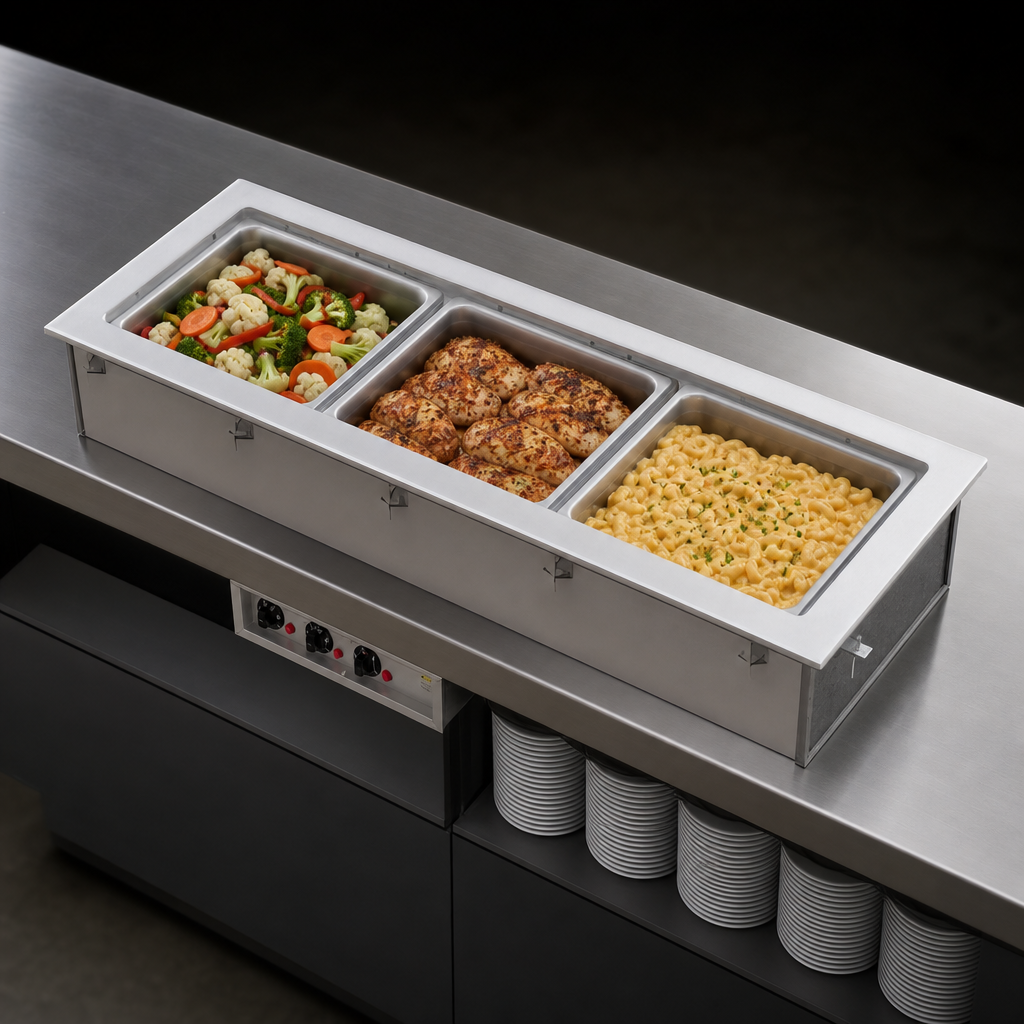

Give your serving line a slim, guest-friendly profile without sacrificing capacity. Vollrath’s 3-pan Short Side Hot Drop-In turns full-size (20 × 12 in) steam-table pans sideways, so staff and customers enjoy an 18 in counter footprint and an easy reach to every dish. Designed for plug-and-play installation, it arrives fully assembled, gasketed and ready to drop-in.

Why you’ll love it

  • Space-saving 18 in width – perfect for shallow counters or pulling food forward.
  • 300-series 18/8 stainless steel top flange & drawn wells resist corrosion and wipe clean fast.
  • Thick polyurethane foam insulation on every non-exposed side, including between wells, boosts efficiency.
  • 1 in copper manifold drain with master shut-off plus included drain plug for quick daily maintenance.
  • Full-perimeter drip edge and supplied gasket keep condensation off your countertop.
  • Remote stainless control panel (4 ft tether) with individual infinite controls & power lights for each well.
  • Accepts full-size or fractional pans up to 6 in deep (8 in well depth provides ample water capacity).
  • Zero-clearance, top-mount installation – standard mounting clips for counters up to 3 in thick included.
  • Plug-in convenience – no hard-wiring; NEMA 6-20P cord set factory-installed.
  • Made in the USA and listed to UL, cUL & NSF 4 standards.

Technical specifications

Capacity (3) full-size pans, rotated 20 × 12 in each
Heating power 1 000 W per well  |  3 000 W total
Controls Independent infinite manual controls with indicator lights
Electrical 208–240 V / 60 Hz / 1-phase  |  10.8 – 12.5 A  |  NEMA 6-20P
Overall dimensions 66 7⁄8 in (L) × 18 in (W)
Counter cut-out 66 1⁄16 in (L) × 17 1⁄4 in (W)  |  7⁄8 in corner radius
Well dimensions 20 in (L) × 12 in (W) × 8 in (D)
Drain 1 in copper manifold with master shut-off & drain plug
Construction 18/8 stainless steel wells & flange, poly-foam insulated
Certifications UL, cUL, NSF 4
Origin & warranty Made in USA |  Vollrath standard warranty (see VollrathFoodservice.com)

Installation & usage notes

  • Requires moist-heat operation – maintain water level for even heating and NSF compliance.
  • Indoor use only; room temperature & HVAC conditions can affect holding temperature.
  • Opening cut-out must maintain the specified 7⁄8 in corner radius.
Important: Drop-in units are built to order and cannot be canceled or returned once in production. Modifying the factory-installed cord or plug will void the warranty and may result in injury.

Need a sheet-pan adapter or marine-grade well? Ask our team for accessory item 19186 or “HD” options.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

21.5in

Width

66.88in

Depth

18.0in

Shipping Weight

170.0lbs

Controls

infinite controls

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Drain

with drain

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (3) pan, infinite controls, manifold drain, 3000 watts, 208-240v/60/1-ph, 10.8-12.5A, NEMA 6-20P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 66-7/8" x 18", cutout dimensions 66-1/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
