Vollrath  |  SKU: 36649

Vollrath 36649 Steam Tables & Food Wells

$2,439.65
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Vollrath Short Side Hot Drop-In Well – 3 Pan, Infinite Control

Item 36649 | 3000 W | 208-240 V | NEMA 6-20P

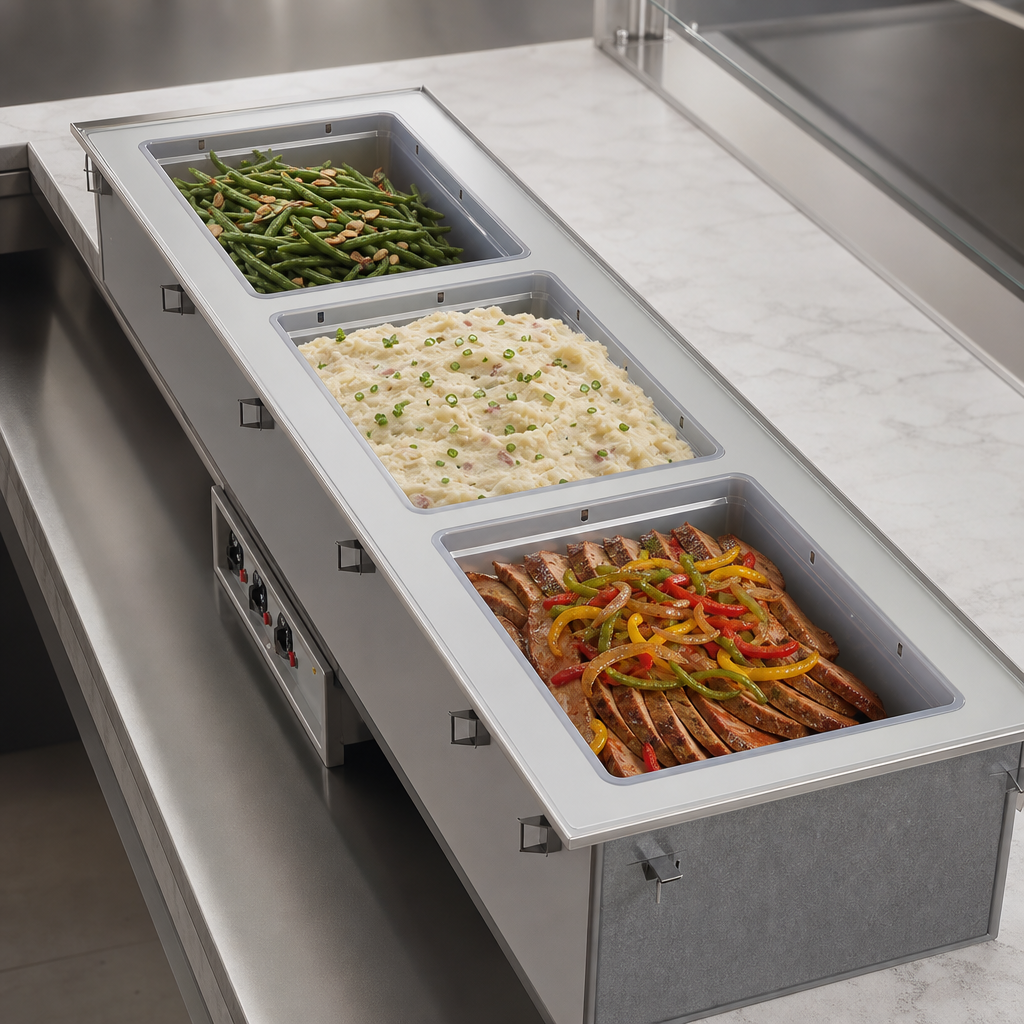

Get full-size holding power in a slim 18-inch footprint. This U.S.–made Short Side Hot Drop-In turns three full-size pans sideways, creating a narrow presentation that’s easier to reach and perfect for crowded buffet lines, cafés, kiosks, and serving counters.

Why you’ll love it
  • Narrow 18" depth – maximises counter space while keeping food within easy reach.
  • Independent infinite controls – dial in precise holding temps for each well; power light on every control.
  • 18/8 stainless-steel flange & drawn wells – durable, corrosion-resistant and NSF-listed.
  • Full-perimeter drip edge with supplied gasket keeps condensation off surrounding surfaces.
  • Foamed-in-place polyurethane insulation on all non-exposed sides – including between wells – boosts efficiency.
  • Standard ½" drains with individual ball valves plus drain plug for quick, mess-free cleanup.
  • Factory-installed 6 ft cord & NEMA 6-20P plug – no hard-wiring required.
  • Zero-clearance installation and a 4 ft tethered stainless control panel for flexible mounting.
  • Accepts full-size or fractional pans up to 6" deep (use adapter bars for fractional pans).
Technical specifications
Capacity 3 full-size (12" × 20") pans – 8" deep wells
Control type Infinite manual – 1 per well
Total power 3000 W (1000 W per well)
Electrical 208-240 V / 60 Hz / 1-ph, 10.8-12.5 A
Plug NEMA 6-20P, 6 ft (1.8 m) cord
Overall size 66 7⁄8" L × 18" W
Counter cut-out 66 1⁄16" L × 17 1⁄4" W, 7⁄8" corner radius
Well interior 20" L × 12" W × 8" D (each)
Drain ½" individual drains with ball valves; plug included
Construction 300-series (18/8) stainless steel, foamed-in-place insulation
Certifications UL, cUL, NSF
Origin Made in the USA

For even heat distribution, operate wells with water (wet heat). Unit is intended for holding hot food, not for rethermalizing.

Important: Drop-in orders cannot be cancelled or returned. Confirm cut-out dimensions and electrical compatibility before purchasing.

Review full warranty details at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

15.0in

Width

66.88in

Depth

18.0in

Shipping Weight

165.0lbs

Controls

infinite controls

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Drain

with drain

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (3) pan, infinite controls, standard drains, 3000 watts, 208-240v/60/1-ph, 10.8-12.5A, NEMA 6-20P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 66-7/8" x 18", cutout dimensions 66-1/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
