Vollrath 36648HD Steam Tables & Food Wells
$2,936.75
Unit price
/
Unavailable
Description
Vollrath 36648HD Short-Side Modular Hot Well – 3 Pan
Marine-grade 316 stainless | Thermostatic controls | 208-240 V plug-inBring dependable steam-table performance to counters with limited front-to-back space. Vollrath’s 36648HD rotates three full-size pans sideways, giving staff a narrower 18-inch reach while maintaining the pan capacity you need for high-volume service.
Why you’ll love it

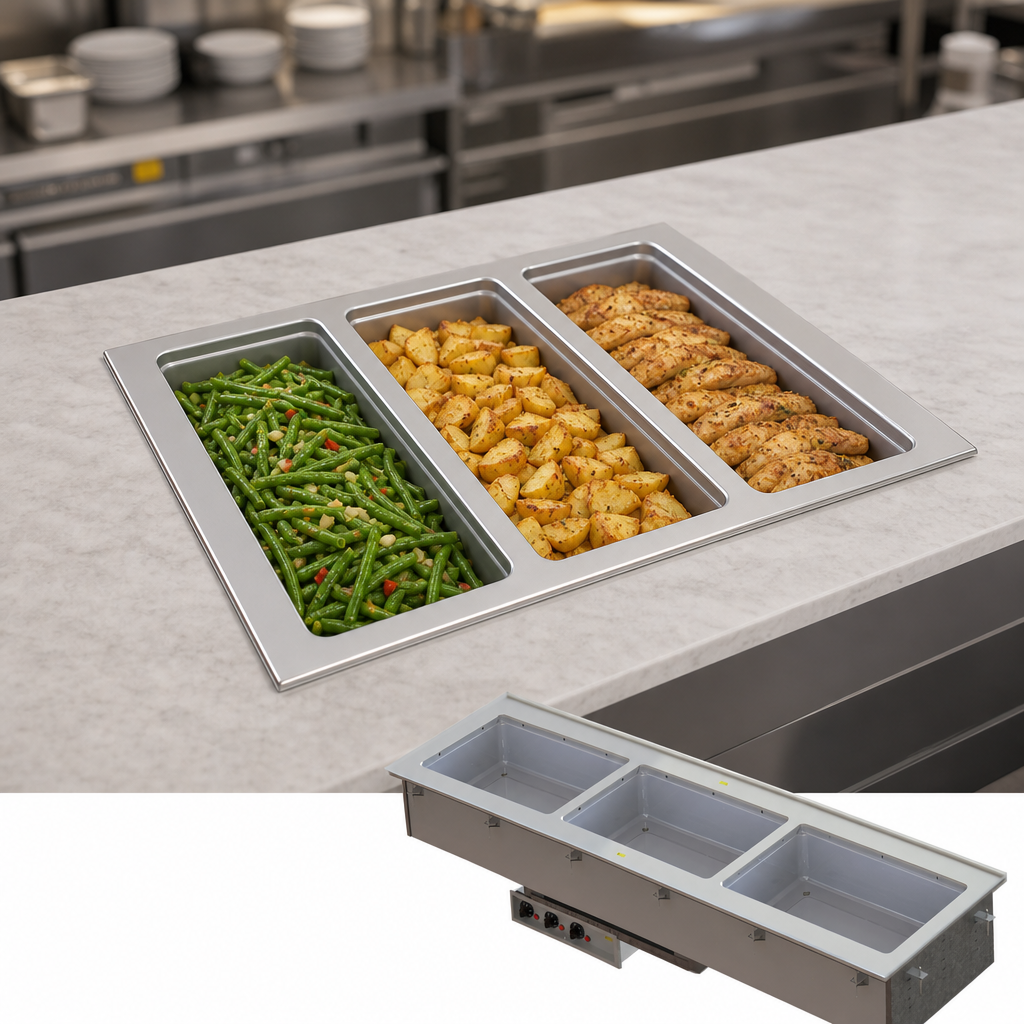

- Space-saving layout – pans are turned sideways for a 18 in. presentation depth.
- Marine-grade 18 ga./316 stainless wells and top resist harsh cleaning chemicals and salt air.
- Independent thermostatic controls with indicator lights for precise holding temps.
- Full-perimeter drip edge and included gasket help keep condensation off countertops.
- Standard ½" drains with individual ball valves; drain plug supplied for quick clean-out.
- 6 ft (1.8 m) cord with NEMA 6-20P plug—no hard-wiring required.
- Thick polyurethane insulation on all sides (including between wells) cuts energy loss.
- UL, cUL & NSF 4 listed; Made in the USA and covered by Vollrath’s 2-year warranty.
Pan capacity
- 3 × full-size pans (20 × 12 in. each) up to 6 in. deep
- Accepts fractional pans with adapter bars (recommended when using fractionals)
- 8 in. (20.3 cm) well depth gives generous water reservoir for even steam distribution
Technical specifications
| Model | 36648HD |
|---|---|
| Wells / controls | 3 wells | independent thermostatic |
| Total wattage | 3 kW (1000 W per well) |
| Electrical | 208–240 V / 60 Hz / 1-phase | 10.8–12.5 A | NEMA 6-20P |
| Overall dimensions | 66-7/8 in. L × 18 in. W |
| Cutout dimensions | 66-1/16 in. L × 17-1/4 in. W | 7/8 in. corner radius |
| Well interior (each) | 20 × 12 in. | 8 in. deep |
| Construction | 316 marine-grade stainless top & wells, stainless exterior housing, foam-insulated |
| Controls panel | Remote stainless panel on 4 ft (122 cm) tether for flexible mounting |
| Agency approvals | UL, cUL, NSF 4 |
| Origin / warranty | Made in USA | 2-year limited (see vollrathfoodservice.com for details) |
Installation & operation
- Zero-clearance drop-in design; mounting clips included for counters up to 3 in. thick.
- Indoor use only. Room temperature & HVAC can affect holding performance.
- For NSF compliance and even heating, maintain moist heat with water in each well.
Important: This unit is designed for holding hot foods, not for cooking or
re-thermalizing. Do not modify the factory-installed cord or plug—doing so will void the warranty.
Modular drop-ins are built to order and cannot be cancelled or returned.
Need a manifold drain, auto-fill, or different voltage? Search other Vollrath Short-Side Hot Wells or contact us for assistance.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, UL, Made in USA
Height
15.0in
Width
66.88in
Depth
18.0in
Shipping Weight
165.0lbs
Style
individual pans
Pan Capacity
(3) full size (12" x 20")
Insulated or Non-Insulated
insulated
Controls
thermostatic controls
Drain
with drain
Construction
stainless steel construction
Wet or Dry operation
wet
Specifications
Short Sided Hot Well, Drop-In, (3) pan, thermostatic controls, standard drains, 3000 watts, 208-240v/60/1-ph, 10.8-12.5A, NEMA 6-20P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 66-7/8" x 18", cutout dimensions 66-1/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
