Vollrath  |  SKU: 3664830HD

Vollrath 3664830HD Steam Tables & Food Wells

$4,318.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Vollrath Short-Side Modular Hot Well Drop-In – 3 Pan

Model 3664830HD · 208-240 V · Auto-Fill & Manifold Drain · Made in USA

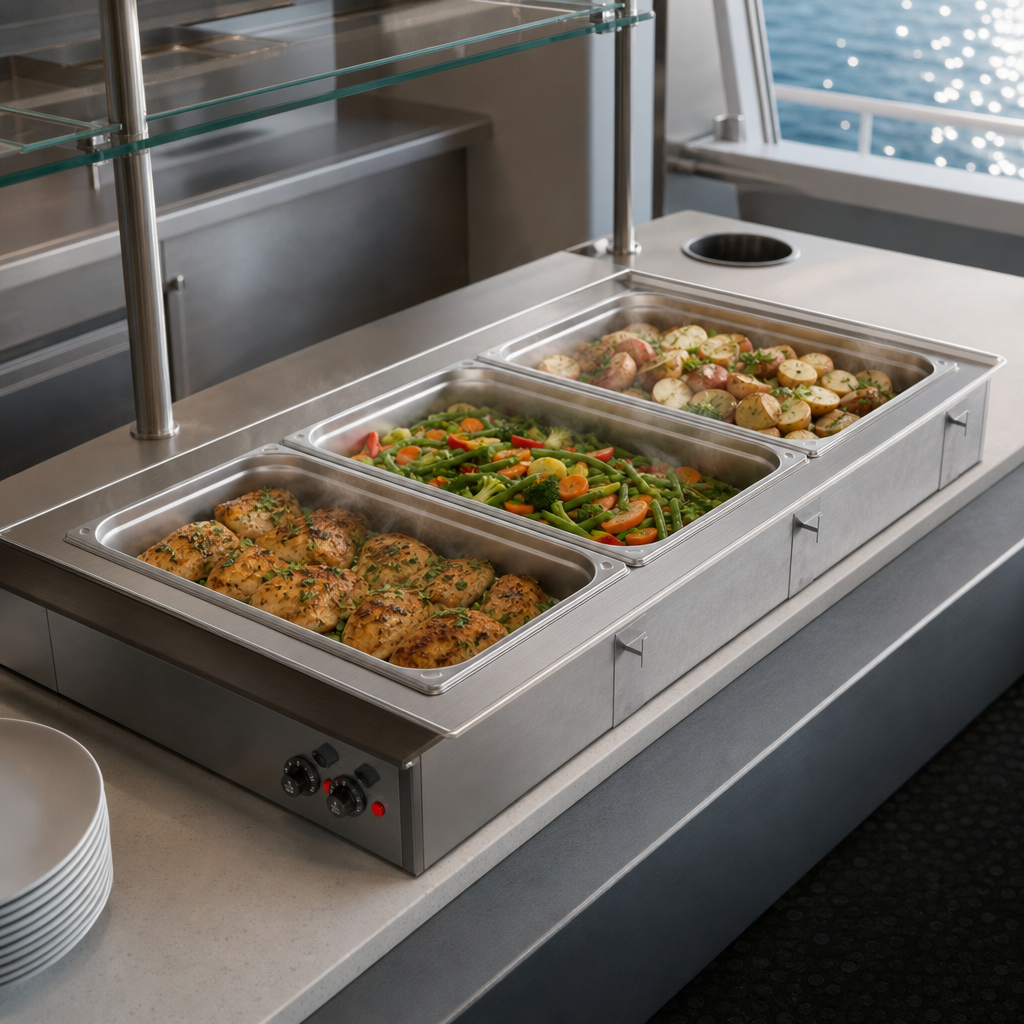

Give guests easy access to hot entrées while saving valuable counter depth. Vollrath’s three-well short-side hot drop-in rotates full-size pans sideways, delivering a slim 18 inch presentation without sacrificing capacity or performance.

Key Benefits

  • Narrow 18 in. footprint – pans sit sideways for a forward, easy-reach serve line.
  • 1000 W per well (3000 W total) with thermostatic controls for precise holding temperatures.
  • Integrated auto-fill maintains proper water level; 1 in. copper manifold drain with master shut-off speeds clean-up.
  • Marine-grade 18 ga / 316 stainless steel top fights corrosion from steam, chemicals & salt.
  • Stainless exterior housing plus thick polyurethane foam insulation on every side – including between wells – for energy efficiency.
  • Full-perimeter drip edge keeps condensation off the counter.
  • 4 ft tethered stainless control panel with individual power lights and temperature dials.
  • Ships ready to install – mounting clips, gasket and 6 ft cord with NEMA 6-20P plug included; no hard-wiring required.
  • Zero-clearance installation; UL, CUL & NSF 4 listed.

Specifications

Pan capacity (3) full-size 12 in. × 20 in. pans, up to 6 in. deep
Well size 20 in. × 12 in. opening, 8 in. deep drawn marine-grade well
Heat source / Controls 3000 W (1000 W × 3) – thermostatic, wet operation
Voltage & Amps 208-240 V / 60 Hz / 1-ph  •  10.8 – 12.5 A
Electrical connection 6 ft cord with NEMA 6-20P straight-blade plug
Water system Auto-fill (field-connect to potable water) & 1 in. copper manifold drain;
½ in. individual ball valves per well
Overall dimensions 66-7/8 in. L × 18 in. W
Counter cut-out 66-1/16 in. L × 17-1/4 in. W · 7/8 in. corner radius
Countertop thickness Up to 3 in. (mounting clips supplied)
Construction 18 ga / 316 stainless steel top · stainless steel housing · polyurethane insulation
Certifications UL, CUL, NSF 4
Country of origin USA
Warranty 2-year limited (see VollrathFoodservice.com for full policy)

Optional Accessories

  • Sheet pan adapter – item 19186 (converts one well to accept a 18 × 26 in. sheet pan).
  • Adapter bars for fractional steam pans.
Important: Operate with water in each well; this unit is a holding appliance and is not intended for rethermalizing cold food.

Need a refrigerated or infinite-control version? Search Vollrath’s full line of short-side drop-ins.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

21.5in

Width

66.88in

Depth

18.0in

Shipping Weight

160.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(3) full size (12" x 20")

Drain

with drain

Controls

thermostatic controls

Wet or Dry operation

wet

Construction

stainless steel construction

Specifications

Short Sided Hot Well, Drop-In, (3) pan, thermostatic controls, autofill & manifold drain, 3000 watts, 208-240v/60/1-ph, 10.8-12.5A, NEMA 6-20P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 66-7/8" x 18", cutout dimensions 66-1/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
