Vollrath  |  SKU: 3664830

Vollrath 3664830 Steam Tables & Food Wells

$3,830.85
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

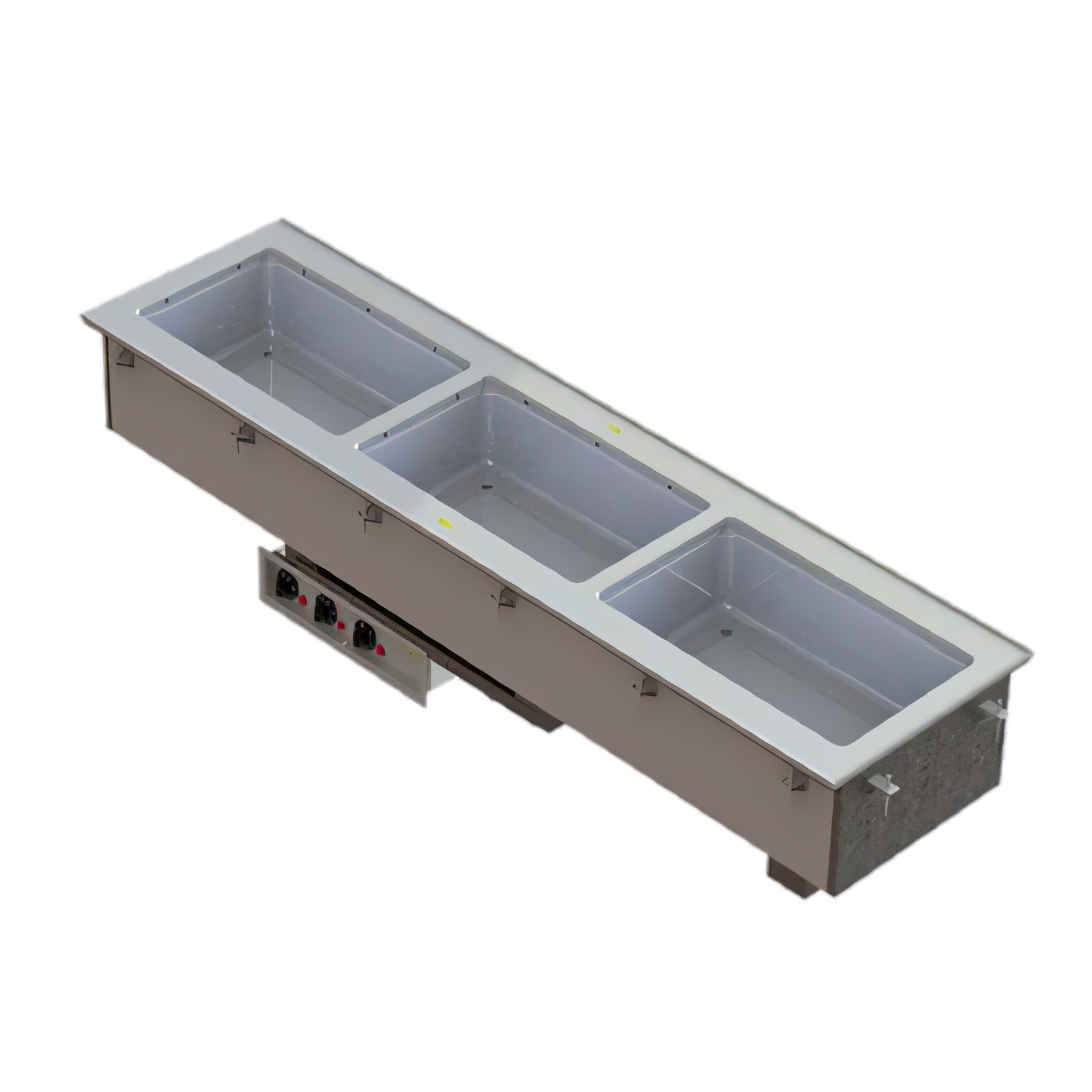

Short Side 3-Well Hot Drop-In w/ Auto-Fill & Manifold Drain

Vollrath Model 3664830  •  208-240 V, 3000 W, NEMA 6-20P

Give guests full-size variety without sacrificing counter space. Vollrath’s Short Side Hot Drop-In rotates three standard 12" × 20" pans sideways, trimming the front-to-back footprint to just 18 inches for narrower counters and easier reach. With foamed-in insulation, automatic water level control, and a one-piece stainless well, it keeps food hot, safe, and service-ready all day.

Why You’ll Love It

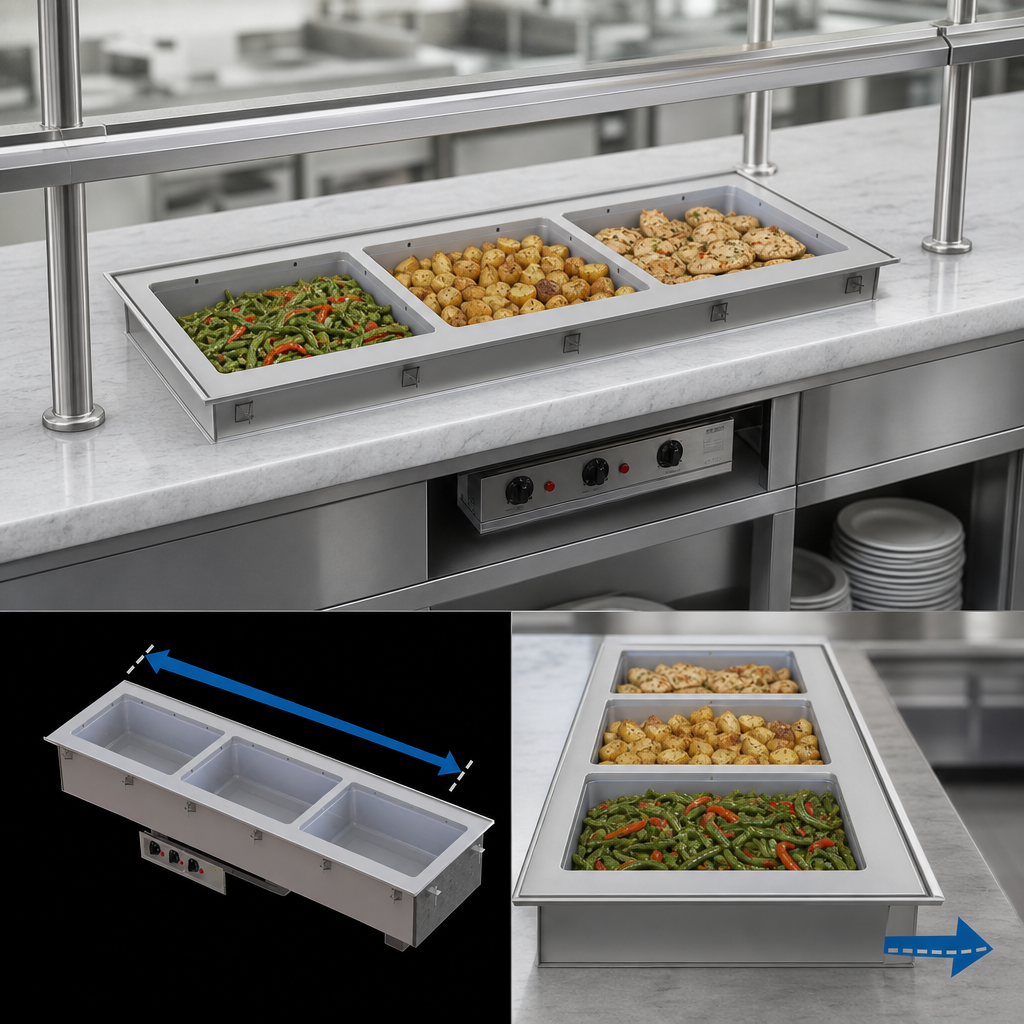

  • Space-saving 18" depth turns pans sideways for a slim presentation.
  • 1000 W per well (3000 W total) with individual thermostatic controls.
  • Factory-installed auto-fill maintains correct water level—less labor, longer element life.
  • 1" copper manifold drain with master shut-off plus included drain plug for quick clean-up.
  • 18/8 (300 series) stainless flange & drawn wells resist corrosion and wipe clean.
  • Thick polyurethane foam insulation on all sides — including between wells.
  • Full-perimeter drip edge with gasket keeps condensation off your countertop.
  • Remote stainless control panel (4 ft tether) with power LEDs and mounting hardware for counters up to 3" thick.
  • 6 ft cord with plug – no hard-wiring required.
  • Zero-clearance installation; UL, CUL, & NSF listed; proudly made in the USA.

Specifications

Number of Wells / Pans 3 full-size (12" × 20")
Well Dimensions (each) 20" L × 12" W × 8" D (51 × 30.5 × 20.3 cm)
Overall Dimensions 66 7⁄8" W × 18" D × ≈15" H*
Counter Cut-Out 66 1⁄16" W × 17 1⁄4" D, 7⁄8" corner radius
Power 3000 W, 208-240 V, 60 Hz, 1-phase, 10.8 – 12.5 A
Plug Type NEMA 6-20P (factory installed)
Construction 18/8 stainless steel well & flange; foamed-in insulation
Drain 1" copper manifold w/ master shut-off; drain plug included
Certifications UL, CUL, NSF (moist-heat operation)
Country of Origin USA

*Manifold drain adds 6 1⁄2" to overall height beneath counter.

What’s in the Box

  • Short Side 3-Well hot well module with auto-fill & manifold drain
  • Remote stainless control panel (4 ft tether)
  • Mounting clips & gasket
  • Drain plug
  • 6 ft cord with NEMA 6-20P plug
Important: For even heating and to meet NSF 4 performance, operate with water in the well. Auto-fill models require a dedicated potable water supply—see installation manual for connection details. Drop-in units are built to order and cannot be canceled or returned.

For complete warranty terms, visit  vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

21.5in

Width

66.88in

Depth

18.0in

Shipping Weight

160.0lbs

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Insulated or Non-Insulated

insulated

Controls

thermostatic controls

Drain

with drain

Construction

stainless steel construction

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (3) pan, thermostatic controls, autofill & manifold drain, 3000 watts, 208-240v/60/1-ph, 10.8-12.5A, NEMA 6-20P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 66-7/8" x 18", cutout dimensions 66-1/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
