Vollrath 3664820HD Steam Tables & Food Wells
$3,234.70
Unit price
/
Unavailable
Description

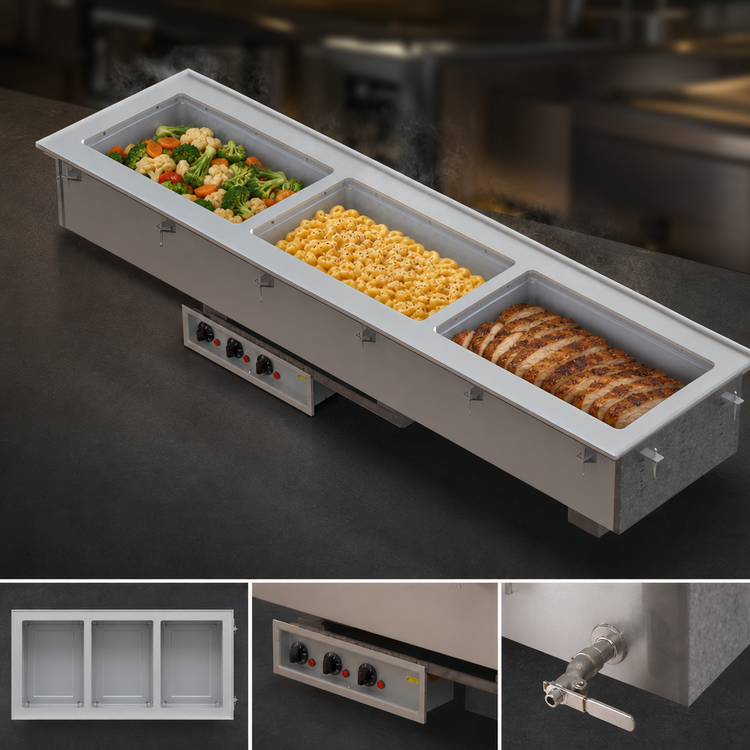

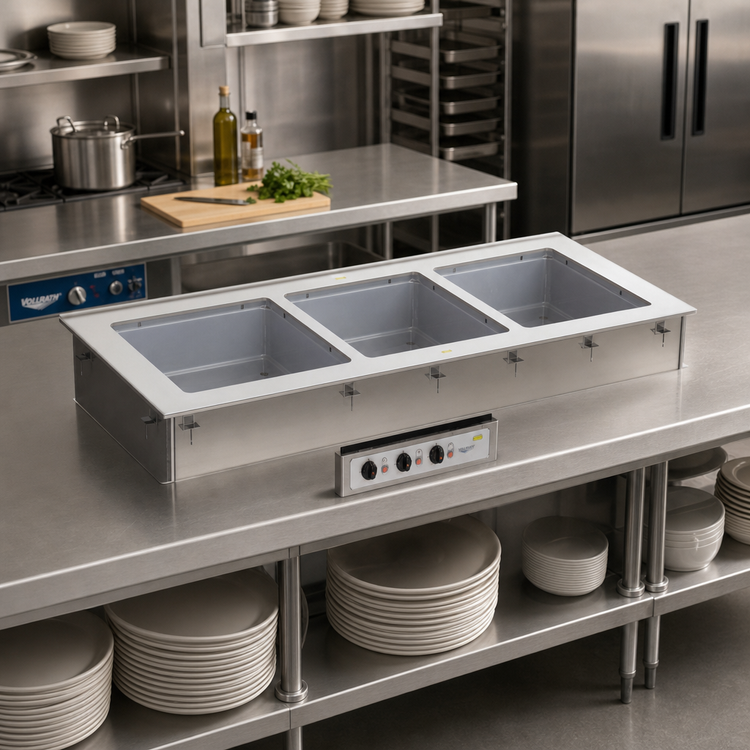

Short-Side Modular Drop-In Hot Well – 3 Wells, Marine-Grade
Vollrath | Model 3664820HD | Thermostatic Controls | Manifold DrainGive your serving line a slimmer profile without sacrificing capacity. Vollrath’s short-side drop-in turns full-size pans sideways, fitting three wells into only 18 inches of counter depth for faster pan access and a cleaner presentation.
Top Benefits

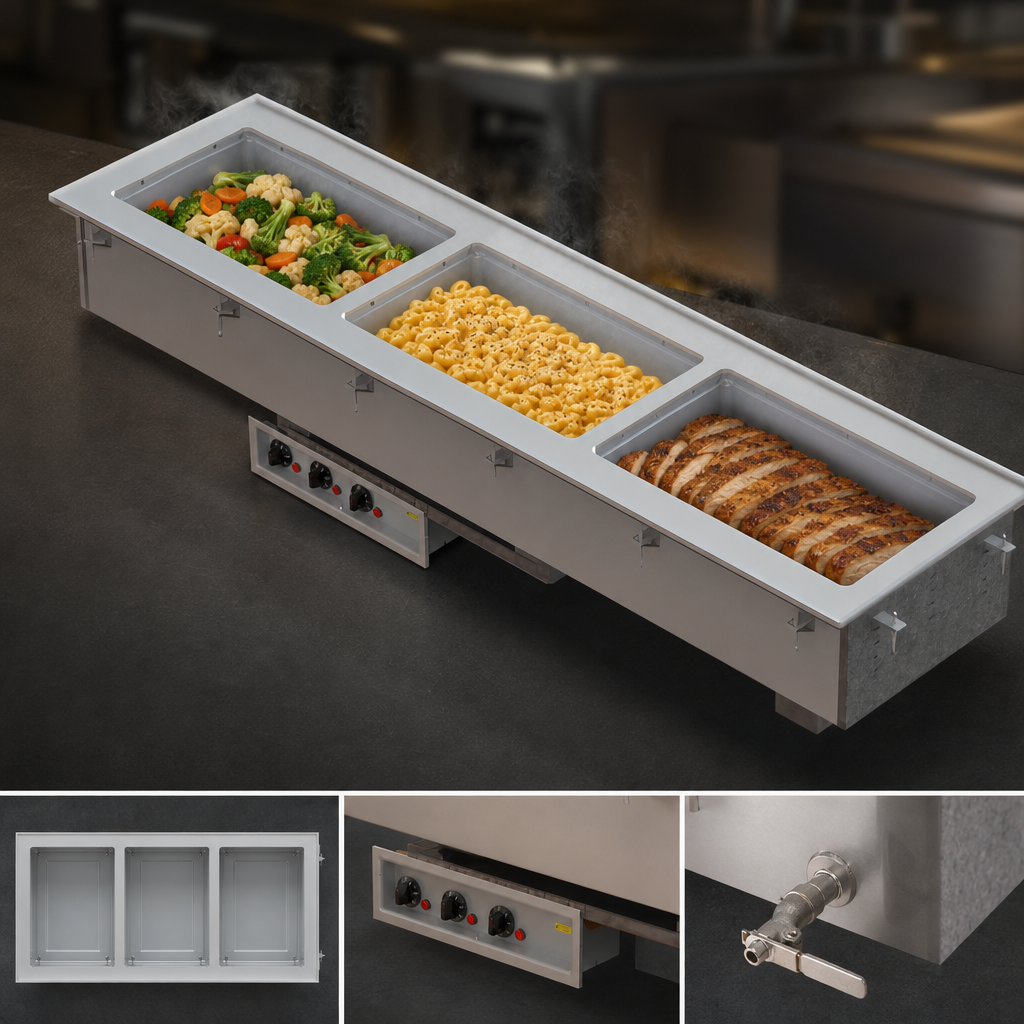

- Rotated 20 × 12 in wells create a narrow 18 in footprint that’s easier to reach across.
- Drawn wells and 18 ga top are SAE 316 marine-grade stainless steel – maximum corrosion resistance against salts, acids and steam.
- 1000 W per well (3000 W total) with individual thermostatic controls for precise hot-holding.
- 1 in copper manifold drain with master shut-off plus ½ in ball valves on each well; drain plug included.
- Full-perimeter drip edge and included gasket keep condensation off the counter.
- Thick polyurethane foam insulation on every surface – including between wells – for energy efficiency and cool exterior surfaces.
- Remote stainless-steel control panel (4 ft tether) mounts where you want it; each well has its own power light.
- Ships with 6 ft cord and NEMA 6-20P plug – no hard-wiring required.
- Zero-clearance installation; mounting clips supplied for counters up to 3 in thick.
- UL, CUL & NSF 4 listed • Made in the USA.
Technical Specifications
| Item number | 3664820HD |
|---|---|
| Wells / capacity | 3 full-size 20 × 12 in wells, 8 in deep – accepts pans up to 6 in deep (fractional pans with adapter bars, sold separately) |
| Controls | Thermostatic dial for each well |
| Total wattage | 3000 W (1000 W × 3) |
| Electrical | 208–240 V / 60 Hz / 1-phase, 10.8–12.5 A, NEMA 6-20P |
| Overall dimensions | 66 7⁄8 in L × 18 in W |
| Counter cut-out | 66 1⁄16 in L × 17 1⁄4 in W, 7⁄8 in corner radius |
| Well opening | 20 × 12 in |
| Construction | 316 marine-grade stainless wells, stainless exterior housing |
| Insulation | Polyurethane foam, all sides |
| Drain | 1 in copper manifold with master shut-off + ½ in individual ball valves |
| Installation | Top-mount; zero clearance |
| Agency approvals | UL, CUL, NSF 4 |
| Country of origin | USA |
Unit meets NSF 4 hot-holding performance only when operated with water in the wells.
Important: Orders for drop-ins cannot be canceled or returned.
See the full warranty policy at vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, UL, Made in USA
Height
21.5in
Width
66.88in
Depth
18.0in
Shipping Weight
151.0lbs
Insulated or Non-Insulated
insulated
Style
individual pans
Pan Capacity
(3) full size (12" x 20")
Drain
with drain
Controls
thermostatic controls
Wet or Dry operation
wet
Construction
stainless steel construction
Specifications
Short Sided Hot Well, Drop-In, (3) pan, thermostatic controls, manifold drain, 3000 watts, 208-240v/60/1-ph, 10.8-12.5A, NEMA 6-20P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 66-7/8" x 18", cutout dimensions 66-1/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
