Vollrath 3664820 Steam Tables & Food Wells

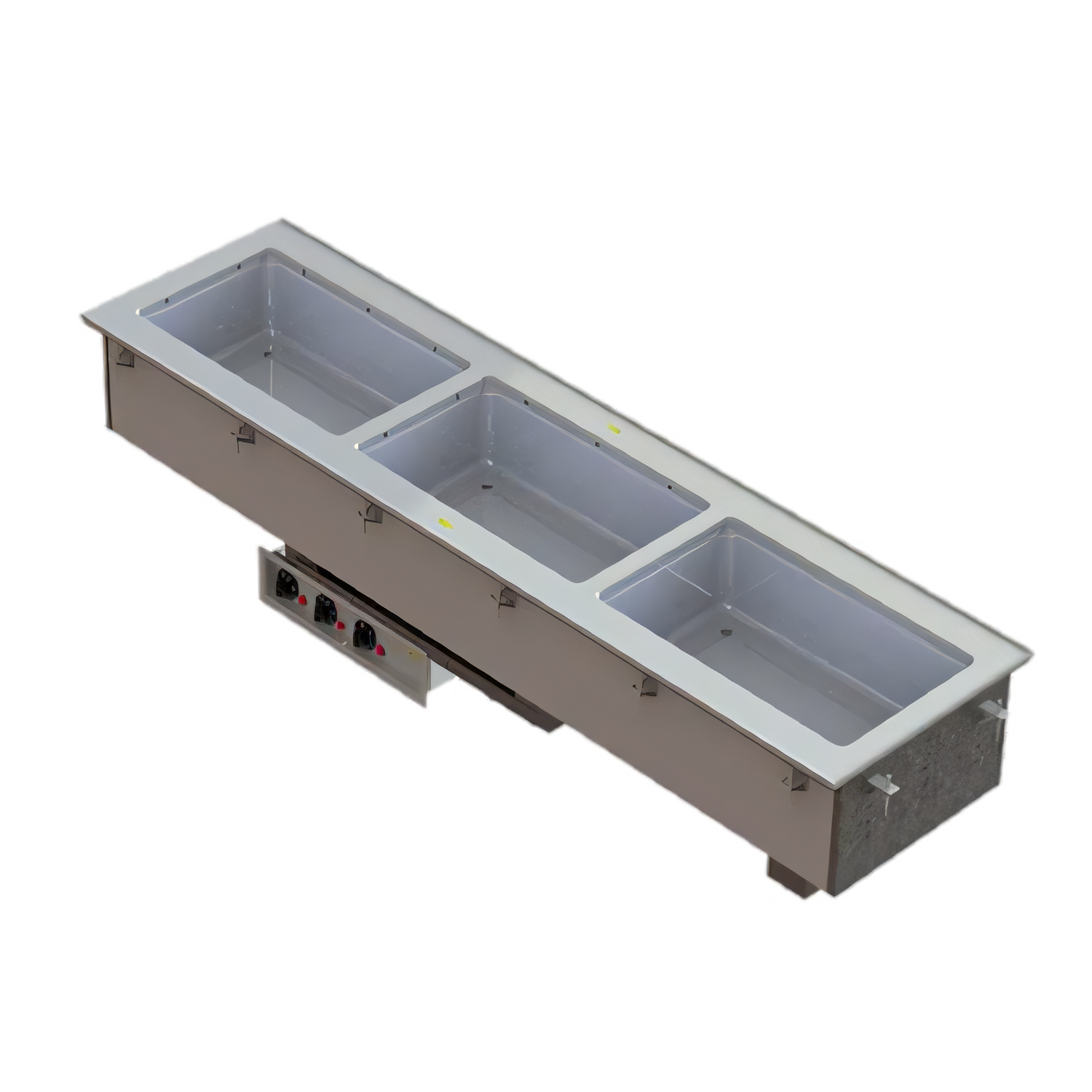

Vollrath Short Side Hot Drop-In – 3 Pan, Thermostatic, Manifold Drain

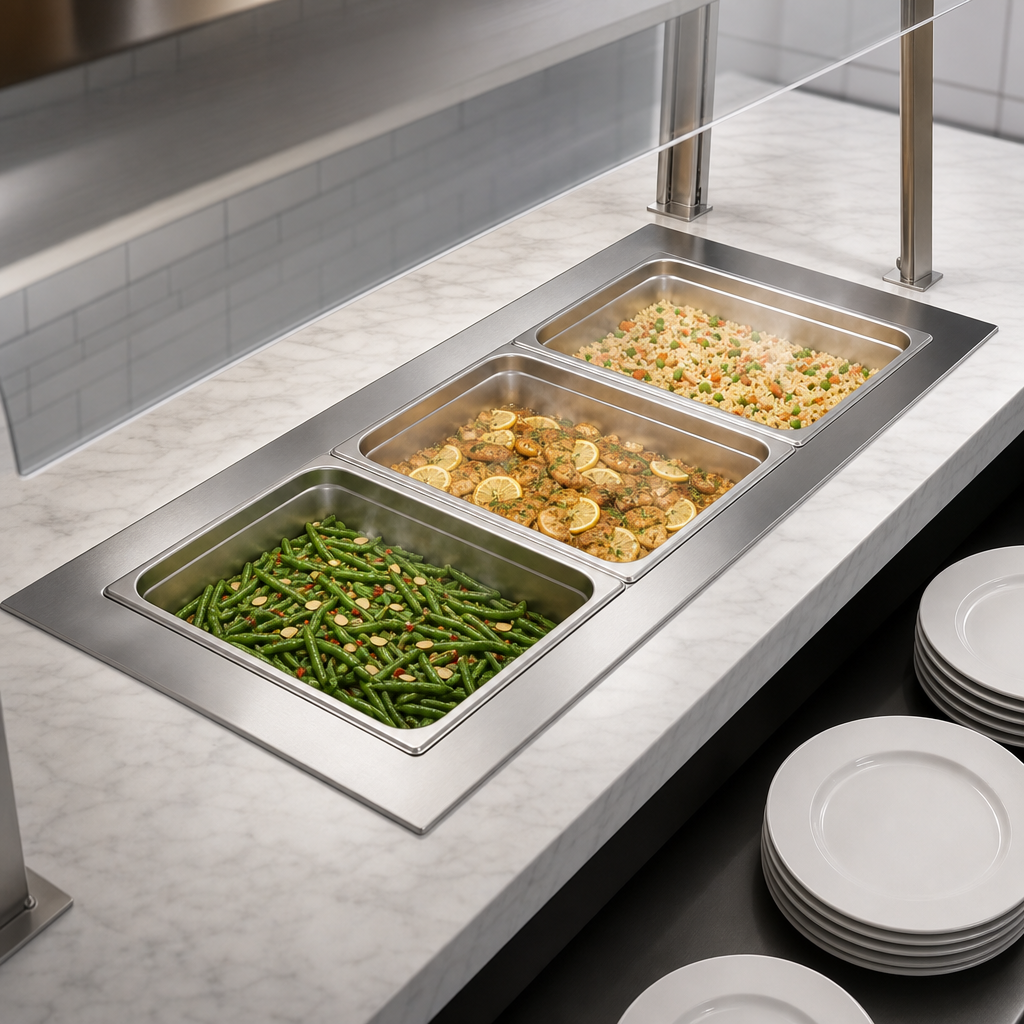

Turn full-size pans sideways to save counter depth and pull food within easy reach. This three-well Short Side Hot Drop-In delivers the performance you expect from Vollrath in a slim 18-inch presentation that installs without hard-wiring.

Key Features & Benefits

• Three independent 1000-watt wells with precise thermostatic controls for steady holding temperatures.
• 1 inch copper manifold drain with master shut-off and included drain plug for quick, mess-free water removal.
• 18/8 (300-series) stainless-steel top flange and drawn wells resist corrosion and clean easily.
• Thick polyurethane foam insulation on every non-exposed surface—including between wells—maximizes energy efficiency.
• Full-perimeter drip edge and included gasket protect countertop surfaces from condensation.
• 6 ft (1.8 m) cord with NEMA 6-20P plug; simply drop in and plug in—no electrician required.
• Remote stainless-steel control panel (4 ft/121.9 cm tether) with individual power lights for flexible mounting.
• Accepts full-size or fractional pans up to 6 in (15.2 cm) deep; adapter bars available separately.
• Zero-clearance design with mounting clips for counters up to 3 in (7.6 cm) thick.
• UL, cUL, and NSF 4 listed; made in the USA.

For NSF 4 compliance, operate each well with water to ensure even heat distribution.

Dimensions & Capacity

Electrical

Certifications

• UL Listed
• cUL Listed
• NSF 4 Certified

Refer to the full warranty policy at vollrathfoodservice.com.
