Description

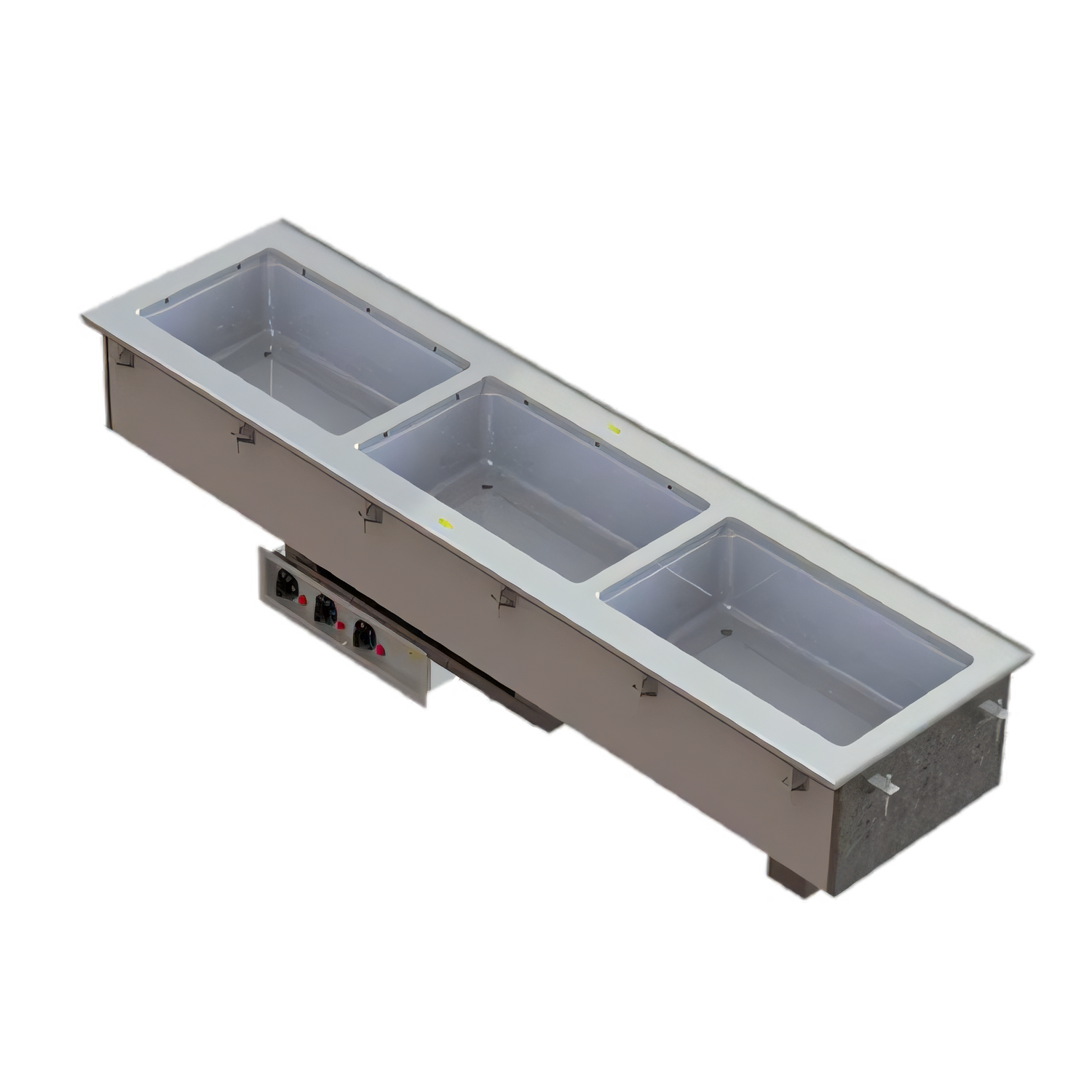

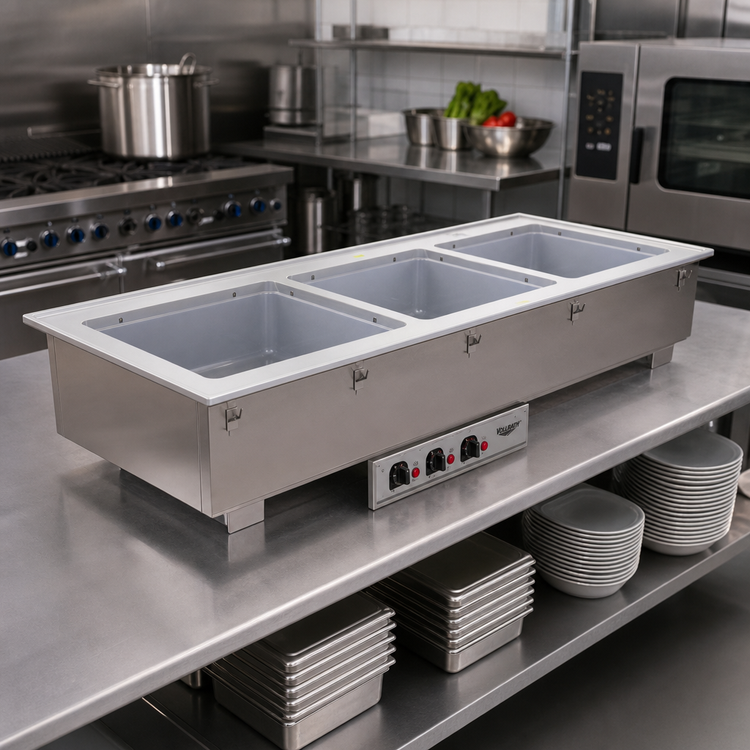

Vollrath Short Side Hot Well Drop-In, 3-Pan

Model 36648 | Thermostatic controls | Standard drains

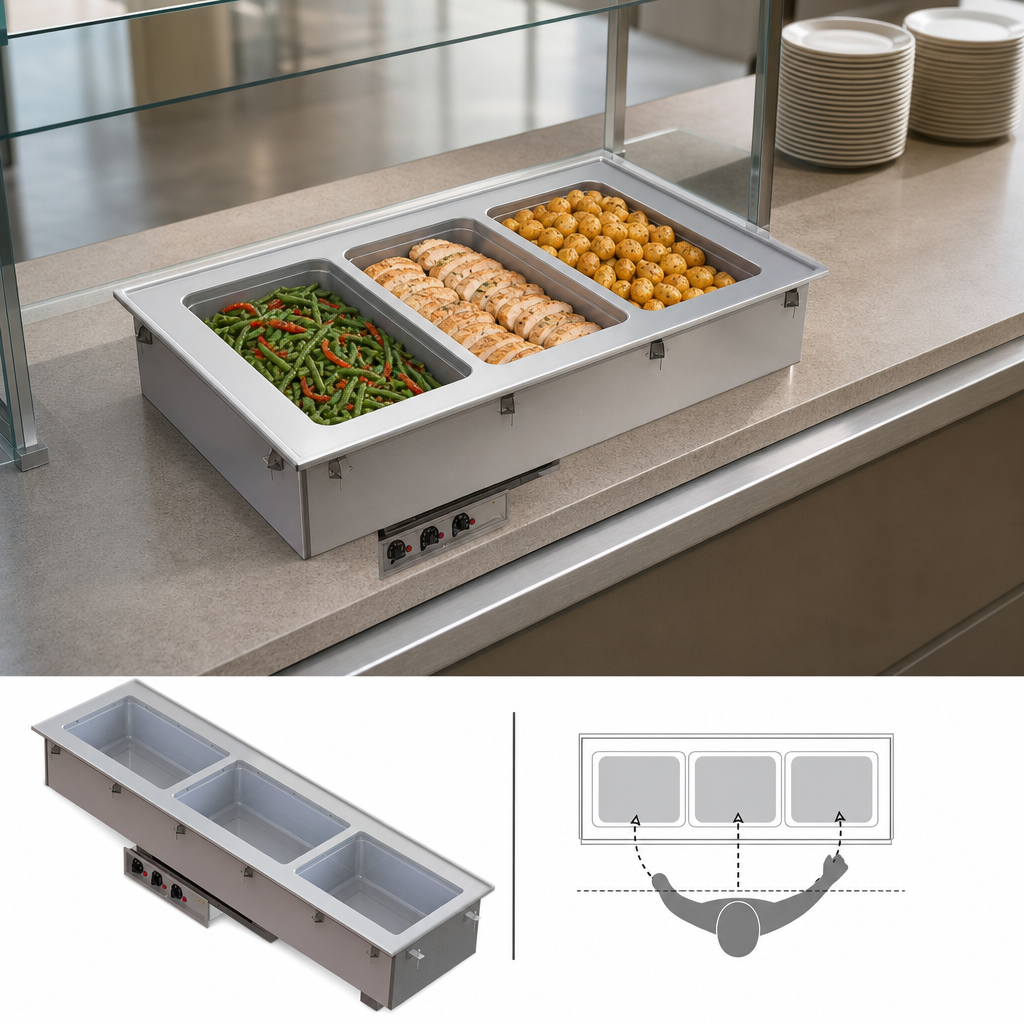

Bring full-size steam-table performance to narrow counter runs. The Vollrath 3-well Short Side Hot Drop-In turns your pans sideways, delivering a compact 18 inch depth that keeps hot food within easy reach while freeing valuable workspace.

Key Features & Benefits

  • Rotated design presents three full-size 20 × 12 in. pans in only 18 in. of counter depth.
  • 1000 W per well (3000 W total) with precise thermostatic controls for reliable holding temperatures.
  • Durable 18/8 (300 series) stainless-steel flange & drawn wells resist corrosion and clean up quickly.
  • Thick polyurethane foam insulation on all non-exposed sides & between wells increases energy efficiency.
  • Full-perimeter drip edge with included gasket keeps condensation off your countertop.
  • Standard ½ in. drains with individual ball valves; drain plug supplied.
  • Zero-clearance, top-mount installation – no hard-wiring required thanks to the 6 ft cord & NEMA 6-20P plug.
  • Stainless-steel remote control panel (4 ft tether) with individual power lights for each well.
  • Accepts full-size or fractional pans up to 6 in. deep (adapter bars recommended for fractional pans).
  • UL, CUL & NSF listed and proudly Made in the USA.

Technical Specifications

Wells 3 (side-by-side, rotated)
Heat requirement Wet operation (water required for even heating)
Total wattage 3000 W (1000 W per well)
Electrical 208-240 V / 60 Hz / 1-phase, 10.8-12.5 A, NEMA 6-20P
Overall dimensions (W × D) 66 7⁄8 in. × 18 in. (169.8 × 45.7 cm)
Cutout dimensions 66 1⁄16 in. × 17 1⁄4 in. (167.9 × 43.9 cm)
Corner radius 7⁄8 in. (2.2 cm)
Well size (each) 20 × 12 in., 8 in. deep (50.8 × 30.5 × 20.3 cm)
Drain ½ in. ball valve per well; plug included
Construction 18/8 stainless steel with polyurethane foam insulation
Certification UL, CUL, NSF
Country of origin United States
Important: This drop-in meets NSF 4 performance standards only when operated with water in each well. Orders for drop-ins cannot be canceled or returned once placed.

Backed by Vollrath’s standard commercial warranty. See full policy at  vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

15.0in

Width

66.88in

Depth

18.0in

Shipping Weight

165.0lbs

Style

individual pans

Construction

stainless steel construction

Insulated or Non-Insulated

insulated

Controls

thermostatic controls

Wet or Dry operation

wet

Pan Capacity

(3) full size (12" x 20")

Drain

with drain

Specifications

Short Sided Hot Well, Drop-In, (3) pan, thermostatic controls, standard drains, 3000 watts, 208-240v/60/1-ph, 10.8-12.5A, NEMA 6-20P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 66-7/8" x 18", cutout dimensions 66-1/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
