Vollrath  |  SKU: 36647HD

Vollrath 36647HD Steam Tables & Food Wells

$2,364.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Vollrath Short-Side 2-Well Drop-In Hot Food Well – Marine-Grade

Model 36647HD • Infinite controls • Standard drains • 208-240 V

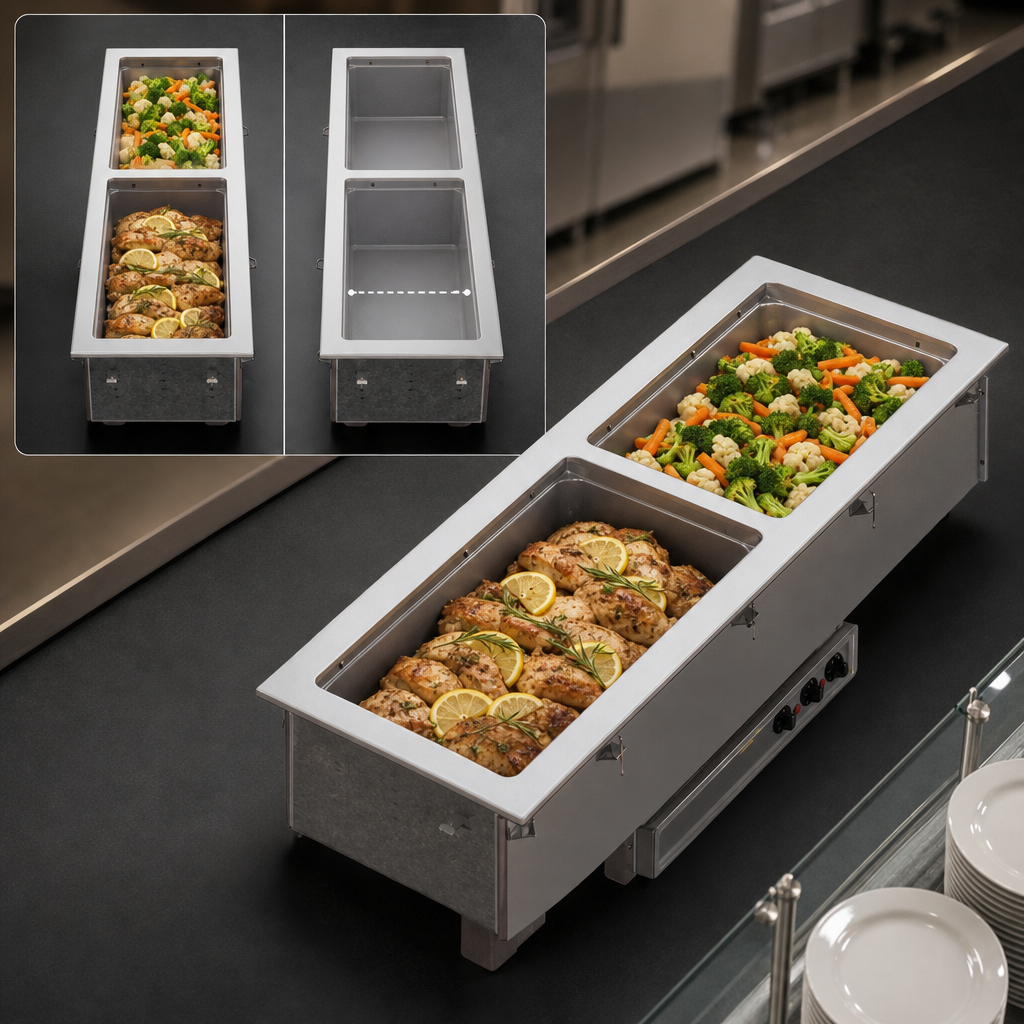

Designed for tight counter depths and faster pan access, Vollrath’s short-side hot well rotates two full-size pans sideways to create a slimmer 18 in. footprint without sacrificing capacity. The marine-grade 316 stainless steel well shrugs off acidic, salty and high-moisture foods, while 2 kW of gentle wet-well heat keeps entrées food-safe and service-ready.

Why you’ll love it

  • Space-saving 18 in. depth brings food 8 in. closer to customers and staff.
  • Drawn 18-gauge / 316 marine-grade stainless steel well resists pitting and corrosion.
  • Individual infinite controls & indicator lights on a 4 ft tethered panel – mount where it’s easiest to reach.
  • 1 ⁄ 2 in. standard drains with ball valves + included drain plug for fast daily clean-up.
  • Full-perimeter drip edge keeps condensation off your countertop.
  • Thick polyurethane foam insulation on every side (and between wells) maximises energy efficiency.
  • Ships with 6 ft cord & NEMA 6-15P plug – no hard-wiring required.
  • UL, cUL & NSF listed; Made in the USA.
  • HD series comes with a two-year parts & labour warranty.

Technical specifications

Capacity 2 full-size 12 × 20 in. pans  |  Accepts fractional pans with adapter bars
Well size (each) 20 × 12 in.  |  8 in. deep
Total wattage 2000 W  (1000 W per well)
Voltage / phase 208-240 V / 60 Hz / 1-ph
Amps 7.2 – 8.3 A
Plug NEMA 6-15P (factory installed, 6 ft cord)
Controls Two individual infinite heat dials with power lights
Overall dimensions 45 1⁄2 in. W × 18 in. D
Counter cut-out 44 11⁄16 in. W × 17 1⁄4 in. D  |  7⁄8 in. corner radius
Construction 316 stainless well • 304 stainless exterior housing • Polyurethane insulation
Certifications UL • cUL • NSF
Origin Made in the USA

Installation & operation

  • Zero-clearance design drops into counters up to 3 in. thick (mounting clips included).
  • For NSF 4 performance, operate with water to create moist steam heat.
  • Indoor use only – ambient room temperature & HVAC can affect holding temperatures.
  • Adapter bars (sold separately) recommended when using fractional pans.
Important: Vollrath drop-ins are built to order and cannot be cancelled or returned. Refer to vollrathfoodservice.com for complete warranty details.

This unit is intended for holding pre-heated food only – not for re-thermalising refrigerated or frozen product.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

15.0in

Width

45.44in

Depth

18.0in

Shipping Weight

100.0lbs

Insulated or Non-Insulated

insulated

Controls

infinite controls

Style

individual pans

Construction

stainless steel construction

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (2) pan, infinite controls, standard drains, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, NEMA 6-15P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
