Vollrath 3664730HD Steam Tables & Food Wells
Description
Vollrath Short-Side Drop-In Hot Well – 2-Pan, Marine-Grade
Model 3664730HD | Auto-Fill Manifold Drain | Infinite ControlsGive your serving line a slimmer profile without sacrificing capacity. This 2-well Short-Side Hot Drop-In from Vollrath rotates full-size pans sideways for an easy-reach 18 inch counter depth, delivers consistent moist heat, and refills itself automatically—all while standing up to the toughest kitchen environments with Type-316 marine-grade stainless steel.
Key advantages

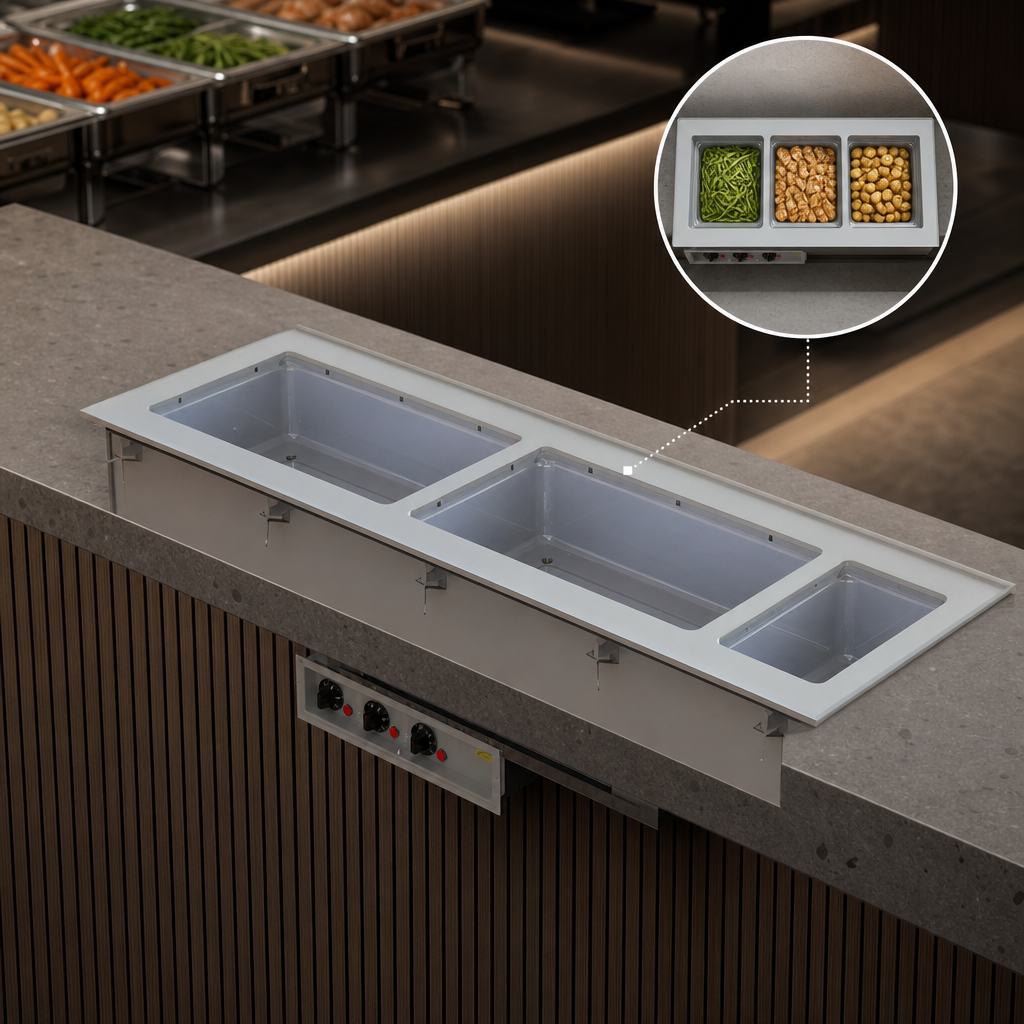

- Space-saving orientation turns 12 × 20" pans sideways for a narrow, ergonomic presentation.
- Auto-fill system maintains water level—no manual refilling or temperature swings.
- 18-gauge, Type-316 marine-grade stainless-steel wells resist corrosion from salt, sauces, and steam.
- Full-perimeter drip edge plus thick polyurethane insulation keeps counters dry and energy in.
- Plug-and-play NEMA 6-15P cord; no hard-wiring required.
- UL, cUL, NSF listed and proudly Made in the USA.
Built for performance
- (2) independent infinite controls with power-on lights—dial in each well separately.
- 1000 watts per well (2000 W total) for rapid preheat and dependable holding.
- 1" copper manifold drain with master shut-off and ½" ball valves per well; drain plug included.
- Removable bottom service panels speed maintenance without removing the drop-in.
- Accepts full-size or fractional pans up to 6" deep; adapter bars recommended for fractional sizes.
Technical specifications
| Capacity | (2) full-size 12 × 20" pans, up to 6" deep |
|---|---|
| Control type | Infinite manual dial, individual per well |
| Heating power | 1000 W per well (2000 W total) |
| Electrical | 208-240 V / 60 Hz / 1-phase, 7.2 – 8.3 A |
| Plug | NEMA 6-15P, 6 ft (1.8 m) cord |
| Auto-fill | Factory-installed, plumb-ready |
| Well interior | 20 × 12 in (50.8 × 30.5 cm), 8 in (20.3 cm) deep |
| Overall dimensions | 45 ½ × 18 in (115.6 × 45.7 cm) |
| Counter cut-out | 44 11⁄16 × 17 ¼ in, 7⁄8 in radius corners |
| Construction | Type-316 marine-grade well; stainless exterior housing |
| Certifications | UL, cUL, NSF |
| Origin | Made in USA |
What’s in the box
- Drop-in hot well assembly with auto-fill manifold drain
- Remote stainless-steel control panel (4 ft tether) & mounting hardware
- Counter gasket & standard mounting clips (fits tops up to 3")
- Drain plug and master shut-off valve
- Installation & operation manual
Need a sheet-pan adapter? Order Vollrath item 19186 (sold separately).
Warranty & support
Covered by Vollrath’s two-year parts & labor warranty. Full policy available at VollrathFoodservice.com.
