Vollrath 3664730 Steam Tables & Food Wells
Description
Vollrath Short Side Hot Drop-In – 2-Pan, Infinite Controls, Auto-Fill Manifold Drain
Model 3664730 • 1000 W per well • 208-240 V • NEMA 6-15PEngineered for tight counter layouts, this Vollrath Short Side Hot Drop-In rotates two full-size steam-table pans sideways, providing a slim 18-inch (45.7 cm) front-to-back footprint while keeping food within easy reach. A factory-installed auto-fill system maintains the correct water level for consistent, even heat, and independent infinite controls give you precise command of each well. Built, tested and certified in the USA, Model 3664730 is the reliable, space-saving solution for buffets, cafeteria lines and kiosks that can’t spare an inch of depth.

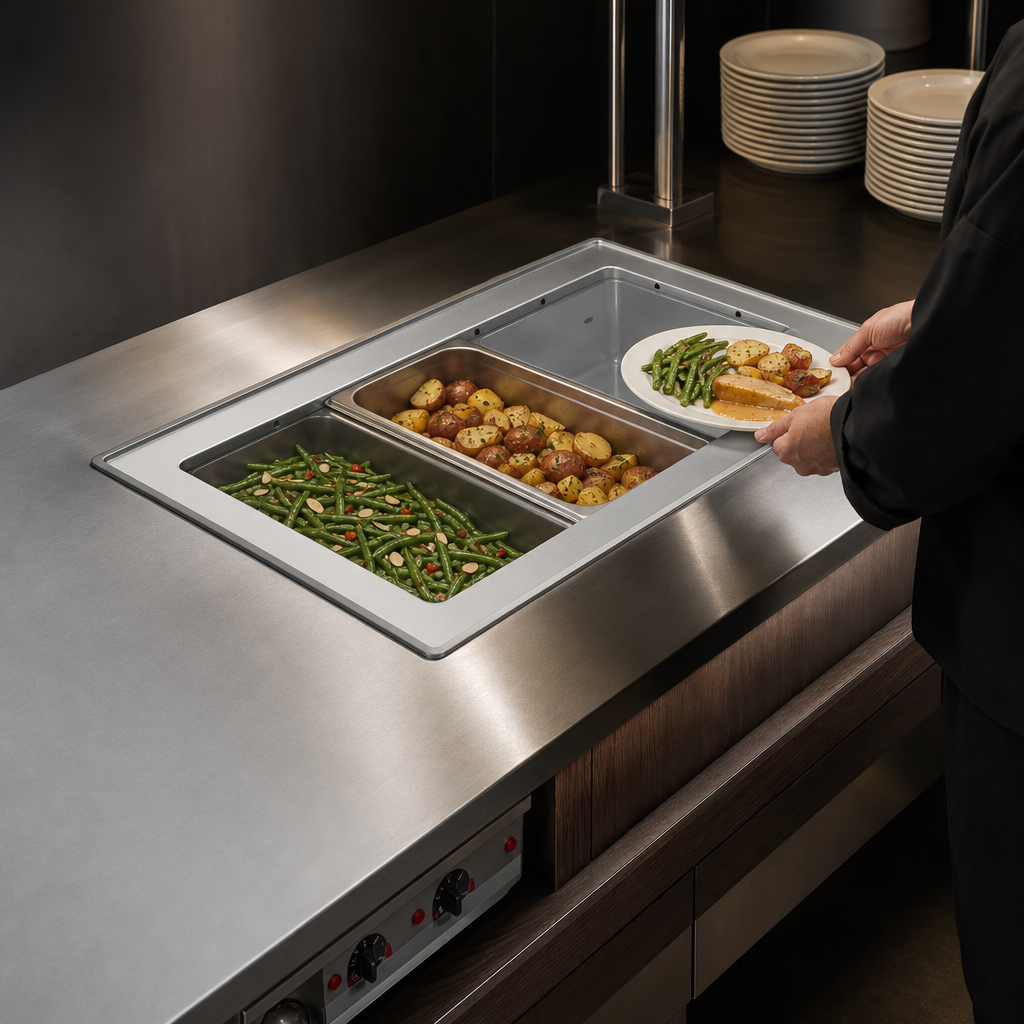

Key Features- Side-turned configuration accepts two 12 × 20 in (1/1 GN) pans for a narrow presentation.
- 1000 W heating element in each well (2000 W total) with thick polyurethane insulation for high efficiency.
- Auto-fill system with 1 in (2.5 cm) copper manifold drain and master shut-off—no more manual refilling.
- Independent infinite controls and power indicators in a stainless-steel remote panel (4 ft / 121.9 cm tether for flexible mounting).
- 18/8 (300 series) stainless-steel top flange, drawn wells and full-perimeter drip edge; gasket included to seal against the counter.
- Ships ready to plug in—6 ft (1.8 m) cord with NEMA 6-15P straight-blade plug; no hard-wiring required.
- Zero-clearance installation; mounting clips supplied for counters up to 3 in (7.6 cm) thick.
- UL, cUL and NSF4 listed; Made in USA.
| Capacity | 2 full-size (12″ × 20″) pans, up to 6″ deep |
|---|---|
| Controls | Per-well infinite (manual) temperature dials |
| Total Power | 2000 W (1000 W per well) |
| Electrical | 208-240 V, 60 Hz, 1-phase, 7.2 – 8.3 A |
| Plug | NEMA 6-15P, 6 ft (1.8 m) cord |
| Water Connection | Auto-fill requires ¼″ NPT incoming water (field connection) |
| Drain | 1″ copper manifold with master shut-off; drain plug included |
| Overall Dimensions | 45 ½″ L × 18″ W × ≈8 ½″ H* |
| Cutout Dimensions | 44 11⁄16″ L × 17 ¼″ W • 7⁄8″ corner radius |
| Well Interior | 20″ L × 12″ W × 8″ D (each well) |
| Construction | 18/8 stainless steel wells & flange, foam-insulated on all sides |
| Certifications | UL, cUL, NSF4 |
| Country of Origin | USA |
| Warranty | 1-year limited; see vollrathfoodservice.com for details |
*Manifold drain adds 6 ½″ (16.5 cm) to overall height.
