Vollrath  |  SKU: 3664720HD

Vollrath 3664720HD Steam Tables & Food Wells

$2,489.95
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

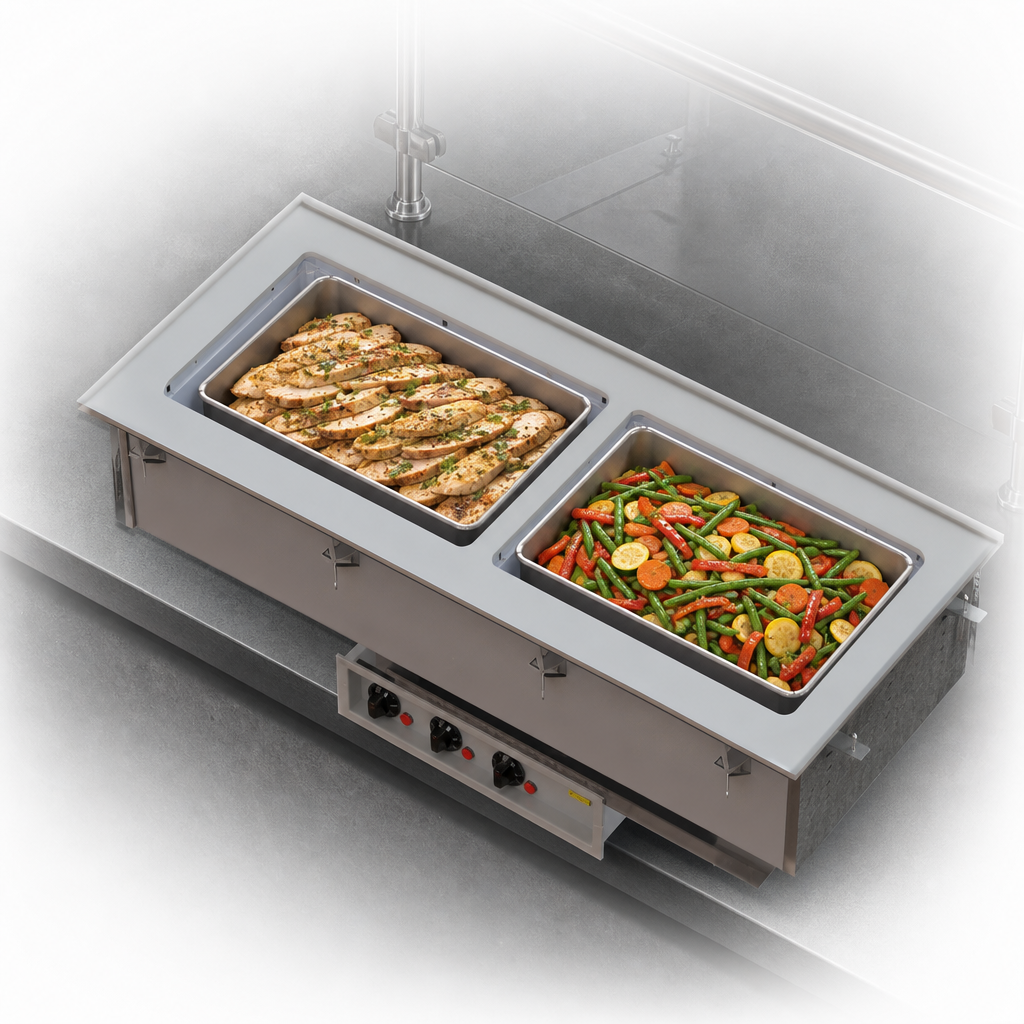

Vollrath Short-Side Modular Drop-In Hot Well – 2-Pan, Infinite Controls, Marine-Grade

Model 3664720HD • Manifold Drain • 208-240 V

Slim on space, big on performance. This Vollrath short-side drop-in rotates full-size pans sideways, trimming your counter depth to just 18 inches while keeping hot food within easy reach. Built from corrosion-proof 316 stainless and completely insulated, it delivers dependable, energy-efficient holding for buffets, kiosks and any tight-fitting serving line.

Key Features

  • Marine-grade 18-gauge 316 stainless steel well top for superior corrosion resistance.
  • Rotated wells present pans length-wise, giving you a narrow footprint and ergonomic access.
  • Independent infinite controls with indicator lights for precise temperature management per well.
  • 1000 W per well (2000 W total) heats quickly and evenly when operated with water.
  • 1" copper manifold drain with master shut-off and ½" ball valves on each well; drain plug included.
  • Full-perimeter drip edge with included gasket keeps surrounding counters dry.
  • High-density polyurethane foam insulation on all sides and between wells maximises efficiency.
  • Remote stainless steel control panel on a 4 ft (1.2 m) tether for flexible mounting.
  • Zero-clearance, drop-in installation—mounting clips for counters up to 3" (7.6 cm) thick included.
  • Accepts full-size (20" × 12") or fractional pans up to 6" deep; well depth is 8" for optimal water capacity.
  • UL, CUL and NSF listed; proudly made in the USA.

Specifications

Capacity 2 full-size pans, turned short-side front
Controls Infinite (manual), independent per well
Heat Output 1000 W per well / 2000 W total
Electrical 208-240 V, 60 Hz, 1-ph, 7.2 – 8.3 A, NEMA 6-15P (6 ft cord)
Overall Dimensions (W × D) 45-1/2" × 18" (115.6 × 45.7 cm)
Counter Cut-Out (W × D) 44-11/16" × 17-1/4" (113.5 × 43.8 cm)  • 7/8" corner radius
Well Dimensions (each) 20" × 12" × 8" deep (50.8 × 30.5 × 20.3 cm)
Construction 316 stainless steel wells & top; stainless exterior housing
Insulation Thick polyurethane foam, all sides & between wells
Listings UL, CUL, NSF
Warranty 2-year parts & labour commercial warranty (see vollrathfoodservice.com for details)

Perfect For

  • Buffet and self-service lines needing a shallow countertop footprint
  • Food trucks, kiosks and convenience stores that pull product forward for merchandising
  • Back-of-house holding stations prior to plating or service
Important: Operate with water to create moist heat and meet NSF 4 performance standards. This unit is designed for holding pre-heated foods and is not intended for rethermalizing. Drop-ins are built to order and cannot be cancelled or returned.

Need sheet-pan adapters? See Vollrath item 19186.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

21.5in

Width

45.44in

Depth

18.0in

Shipping Weight

100.0lbs

Construction

stainless steel construction

Controls

infinite controls

Style

individual pans

Insulated or Non-Insulated

insulated

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (2) pan, infinite controls, manifold drain, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, NEMA 6-15P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
