Vollrath 3664720 Steam Tables & Food Wells
$2,177.05
Unit price
/
Unavailable
Description
Vollrath Short-Side 2-Well Hot Drop-In Model 3664720 | Manifold Drain | Infinite Controls

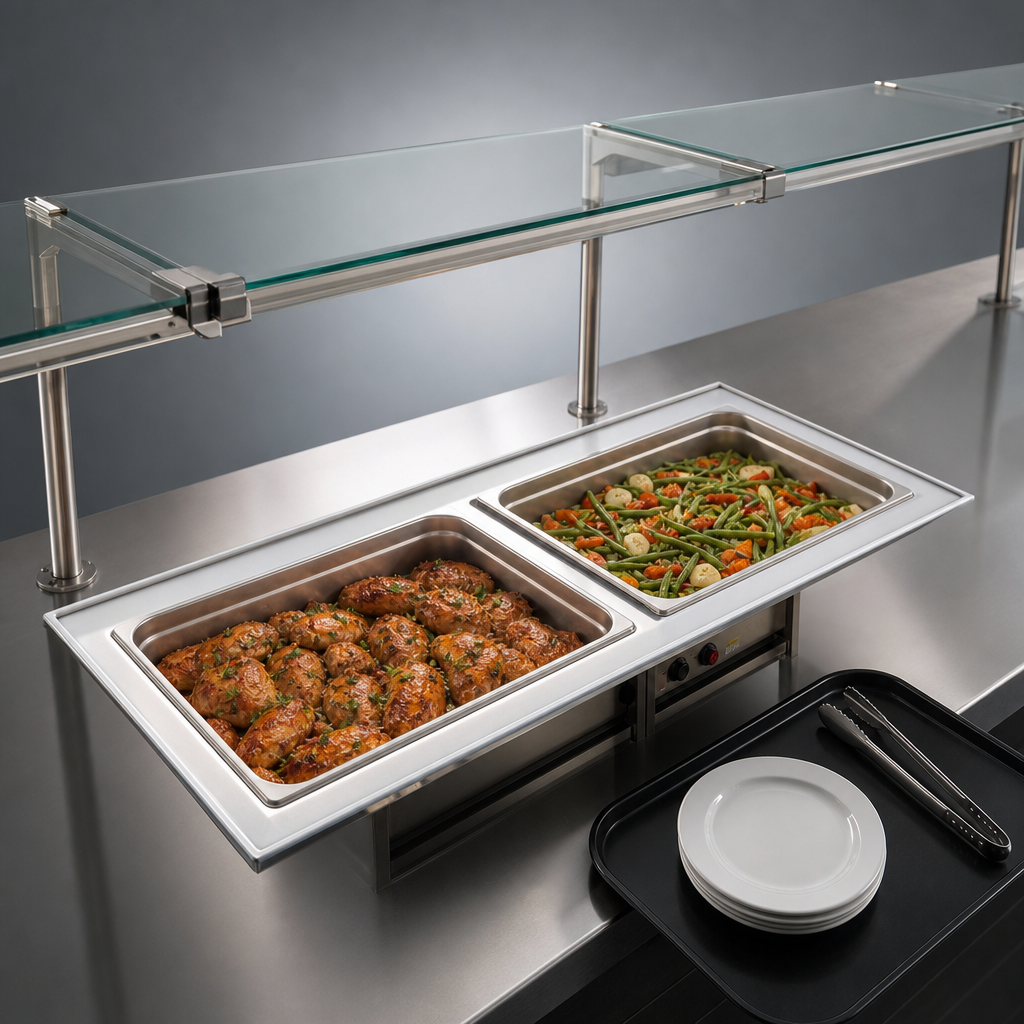

Give your serving line a slimmer profile without sacrificing capacity. Vollrath’s patented Short-Side Hot Drop-In rotates full-size pans sideways, trimming counter depth to just 18 inches and keeping food within easy reach of guests and staff.
Why you’ll love it
- Narrow 18 in. footprint—perfect for tight counters or pull-forward service lines.
- Two 1000 W wells (2000 W total) deliver fast, even steam heating.
- Infinite dial controls with individual power lights for precise holding.
- 1 in. copper manifold drain with master shut-off simplifies daily cleanup; drain plug included.
- 18/8 (300-series) stainless steel flange & well with full-perimeter drip edge to keep counters dry.
- Thick polyurethane foam insulation on all non-exposed sides and between wells boosts efficiency.
- 6 ft factory-installed cord with NEMA 6-15P—no hard-wiring required.
- Remote stainless control panel on 4 ft tether for flexible mounting.
- Accepts full-size or fractional pans up to 6 in. deep (adapter bars recommended for fractional).
- Made in the USA; UL, cULus, and NSF listed.
Ideal for
- Front-of-house carving stations & buffets
- C-stores & cafés with limited counter depth
- Action stations where operators pull product forward
- Any operation wanting a clean, drop-in look without custom fabrication
Technical specifications
| Wells / Capacity | 2 full-size pans turned sideways |
|---|---|
| Total Wattage | 2000 W (1000 W per well) |
| Voltage & Phase | 208-240 V | 60 Hz | 1-ph |
| Amperage | 7.2 – 8.3 A |
| Plug Type | NEMA 6-15P (6 ft cord) |
| Controls | Infinite (manual) dial, one per well |
| Drain System | 1 in. copper manifold with master shut-off & individual ½ in. ball valves |
| Overall Dimensions | 45½ in. L × 18 in. W |
| Counter Cut-Out | 44 11⁄16 in. L × 17 ¼ in. W | ⅞ in. corner radius |
| Individual Well Size | 20 in. L × 12 in. W × 8 in. D |
| Material | 18/8 stainless steel well & flange, polyurethane insulated |
| Agency Approvals | UL, cULus, NSF |
| Country of Origin | USA |
Important: This unit meets NSF 4 performance standards only when operated with water
(moist heat).
Drop-ins are built to order and cannot be canceled or returned.
Drop-ins are built to order and cannot be canceled or returned.
For complete warranty details, visit vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, UL, Made in USA
Height
21.5in
Width
45.44in
Depth
18.0in
Shipping Weight
100.0lbs
Controls
infinite controls
Style
individual pans
Construction
stainless steel construction
Insulated or Non-Insulated
insulated
Drain
with drain
Pan Capacity
(2) full size (12" x 20")
Wet or Dry operation
wet
Specifications
Short Sided Hot Well, Drop-In, (2) pan, infinite controls, manifold drain, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, NEMA 6-15P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
