Vollrath  |  SKU: 36647

Vollrath 36647 Steam Tables & Food Wells

$2,055.55
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

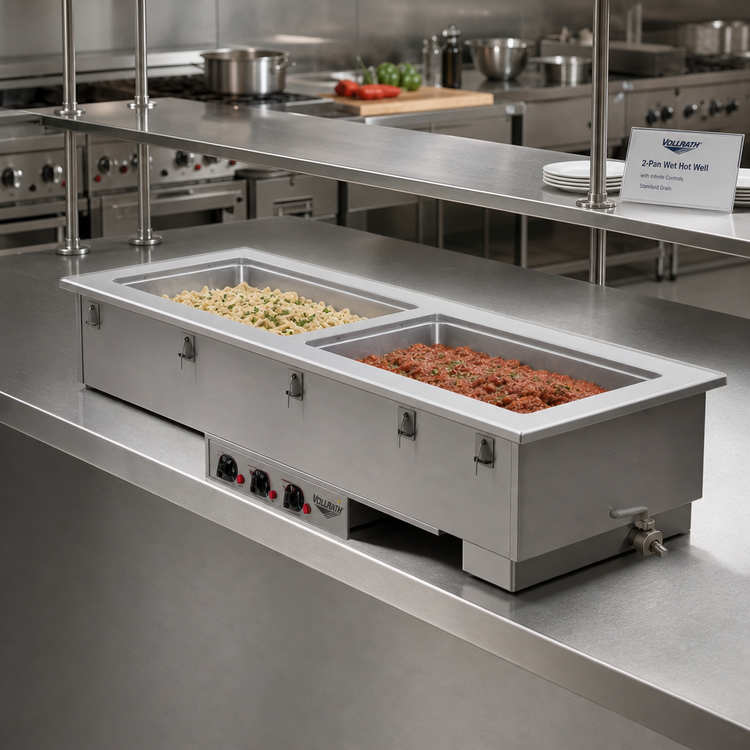

Vollrath Short Side Hot Drop-In — 2-Pan, Infinite Control (Model 36647)

Slim 18 in depth • 208-240 V • NEMA 6-15P plug-in hot well

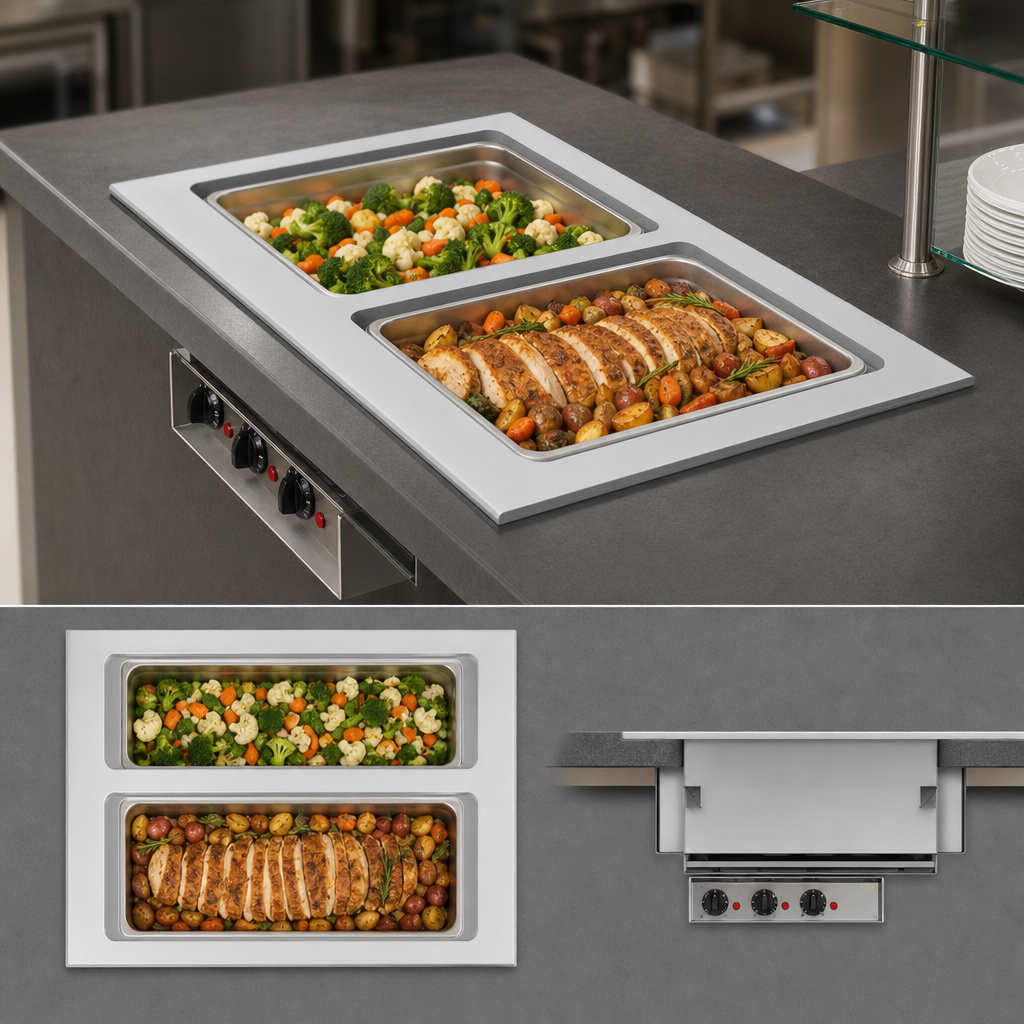

Give guests hot, fresh food without crowding your serving line. Vollrath’s Short Side Hot Drop-In rotates two full-size pans sideways, delivering a narrow 18-inch footprint that’s perfect for buffet counters, kiosks or tight back-of-house spaces.

Key benefits

  • Space-saving orientation keeps food within easy reach while freeing up front-to-back counter space.
  • 18/8 (300-series) stainless-steel top flange & drawn wells handle daily commercial abuse and resist corrosion.
  • Individual infinite-switch controls with power indicators give you precise hold temps for each well.
  • Thick polyurethane foam insulation on every non-exposed side — including between wells — boosts energy efficiency.
  • Full-perimeter drip edge with factory gasket stops condensation before it reaches your counter.
  • Standard ½ in drains with ball valves plus supplied drain plugs make end-of-shift clean-up fast.
  • 6 ft factory-wired cord and NEMA 6-15P plug — no hard-wiring required; zero-clearance installation.
  • Remote stainless control panel on a 4 ft tether for flexible mounting locations.
  • Accepts full-size or fractional pans up to 6 in deep (use adapter bars for fractional sizes).
  • UL, CUL & NSF listed — proudly made in Sheboygan, Wisconsin, USA.

Technical specifications

Pan capacity 2 full-size (12 in × 20 in) pans, sideways
Heat style Wet-operation hot well (water bath required)
Controls Infinite switch — one per well
Total wattage 2,000 W (1,000 W × 2)
Electrical 208-240 V / 60 Hz / 1-ph, 7.2–8.3 A
Plug NEMA 6-15P, 6 ft cord
Overall dimensions (W × D) 45 ½ in × 18 in
Counter cut-out (W × D) 44 11⁄16 in × 17 ¼ in • 7⁄8 in corner radius
Well interior (each) 20 in × 12 in × 8 in deep
Construction 18/8 stainless steel with polyurethane foam insulation
Drain ½ in individual ball-valve drains, plugs included
Certifications UL, CUL, NSF
Origin Made in USA
Important: Operate with water in the wells to meet NSF 4 performance standards and ensure even heating. Drop-in units are built-to-order and cannot be canceled or returned.

For full installation instructions and warranty details, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

15.0in

Width

45.44in

Depth

18.0in

Shipping Weight

100.0lbs

Controls

infinite controls

Style

individual pans

Construction

stainless steel construction

Insulated or Non-Insulated

insulated

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (2) pan, infinite controls, standard drains, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, NEMA 6-15P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
