Description

Vollrath HD Short-Side 2-Pan Modular Hot Well Drop-In

Model 3664620HD  |  Marine-Grade • Thermostatic • Manifold Drain

Perfect for narrow buffets and cook-serve lines, this Vollrath Short-Side Hot Drop-In turns two full-size pans sideways so food is always within easy reach. Heavy-duty 316 stainless steel, individual thermostatic controls and a 1 inch manifold drain make daily operation simple, sanitary and dependable.

Key features

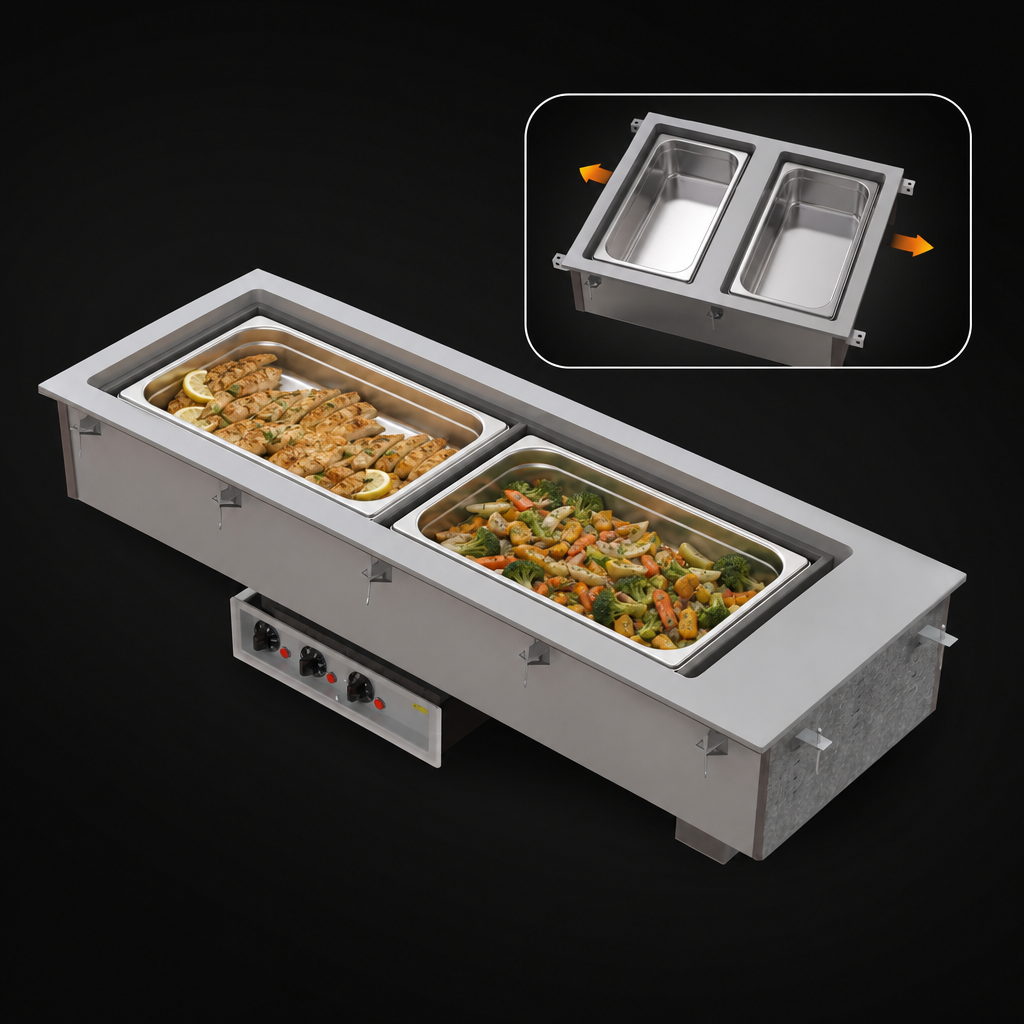

  • Side-rotated wells create an 18 inch depth for tight counter spaces and better guest access.
  • Drawn wells and 18 ga top are 316 marine-grade stainless steel for maximum corrosion resistance.
  • Remote stainless steel control panel (4 ft tether) with individual thermostatic dials and power lights.
  • 1″ copper manifold drain with master shut-off; ½″ plug supplied for quick water removal.
  • Full-perimeter drip edge plus included gasket keep counters dry.
  • Thick polyurethane foam insulation on all sides, including between wells, boosts efficiency.
  • Zero-clearance installation; mounting clips for counters up to 3″ thick included.
  • 6′ cord with NEMA 6-15P plug—no hard-wiring required.
  • UL, CUL and NSF listed; Made in the USA and backed by a 2-year limited warranty.
Specifications
Capacity 2 full-size steam table pans (sideways)  •  accepts fractional pans with adapter bars
Controls Individual thermostatic controls on remote panel with power indicators
Heating requirement Wet operation (water) required for even, NSF-compliant holding
Electrical 208-240 V / 60 Hz / 1-ph  •  2000 W  •  7.2 – 8.3 A  •  NEMA 6-15P
Drain 1″ copper manifold drain with ball-valve shut-off; ½″ drain plug included
Well size (each) 20″ L × 12″ W  •  fits pans up to 6″ deep
Overall dimensions 45-1/2″ L × 18″ W
Counter cut-out 44-11/16″ L × 17-1/4″ W  •  7/8″ corner radius
Construction 316 stainless steel wells & top, stainless exterior housing, foam insulation
Certifications UL, CUL, NSF
Warranty 2-year limited warranty (refer to VollrathFoodservice.com for details)

Adapter bars are recommended when using fractional pans.

Important: Operation with water is required for safe, even heating. Orders for drop-ins cannot be canceled or returned.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, UL, Made in USA

Height

21.5in

Width

45.44in

Depth

18.0in

Shipping Weight

138.0lbs

Style

individual pans

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Short Sided Hot Well, Drop-In, (2) pan, thermostatic controls, manifold drain, 2000 watts, 208-240v/60/1-ph, 7.2-8.3 amps, NEMA 6-15P, turns full size pans sideways for more narrow presentation & easy reach, 18 gauge/316 marine grade stainless steel top, stainless steel exterior housing, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 45-1/2" x 18", cutout dimensions 44-11/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
